B&G, Lowrance, Simrad XSonic Airmar P319 600W 50-200 kHz Plastic Through Hull
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Manufacturer-backed extended cover provided by Navico — add up to 3 extra years.
Extended cover is added to your order and confirmed with your warranty documentation.
Description

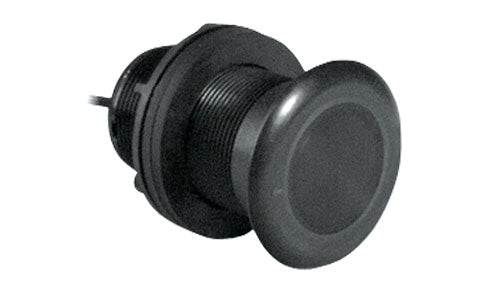

The P319 is a low-profile, plastic, 600 W, 50/200 kHz through-hull transducer providing depth and water temperature. Its low-profile design protrudes only about 5 mm below the hull to minimise drag while delivering the performance expected of a through-hull transducer. Suited to hulls with deadrise best through 7° and up to 12°, and supplied with a 10 m cable and 9-pin connector. Not for use with wood hulls.
PRODUCT DETAILS
- 600 W dual-frequency 50/200 kHz plastic through-hull transducer
- Low-profile housing protrudes only about 5 mm below the hull to reduce drag
- Provides depth and water temperature
- Suited to hulls with deadrise best through 7° (up to 12°)
- 51 mm (2 in) mounting hole; not for use with wood hulls
- 10 m cable with 9-pin connector for B&G, Lowrance and Simrad displays
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
B&G Zeus S-12 Ultrawide 12 Inch Display
B&G Zeus3S 9 MFD
Lowrance Elite FS 7 No Transducer
Lowrance Elite-7 Ti2 No Transducer
Lowrance Elite-9 Ti Fishfinder Chartplotter TotalScan N Europe C-Map
Lowrance HDS PRO 9. No Transducer
Lowrance HDS-7 Live No Transducer
S3100 Sonar Module
Simrad NSS 4 - 10" Chartplotter and Fishfinder
Simrad NSS9 EVO3S 9 Inch MFD
Simrad NSX 3009 9 Inch Touch Screen Display With 50/200 Khz HDI Transducer
B&G Zeus SR - 10" Chartplotter
Lowrance HDS-7 Carbon ROW with No Transducer
Lowrance HDS-7 Gen3 Multi -Touch Fishfinder Chartplotter no Transducer
Lowrance, Simrad, B&G SonarHub Sounder Module
Simrad NSS7 evo2 Combo 7-inch Multi-function Display
Simrad S2009 Dedicated 9-inch portrait display Fish Finder
Sonar
| Frequency | 50 / 200 kHz (dual frequency) |
| RMS Power | 600 W |
| Element Configuration | Single ceramic element |
Sensor
| Functions | Depth and water temperature |
Installation
| Housing Material | Plastic (low profile) |
| Hull Deadrise | Best through 7°; accommodates up to 12° |
| Hull Protrusion | Approximately 5 mm below the hull |
| Mounting Hole | 51 mm (2 in) diameter |
| Acoustic Window | Urethane |
| Connector | 9-pin |
| Cable Length | 10 m (33 ft) |
| Note | Not for use with wood hulls |
Physical
| Weight | 0.6 kg (1.3 lb) |
Application
| Recommended Boat Size | Up to 8 m (25 ft) |
Sonar Capability
| Traditional | Yes |
