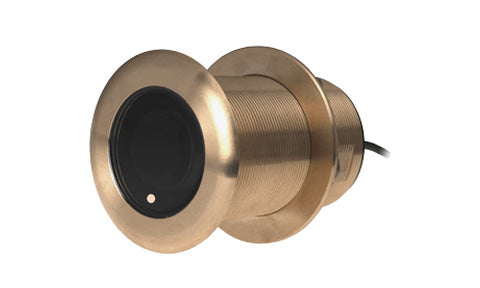

Lowrance, Simrad Airmar B75M 12 Degree Tilt Thru Hull Chirp 10m Cable
Description
The Airmar B75M is a 600 W Medium CHIRP thru-hull transducer offering a strong balance of depth and detail for coastal and offshore fishing. Its single broadband ceramic element sweeps 80 to 130 kHz, giving excellent target separation and bottom definition to a maximum of around 900 ft (274 m). The 24 to 16 degree beam covers a useful search area while keeping returns clean over varied bottom.
The compact bronze housing suits fibreglass and wood hulls, and this 12 degree version is matched to hulls with 8 to 15 degrees of deadrise so the element fires vertically. A built-in depth and water-temperature sensor is included. This version terminates in a legacy blue 7-pin connector on a 10 m cable; connection to current 9-pin XSonic Simrad and Lowrance displays uses the 000-13313-001 adapter cable.
PRODUCT DETAILS
- Medium CHIRP 80 to 130 kHz for coastal and mid-range fishing
- 600 W peak power with a 24 to 16 degree beam
- Bottom tracking to around 900 ft (274 m)
- Compact bronze thru-hull housing for fibreglass and wood hulls
- 12 degree element for hulls with 8 to 15 degrees deadrise
- Built-in depth and temperature sensor
- Blue 7-pin connector on a 10 m cable
No exploded diagram available for this product.
No compatible transducers listed for this product.
Lowrance HDS-7 Carbon ROW with No Transducer
Lowrance HDS-7 Gen3 Multi -Touch Fishfinder Chartplotter no Transducer
Lowrance, Simrad, B&G SonarHub Sounder Module
Simrad NSS7 evo2 Combo 7-inch Multi-function Display
Simrad S2009 Dedicated 9-inch portrait display Fish Finder
B&G Zeus S-12 Ultrawide 12 Inch Display
B&G Zeus SR - 10" Chartplotter
B&G Zeus3S 9 MFD
Lowrance Elite FS 7 No Transducer
Lowrance Elite-7 Ti2 No Transducer
Lowrance Elite-9 Ti Fishfinder Chartplotter TotalScan N Europe C-Map
Lowrance HDS PRO 9. No Transducer
Lowrance HDS-7 Live No Transducer
S3100 Sonar Module
Simrad NSS 4 - 10" Chartplotter and Fishfinder
Simrad NSS9 EVO3S 9 Inch MFD
Simrad NSX 3009 9 Inch Touch Screen Display With 50/200 Khz HDI Transducer
Simrad S5100 high-performance CHIRP sonar module
Sonar
| Type | Single-element Medium CHIRP thru-hull |
| Depth & temperature | Yes |
Frequencies
| CHIRP band | Medium CHIRP, 80 kHz to 130 kHz |
Beam
| Beamwidth | 24 to 16 degrees |
Power
| Peak power | 600 W |
| Maximum depth | 274 m (900 ft) |
Connector
| Connector | Blue 7-pin |
Cable
| Cable length | 10 m (33 ft) |
Physical
| Housing | Bronze thru-hull |
| Element tilt | 12 degrees |
| Hull deadrise | 8 to 15 degrees |
| Hull material | Fibreglass or wood |
