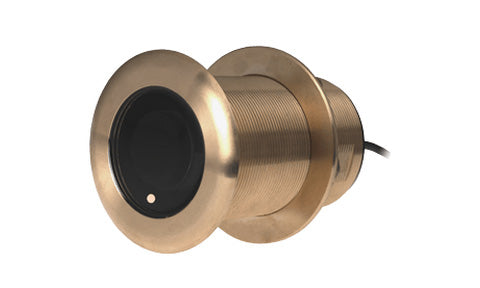

Navico Airmar B75H 20 Degree Tilt Bronze Thru Hull Chirp 10m Cable
Description
The Airmar B75H is a bronze thru-hull CHIRP transducer designed for high-frequency operation, delivering excellent target separation and detail in coastal and offshore depths. This version has a 20-degree tilted element to keep the beam pointing straight down on hulls with deadrise, and is supplied with a 10-metre cable.
Its low-profile bronze housing suits both displacement and planing hulls, and the wideband CHIRP design works with compatible Navico, Lowrance, Simrad and B&G sounders. Choose the tilt angle that matches your hull for the cleanest possible bottom returns.
PRODUCT DETAILS
- High Chirp band 130 to 210 kHz for crisp imaging
- 600 W with integrated depth and temperature sensor
- Tilted Element at 20 degrees for 16 to 24 degree deadrise
- Low-profile bronze thru-hull housing
- 10 m (33 ft) cable with Blue 7-pin connector (adapter 000-13313-001 for current units)
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
Lowrance HDS-7 Carbon ROW with No Transducer
Lowrance HDS-7 Gen3 Multi -Touch Fishfinder Chartplotter no Transducer
Lowrance, Simrad, B&G SonarHub Sounder Module
Simrad NSS7 evo2 Combo 7-inch Multi-function Display
Simrad S2009 Dedicated 9-inch portrait display Fish Finder
B&G Zeus S-12 Ultrawide 12 Inch Display
B&G Zeus SR - 10" Chartplotter
B&G Zeus3S 9 MFD
Lowrance Elite FS 7 No Transducer
Lowrance Elite-7 Ti2 No Transducer
Lowrance Elite-9 Ti Fishfinder Chartplotter TotalScan N Europe C-Map
Lowrance HDS PRO 9. No Transducer
Lowrance HDS-7 Live No Transducer
S3100 Sonar Module
Simrad NSS 4 - 10" Chartplotter and Fishfinder
Simrad NSS9 EVO3S 9 Inch MFD
Simrad NSX 3009 9 Inch Touch Screen Display With 50/200 Khz HDI Transducer
Simrad S5100 high-performance CHIRP sonar module
Connectivity
| Connector | Blue 7-pin (adapter 000-13313-001 for current displays) |
Sonar
| Frequency band | High Chirp 130 to 210 kHz |
Electrical
| Power rating | 600 W |
Physical
| Mounting style | Bronze thru-hull |
| Element tilt | 20 degrees (16 to 24 degree deadrise) |
| Cable length | 10 m (33 ft) |
| Temperature sensor | Yes |
Sonar Capability
| Chirp | Yes |
