This product has been discontinued by Simrad and is no longer available to buy.
Simrad

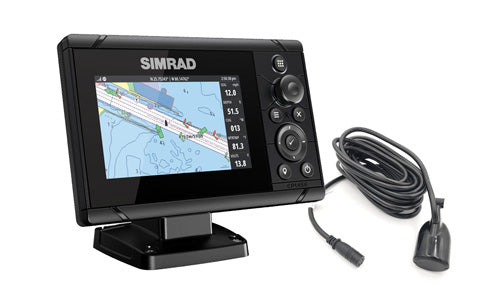

Simrad Cruise 5 ROW 83/200 Transducer
Description
The Simrad Cruise 5 is a 5 inch chartplotter built for boaters who want dependable GPS navigation without the complexity of a full multifunction display. The sunlight-readable colour screen and simple rotary-dial and keypad control make it easy to follow a chart, create routes and read your position, course, speed, depth and battery voltage at a glance.
Cruise pairs essential navigation with straightforward CHIRP sonar from the included 83/200 kHz transom-mount transducer, giving clear automatic depth tracking with no fine tuning required. It supports both C-MAP and Navionics charts, including C-MAP Easy Routing, and internal GPS with WAAS and EGNOS correction keeps your fix accurate. With an IPX6 and IPX7 waterproof rating it suits open helms on RIBs, deck boats, bow riders and tenders, and installs with just power and sonar connections.
PRODUCT DETAILS
- A chartplotter first and depth finder second, offering reliable, affordable GPS navigation with a no-fuss interface
- Bright 5-inch sunlight-readable colour display, controlled by a rotary knob and keypad
- Pre-loaded world basemap with support for C-MAP and Navionics chart cards via the microSD slot
- Built-in CHIRP echosounder with 83/200 kHz transom-mount transducer included
- C-MAP Easy Routing and automatic routing suggest a safe course based on your boat profile
- TripIntel trip recording plus tides, currents, sun and moon information
- Create waypoints, routes and tracks, with a one-press Man Overboard (MOB) function
- Waterproof to IPX6 and IPX7 with WAAS and EGNOS GPS position correction
- Cruise 5 display unit
- 83/200 kHz transom-mount skimmer transducer
- Bracket mounting kit (bracket and 4 self-tapping screws)
- Corner clips
- Power cable with fuse and fuse holder
- Documentation pack
No exploded diagram available for this product.
CRUISE/HOOK2 83/200 SKIMMER TRANSDUCER
Lowrance Hook2 5 7 9 and 12 Ice Transducer
9PIN HIGH SPEED SKIMMER L/H PK ASY
9PIN HIGH SPEED SKIMMER M/H PK ASY
B&G, Lowrance, Simrad XSonic Bronze HDI 50-200, 455-800 kHz 0 degree tilt
B&G, Lowrance, Simrad XSonic Bronze HDI 50-200, 455-800 kHz 12 degree tilt
B&G, Lowrance, Simrad XSonic Bronze HDI 50-200, 455-800 kHz 20 degree tilt
B&G, Lowrance, Simrad XSonic Skimmer HDI 50-200, 455-800 kHz Transom Mount
B&G, Lowrance, Simrad XSonic Skimmer HDI 83-200, 455-800 kHz Transom Mount
HOOK REVEAL 83/200 HDI XDCR
HOOK² / Reveal 50/200 HDI Transducer
Lowrance HST - DFSBL 50/200kHz transom-mount skimmer depth/temp
Lowrance HST - WSBL 83/200kHz transom-mount skimmer depth/temp
Lowrance PTI-WBL - Ice transducer with Blue connector
Lowrance SplitShot Skimmer Transducer
Lowrance, Simrad - HDI Bronze Thru Hull Transducer Blue Plug 0 deg Tilt
Lowrance, Simrad - HDI Bronze Thru Hull Transducer Blue Plug 20 deg Tilt
Lowrance, Simrad Blue Plug Skimmer HDI 50-200, 455-800 kHz Transom Mount
Lowrance, Simrad Blue Plug Skimmer HDI 83-200, 455-800 kHz Transom Mount Transducer
No compatible products found.
Display
| Screen Size | 5 inches |
| Display Type | Colour, sunlight readable |
| Viewing Angles | 70 deg / 50 deg top/bottom, 70 deg / 70 deg left/right |
| Card Reader | 1x microSD card slot |
Electrical
| Supply Voltage | 10.4 to 17.0 V DC |
| Maximum Power Consumption | < 12.2 W |
| Recommended Fuse Rating | 3 A |
Sonar
| Transducer Included | 83/200 kHz transom-mount skimmer |
| Sonar Frequencies | 200 kHz, 83 kHz, Medium CHIRP, High CHIRP |
General
| GPS | Internal, WAAS and EGNOS position correction |
| Cartography | C-MAP and Navionics chart card support |
Environment
| Waterproof Rating | IPX6 and IPX7 |
| Operating Temperature | -15 C to +55 C |
Physical
| Weight | 0.63 kg (display unit) |
| Dimensions (W x H x D) | 185.5 x 142.3 x 30.5 mm |
