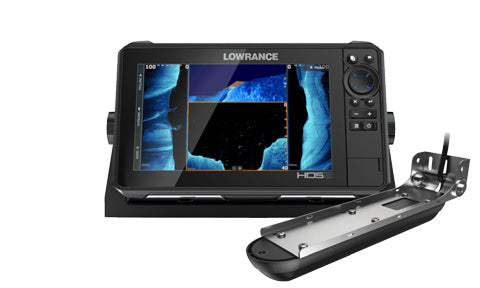

Lowrance HDS-9 Live 3-in-1 Transducer
Description
The Lowrance HDS-9 LIVE is a 9-inch multi-touch fishfinder and chartplotter supplied with the Active Imaging 3-in-1 transducer, giving you CHIRP, SideScan and DownScan imaging straight out of the box. It is also compatible with ActiveTarget Live Sonar, FishReveal and LiveSight. C-MAP charting with C-MAP Genesis Live real-time mapping and LiveCast smartphone integration keep you on the fish, while dual Ethernet and NMEA 2000 networking let the unit grow with your boat. The high-resolution SolarMAX HD display stays clear from any angle, even through polarised sunglasses.
PRODUCT DETAILS
- 9-inch multi-touch SolarMAX HD display, 1280 x 720 resolution, viewable from any angle including through polarised sunglasses
- Supplied with the Active Imaging 3-in-1 transducer for CHIRP, SideScan and DownScan imaging
- Compatible with ActiveTarget Live Sonar, FishReveal and LiveSight sonar
- C-MAP charts with C-MAP Genesis Live real-time mapping and LiveCast smartphone integration
- Networks over dual Ethernet and NMEA 2000, with internal Wi-Fi and Bluetooth
- IPX6 and IPX7 waterproof rating
- HDS-9 LIVE display unit
- Active Imaging 3-in-1 transducer (1.8 m cable)
- U-bracket kit (plastic)
- Sun cover
- Power cable kit
- Documentation pack
No exploded diagram available for this product.
Lowrance Halo20 Pulse Compression Radar
Lowrance Halo20+ Pulse Compression Radar
Lowrance Halo 24 Radar
Lowrance NAC-1 Outboard Hydraulic Pilot Pack
Lowrance Point-1 GPS Glonass With Electronic Compass
Lowrance Active Imaging 3 in 1 Transducer 1.8m cable
Lowrance Active Imaging Transducer SideScan and DownScan 7.6m cable
Lowrance Active Target Live Sonar, Transducer Module and Cables
Lowrance ActiveTarget 2 (Module + Transducer + Mounts)
Lowrance HDI Skimmer® Transom Mount transducer
Lowrance HDI Skimmer® Transom Mount transducer with Temperature
Lowrance Bullet Skimmer Transducer
Lowrance SplitShot Skimmer Transducer
Lowrance TripleShot Skimmer Transducer
Lowrance, Branded XSonic Skimmer HDI 83-200, 455-800 kHz Transom Mount Transducer
Display
| Screen size | 9 in |
| Resolution | 1280 x 720 |
| Brightness | >1200 nits |
| Touchscreen | Multi-touch |
| Viewing angles | 80 deg top/bottom, 80 deg left/right |
Sonar
| Sonar CH1 (blue) | CHIRP sonar and DownScan |
| Sonar CH2 (black) | CHIRP sonar, DownScan, SideScan and Active Imaging / 3-in-1 / TotalScan / StructureScan |
| Sonar ports | 2 ports |
Electrical
| Supply voltage | 13.8 V DC (10 - 17 V DC) |
| Power consumption (max) | 24.9 W (1.8 A at 13.8 V DC) |
| Recommended fuse rating | 3 A |
Connectivity
| NMEA 2000 | 1 port (Micro-C) |
| NMEA 0183 | 1 port (via the power connector) |
| Ethernet | 2 ports (5-pin connector) |
| Analog video | 1 port (via the power cable, adapter cable sold separately) |
| Card reader | 2 slots (microSD SDXC), max 32 GB per card |
| Wi-Fi | Internal 802.11b/g/n |
| Bluetooth | Bluetooth 4.0 with support for Bluetooth Classic |
Environment
| Operating temperature | -15 C to +55 C (5 F to 131 F) |
| Storage temperature | -20 C to +60 C (4 F to 140 F) |
| Waterproof rating | IPX6 and IPX7 |
| Shock and vibration | 100,000 cycles of 20 G |
Physical
| Dimensions (W x H x D) | 280.0 x 166.7 x 64.6 mm |
| Weight (display only) | 1.38 kg (3.04 lb) |
| Compass safe distance | 50 cm |
| Mounting type | Panel mount or bracket mount |
