Discontinued
This product has been discontinued by Simrad and is no longer available to buy.
Simrad

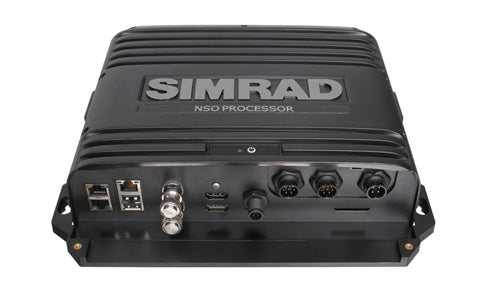

Simrad NSO evo2 Processor No Charts
000-10997-001
The Simrad NSO evo2 Marine Processor is a black-box marine processor for building a custom glass-helm navigation system with your own Simrad monitors. Dual quad-core processors drive up to two independent displays via HDMI, with the response needed for charts, radar and sonar. Three Ethernet ports, NMEA 2000 and NMEA 0183 give wide integration with autopilot, instruments and third-party systems. Supplied with a worldwide basemap (no detailed cartography).
Description
Simrad NSO evo2 Marine Processor Unit, Worldwide Basemap (No Detailed Cartography). Enhancing the helms of the world’s leading powerboats and sportfishing vessels, the NSO evo2 offers a distributed MFD system for integrated charting, echosounder, radar, autopilot, entertainment, and more.
PRODUCT DETAILS
- Black-box marine processor for a fully customised glass-helm system
- Dual iMX61 quad-core processors for fast, smooth multi-display operation
- Drives up to two independent monitors via two HDMI outputs
- Supports Simrad MO16/19/24 touch monitors and other compatible displays
- Three Ethernet ports (two with PoE), NMEA 2000 and NMEA 0183
- Two composite video inputs and a 32 GB SD card slot
- Compact ABS housing for flexible mounting
- Integrates with radar, sonar, autopilot and third-party systems
- NSO evo2 Marine Processor
- NSO evo2 power cable (4-wire)
- Micro-C power cable
- Micro-C drop cable (male-female), 1.8 m
- Micro-C T-connectors (x3)
- Micro-C terminators, 120 ohm (male and female)
- NMEA 0183 serial cable, 8-wire, 2 m
- Ethernet adaptor, 5-pin female to RJ45 male
- Installation kit (cable retainer, cable ties, screws)
- Quick Start Guide and manuals
No exploded diagram available for this product.
No compatible transducers listed for this product.
12kW X-Band SRT LAN Pedestal (R5000)
B&G Halo20 Pulse Compression Radar
B&G Halo20+ Pulse Compression Radar
B&G, Simrad NAC-2 Autopilot Computer
B&G, Simrad NAC-3 Autopilot Computer
Lowrance Halo 24 Radar
Lowrance, Simrad NAC-1 Autopilot Computer
Simrad R3016 Halo 6 Radar Kit
AC70 PCB
AD80 Analog Drive PCB
Ghost lift assist kit 47"
SG05 Pro Autopilot Computer
General
| Processors | Dual iMX61 quad-core |
| GPS | External GPS required |
| Sonar | External echosounder module required (via Ethernet) |
| Cartography Included | Worldwide basemap (no detailed cartography) |
Display
| Monitor Support | Up to 2 independent monitors via 2 HDMI outputs (DVI via adaptor) |
| Max Output Resolution | 1920 x 1200 (WUXGA) |
Electrical
| Supply Voltage | 9 - 31.2 V DC (12/24 V DC) |
| Power Consumption | 45 W max, 1 W off |
| Recommended Fuse Rating | 3 A |
Connectivity
| Ethernet | 3 ports (2 with PoE), RJ45 |
| NMEA 2000 | 1 x Micro-C port, 1 LEN |
| NMEA 0183 / RS422 | NMEA 0183 (4800-38400 baud) and RS422 (1200-115200 baud) |
| HDMI Output | 2 ports |
| Video Input | 2 ports (BNC, NTSC or PAL) |
| USB | 2 x USB-A |
| Card Reader | 1 SD card slot (max 32 GB) |
| Wi-Fi | Not built in (optional external WIFI-1 adaptor) |
Environment
| Operating Temperature | -15 C to +55 C |
| Waterproof Rating | IPX2 |
Physical
| Dimensions (W x H x D) | 281 x 232 x 65.5 mm |
| Weight | 1.06 kg |
| Material | ABS plastic |
Approvals
| Compliance | CE, C-Tick, HDMI |
How many monitors can the NSO evo2 processor drive?
The processor has two HDMI outputs and can drive up to two independent monitors, each running as a separate multifunction display. Monitors with DVI inputs can be connected using an HDMI-to-DVI adaptor.
Does the NSO evo2 processor have a built-in GPS?
No. The NSO evo2 processor requires an external GPS source. Position data is typically supplied over the NMEA 2000 network from an antenna such as the Simrad GS25.
Does it have a built-in echosounder?
No. There is no internal sonar. To view echosounder images you need to add a compatible external echosounder module on the Ethernet network.
What networking does the processor provide?
It offers three Ethernet ports (two with Power over Ethernet), one NMEA 2000 Micro-C port, and NMEA 0183 / RS422 serial connectivity, plus two composite video inputs and two USB-A ports.
Are charts included?
A worldwide basemap is pre-loaded but no detailed cartography is supplied. Add a C-MAP or Navionics chart card on the SD card slot (max 32 GB) for detailed charts of your area.
What is the waterproof rating and warranty?
The processor is rated IPX2, so it must be mounted in a protected location below decks. It is supplied with a 2-year warranty.
