Discontinued
This product has been discontinued by B&G and is no longer available to buy.
B&G

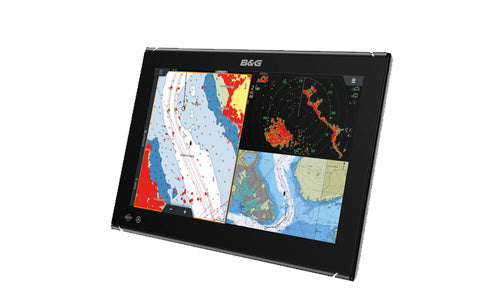

B&G Zeus3 16 GH 16 inch Glass Helm Display
000-14007-001
The B&G Zeus3 Glass Helm 16 is a premium 16-inch glass helm multifunction display designed for blue water sailing, multihulls and superyachts. This large-screen, fast processor display offers touchscreen and remote control and runs B&G's sailing features including SailSteer and RacePanel, alongside radar, charting and sonar. This is the display-only version, supplied with a World Basemap.
Description
Zeus³ GH 16" Display Only: The B&G Zeus³ Glass Helm 16 is designed specifically for blue water sailing, multihulls and superyachts. This premium, super-fast, large-screen, multifunction display sits at the heart of your fully integrated navigation system. The Zeus³ Glass Helm provides easy-to-use touchscreen and remote control options. B&G's unique sailing features including SailSteer and RacePanel all combine with Radar, charting, sonar and much more. World Basemap
PRODUCT DETAILS
- 16-inch full HD 1920 x 1080 glass helm display
- Multi-touch screen with 1000 nits brightness
- Quad-core processor for fast, fluid operation
- B&G SailSteer and RacePanel sailing features
- Radar, charting and sonar in one display
- Display only, supplied with World Basemap
- Zeus3 Glass Helm 16 display unit
- Power cable
- Mounting hardware
- Documentation pack
No exploded diagram available for this product.
No compatible transducers listed for this product.
Key specifications
| Product type | Glass Helm multifunction display (display only) |
Display
| Screen size | 16 in |
| Resolution | 1920 x 1080 (full HD) |
| Brightness | 1000 nits |
| Touchscreen | Full multi-touch touchscreen |
Performance
| Processor | Quad core |
Cartography
| Supplied charts | World Basemap |
No videos available for this product.
Is this the display only or a full system?
This is the Zeus3 Glass Helm 16 display-only version. The matching system pack adds an MI10 card reader, ZG100 GPS antenna and ZC2 remote controller for a complete installation.
Which charts does the Zeus3 Glass Helm 16 support?
It supports C-MAP cartography, Navionics charts and Insight charts from Navico. As a Glass Helm display the chart card reader is provided by the separate MI10 card reader, included in the system pack version.
Can I connect a radar?
Yes. The Zeus3 Glass Helm 16 is compatible with B&G and Simrad radar including HALO Pulse Compression Radar and Broadband 4G Radar, connected over the Ethernet network.
Does it work with NMEA 2000 instruments?
Yes. The Zeus3 Glass Helm 16 connects over NMEA 2000 and NMEA 0183, integrating with B&G autopilot, wind, depth and other compatible sailing instruments.
