B&G Zeus S-15 Ultrawide 15 Inch Display
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Manufacturer-backed extended cover provided by Navico — add up to 3 extra years.
Extended cover is added to your order and confirmed with your warranty documentation.
Description

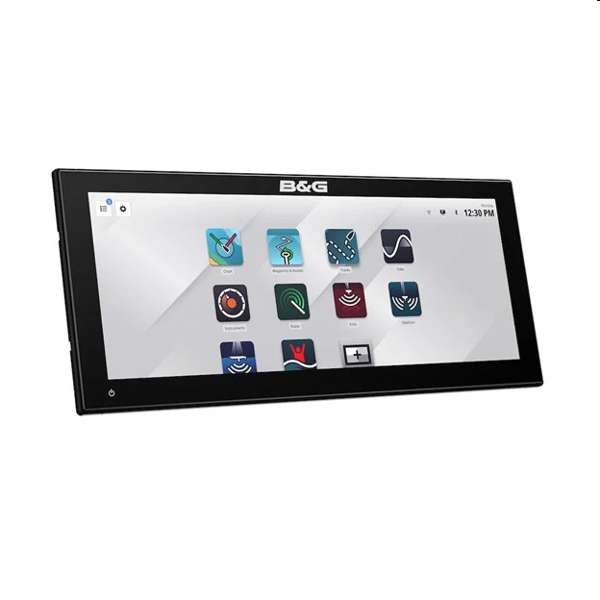

B&G Zeus S-15 Ultrawide 15 Inch Display
Elevate your instincts with our first ever ultrawide display. Zeus S Ultrawide delivers our most streamlined and immersive sailing experience yet. See our award-winning sailing features as they were meant to be seen – uninterrupted by bezels or dead space. And explore C-MAP DISCOVER X and REVEAL X charts like never before.
Intuitive and easy-to-use Chartplotter
Zeus® S is our most intuitive chartplotter for sailing yet. It comes with new and unique Sailing Modes with preset dashboards and data for your situation, along with many enhanced sailing features for a simpler sailing experience. All of which is backed up by clear and accurate C-MAP charting options for the safest and easiest navigation.
Next-Gen Charts
C-MAP® X-Gen charts deliver the cutting-edge of navigation. Explore the stunning DISCOVER X charts, zooming in and out in an instant. Discover new spots with incredible local detail. And explore after dark with a dedicated night mode. An upgrade to the stunning REVEAL X adds incredible shaded relief and satellite imagery to your arsenal.
Revolutionary Safety Features
The X-Gen charts also unlock a host of ground-breaking features, such as the revolutionary C-MAP Safety Alerts – built to automatically alert boaters to hazards up ahead, from shallow waters to buoys.
Ground-breaking Chart Management
In an industry first – the X-Chart Manager lets users manage C-MAP chart updates and upgrades directly from the device, with the ability to choose custom areas for a near-instant download. And there are plenty of updates, because X-Gen charts are always evolving, adding new details and features all the time.
Superior Integration
Our latest OS has integration at its core, with seamless networking across the entire boat. Connect to HALO radars for superior safety and situational awareness. Unlock next-level performance with our Triton Edge and Hercules sailing processors. And bring the very best data to the helm with our famous wind sensors, which feed into our range of Triton and Nemesis instruments.
PRODUCT DETAILS
- High definition SolarMAX IPS Ultrawide touchscreen, viewable from all angles, even with polarised glasses
- Separate modes for Cruising, Racing and Anchoring
- Award-winning sailing features like SailSteer, LayLines, Race Routes and StartLine
- Compatible with C-MAP DISCOVER X and REVEAL X charts
- C-MAP-powered Safety Alerts
- Full integration with HALO radars, B&G Sailing Processors, Autopilots, Triton 2, Nemesis instruments, wind sensors and more
- B&G App integration with 12 months premium subscription when registering a C-MAP X Chart
- Wi-Fi, Ethernet & NMEA 2000 networking
- IP video camera support
- Set-up Wizard to get you up and running quickly
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Display
| Backlight Color | White |
| Display Size | 15 inches |
| Screen Brightness | >1000 nits |
| Viewing Angles | 85° (top, bottom, left, and right) |
Connectivity
| Bluetooth | Bluetooth 4.0 with support for Bluetooth Classic |
| Ethernet Ports | 1 port (5-pin connector) |
| Wi-Fi | IEEE 802.11b/g/n |
| NMEA 2000 Connectivity | 1 x NMEA 2000 Micro-C port, 1 LEN |
| SD Card Storage | 1 MicroSD slot, 1 x USB (A) |
| Video | IP Camera support |
Cartography
| Charts Supported | C-MAP Tile (CMT) Discover X, Reveal X |
Electrical
| Recommended Fuse Rating | 3A |
| Supply Voltage | 12 V DC (10 - 17 V DC) |
Environment
| Humidity | IEC 60945 Damp heat 66°C (150°F) at 95% relative (18 hr) |
| Operating Temperature Range | -15°C to 55°C (5°F to 131°F) |
| Shock & Vibration | 100,000 cycles of 20 G |
| Storage Temperature Range | -20°C to 60°C (-4°F to 140°F) |
| Waterproof rating | IPx6 and IPx7 |
GPS
| Correction | 10 Hz high speed update (internal), WAAS, MSAS, EGNOS, GLONASS |
| GPS Receiver Channels | 32 Channels |
| Position Accuracy | Horizontal Accuracy 3 m (9.8 ft) |
| Update rate | 10 Hz |
MFD
| AIS | Receive AIS data over NMEA 2000 |
| Autopilot | NAC-1, NAC-2, NAC-3, NAC-D compatible |
| Digital Switching | CZone |
| GPS | Internal, 10 Hz |
| Sonar Compatibility | One 9-pin Xsonic 1 kW Sonar port. Single channel CHIRP, 50/200 kHz, HDI, Active Imaging |
| Waypoints, Routes, Tracks | 6000 waypoints, 500 Routes with 100 max route points, 50 tracks with up to 12,000 track points |
Physical
| Compass Safe | 50 cm (1.7 ft) |
| Dimensions W x H x D | See model-specific B&G installation manual for exact dimensions |
| Mounting Type | Rear mount (bracket supplied), bracket mount (bracket optional) |
Other
| Interface | Multi-touch screen |
| Warranty Period | 2 Years |
