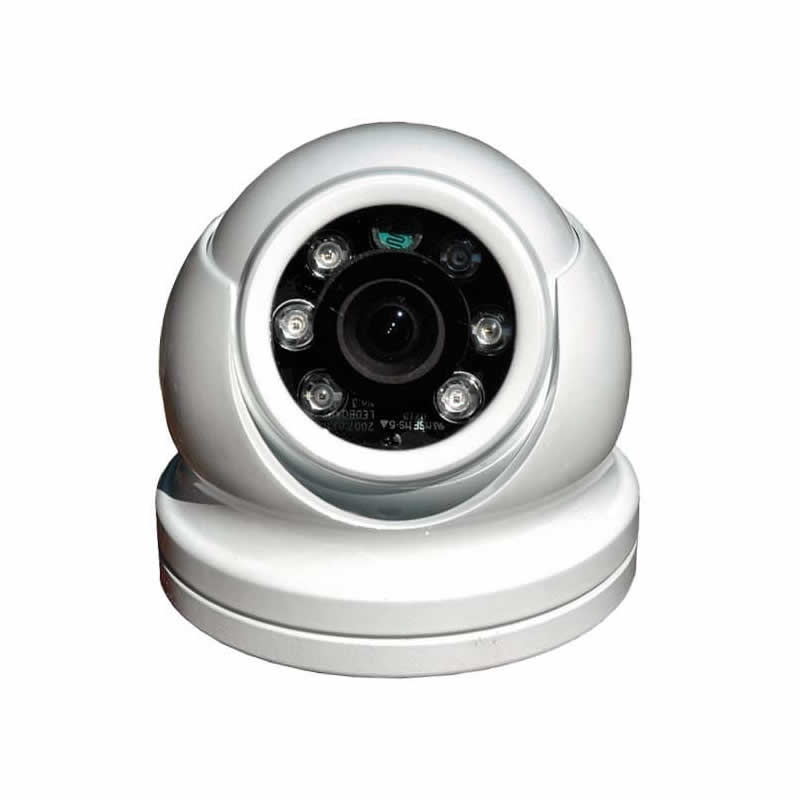

Iris IRIS460 3MP IP Mini Dome Camera, White, 2.8mm

£474.00
Tax included.
00003-001
The Iris IRIS460 is a miniature 3MP marine IP dome camera measuring just 58mm in diameter, finished in white with a 2.8mm lens giving a 110-degree horizontal field of view. It connects over PoE or 12VDC and is compatible with Raymarine, Navico and Furuno multifunction displays. Built-in infrared LEDs provide night visibility to around 10 metres.
✓ Collection or delivery in 1-2 weeks

Pickup available at Mercury Yacht Harbour

Usually ready in 2-4 days

Description

The IRIS460 is one of the smallest waterproof marine IP cameras available, only slightly larger than a golf ball at 58mm in diameter by 57mm high. Its compact size lets owners add discreet high-definition surveillance to a vessel without detracting from its appearance, making it an ideal back-up, docking, deck, companionway or engine-room camera.

The 3MP sensor produces crisp 2048 x 1536 video and uses H.264 compression with dual streams to move efficiently around an onboard network. A mechanical IR-cut filter delivers true day and night operation, and built-in infrared LEDs switch on automatically in low light to give clear images in darkness. The camera is ONVIF Profile S compliant and runs from 12VDC or IEEE 802.3af Power over Ethernet.

The IRIS460 connects directly to Raymarine (LightHouse 2 and above) and Axiom plotters, Navico displays from Simrad, Lowrance and B&G, and Furuno TimeZero 4.1 and above. Garmin compatibility is achieved using the Iris CMAC range of switchers and recorders.

PRODUCT DETAILS

  • Miniature housing only 58mm diameter by 57mm high
  • 3MP high-definition 2048 x 1536 resolution
  • True day and night operation with mechanical IR-cut filter
  • Built-in infrared LED illumination to around 10 metres
  • 12VDC and PoE IEEE 802.3af power options
  • H.264 compression with dual streams and ONVIF Profile S
  • Compatible with Raymarine, Navico and Furuno MFDs; Garmin via CMAC
  • IP66 environmental protection

No compatible transducers listed for this product.

Iris PoE01 Single-Channel PoE Injector

Iris PoE01 Single-Channel PoE Injector

Iris PoE04v2 Four-Channel PoE Injector

Iris PoE04v2 Four-Channel PoE Injector

Iris CMAC-NVR 16-Channel IP Network Recorder, 1TB, Recorder Only

Iris CMAC-NVR 16-Channel IP Network Recorder, 1TB, Recorder Only

Camera

Sensor1/4" CMOS
Resolution3MP, 2048 x 1536
Day/NightTrue day/night with mechanical IR-cut filter

Lens

Lens2.8mm
Horizontal Field of View110 degrees

Video Output

CompressionH.264, dual stream
InterfaceRJ45 10/100 Base-T Ethernet
ONVIFProfile S

Illumination

InfraredBuilt-in 850nm IR LEDs, approx. 10m range

Power

Power Options12VDC or PoE IEEE 802.3af

Connectivity

ProtocolsTCP/UDP/HTTP/Multicast/UPnP/NTP/RTSP/ONVIF

Compatibility

MFD CompatibilityRaymarine/Axiom (LH2+), Simrad, Lowrance, B&G, Furuno TimeZero v4.1+; Garmin via CMAC

Physical

Dimensions58mm diameter x 57mm high

Environmental

Ingress ProtectionIP66

No videos available for this product.

Which chart plotters is the IRIS460 compatible with?
The IRIS460 connects directly to Raymarine (LightHouse 2 and above) and Axiom plotters, Navico displays from Simrad, Lowrance and B&G, and Furuno TimeZero 4.1 and above. Garmin compatibility is achieved using the Iris CMAC range of switchers and recorders.
How is the IRIS460 powered?
The camera runs from 12VDC or from Power over Ethernet (IEEE 802.3af). A PoE injector such as the Iris PoE01 or PoE04v2 can be used where a single network cable is preferred.
Does the IRIS460 work at night?
Yes. A mechanical IR-cut filter and built-in infrared LEDs switch on automatically in low light to provide clear images in darkness to a range of around 10 metres.
Is the IRIS460 ONVIF compliant?
Yes, the IRIS460 is ONVIF Profile S compliant and supports H.264 dual-stream video, so it integrates with ONVIF recorders and network video software.
