Iris IRIS436 Full HD IP Stainless Dome Camera, Polished, 3.6mm
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

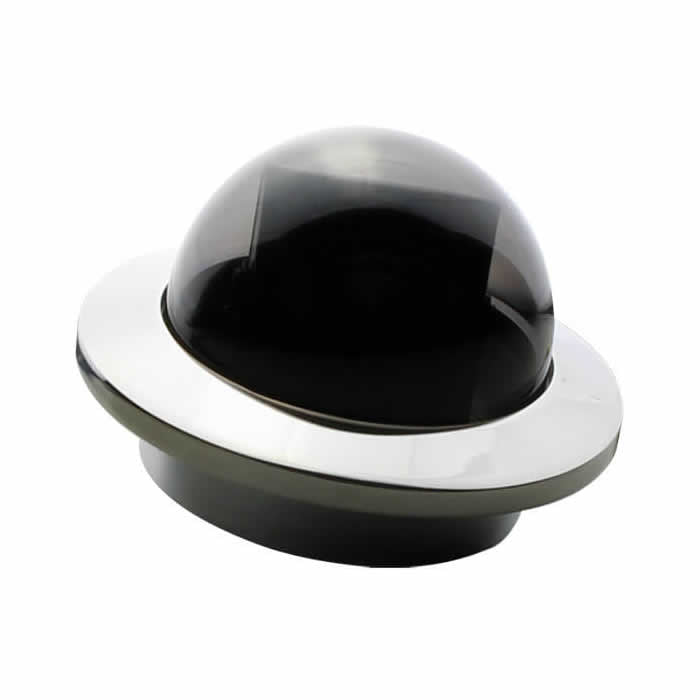

The IRIS436 is a stylish, compact flush-mounting marine IP camera built around a marine-grade 316L stainless steel housing. The high-polished bezel measures only 86mm in diameter with a 62mm panel cutout, so it complements the finish of high-end vessels while remaining tough enough for demanding workboat and commercial applications.
The camera streams Full HD video efficiently around an onboard network using industry-standard H.264 compression with dual streams, reducing latency and network lag. Configurable image mirroring allows the picture to be flipped for rear-view use. It is plug-and-play compatible with Raymarine LightHouse 2 and 3 and Axiom plotters, Navico displays and Furuno TimeZero v4.1, and is ONVIF Profile S compliant for use with third-party ONVIF hardware.
Small and unobtrusive, the IRIS436 suits internal or external installation for deck and companionway monitoring, engine-room views, as a backup camera or as part of a fully integrated onboard security and surveillance system. It is supplied with a 12VDC input as standard, with PoE IEEE 802.3af available as an option.
PRODUCT DETAILS
- Compact 316L stainless steel housing, 86mm bezel with 62mm cutout
- Full HD 1920 x 1080 IP video
- H.264 compression with dual streams and ONVIF Profile S
- True day/night operation with mechanical IR-cut filter
- 12VDC standard or PoE IEEE 802.3af option
- Configurable image mirror for rear-view use
- Compatible with Raymarine, Navico and Furuno MFDs
- IP66 environmental protection
No compatible transducers listed for this product.
Camera
| Sensor | 1/4" CMOS |
| Resolution | 1920 x 1080 (Full HD) |
| Day/Night | True day/night with mechanical IR-cut filter |
Lens
| Lens | 3.6mm standard |
| Horizontal Field of View | 80 degrees |
Video Output
| Compression | H.264, dual stream |
| Interface | RJ45 10/100 Base-T Ethernet |
| ONVIF | Profile S |
Power
| Power Options | 12VDC standard or PoE IEEE 802.3af option |
Compatibility
| MFD Compatibility | Raymarine/Axiom (LH2+), Simrad, Lowrance, B&G, Furuno TimeZero v4.1+ |
Physical
| Bezel Material | 316L marine-grade stainless steel, high-polish finish |
| Dimensions | 86.5mm diameter x 58mm (62mm panel cutout) |
| Weight | 0.25 kg |
Environmental
| Operating Temperature | -30 to +60 degrees C |
| Ingress Protection | IP66 |
