Iris IRIS-S476 3MP IP Vertical-Mount Stainless Camera, 2.8mm
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

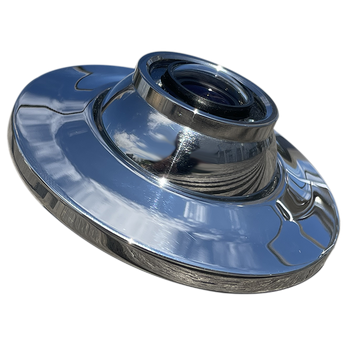

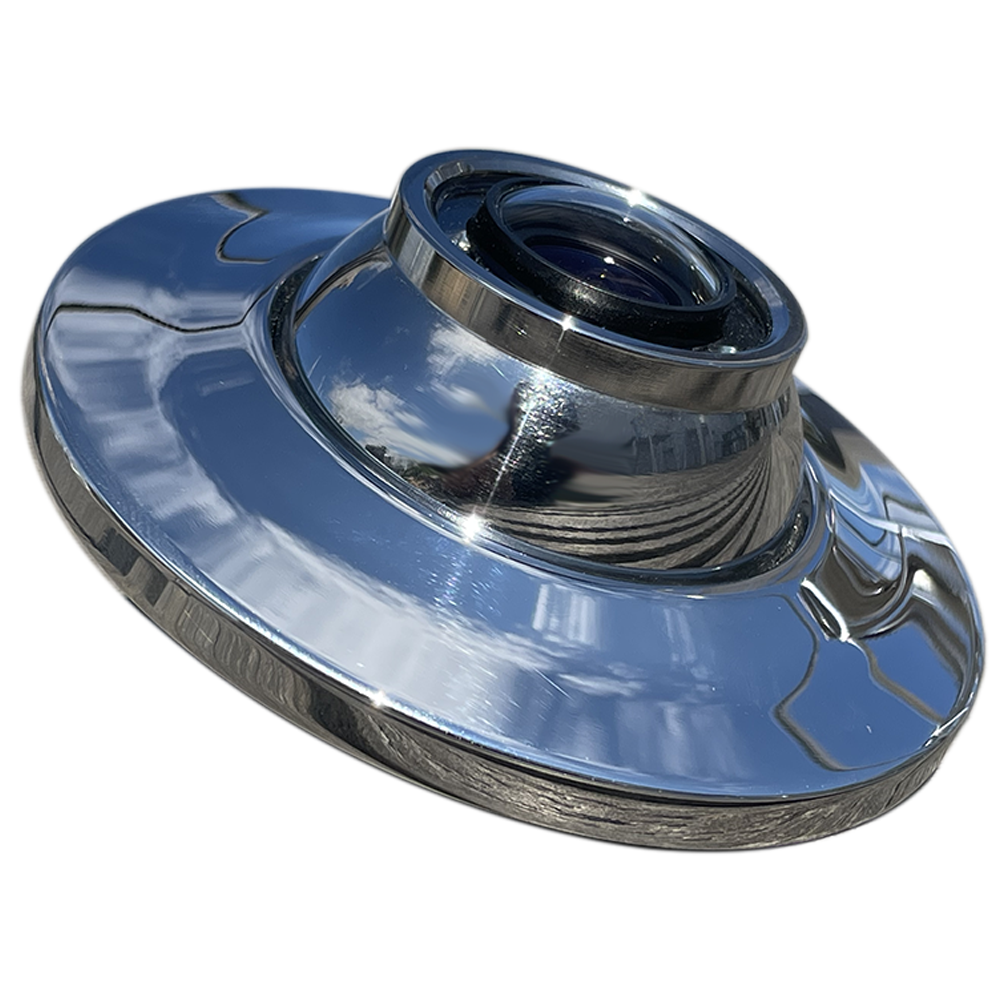

The Iris IRIS-S476 is the IP version of Iris' Sx76 series, the first marine camera of its kind designed to be installed into a bulkhead or vertical surface. Its waterproof case is machined from marine grade 316L stainless steel so it will not corrode in harsh salt water, making it an excellent backup or docking camera. Mounted in the topsides it even assists when coming alongside jetties and pontoons.
During installation the inner ball can be aimed and then locked in place simply by tightening the outer bezel. The IP model delivers up to 3MP high definition resolution with dual H.264 streaming, PoE or 12VDC power and ONVIF compliance, and outputs to a wide range of marine and PC systems. Six built-in 850nm infra red LEDs provide short range night vision to around 10 metres.
Certified to EN60945, EN55032, EN55035 and EN60529 (IP66), the camera is directly compatible with Raymarine on LH2 and above, plus Simrad, Lowrance and B&G; Garmin systems are supported using Iris CMAC products. Its rugged case and small footprint also suit recreational vehicles, fire and rescue trucks and other demanding applications.
PRODUCT DETAILS
- Designed for flush vertical, bulkhead and topside mounting
- Corrosion-proof marine grade 316L stainless steel case
- Up to 3MP high definition IP video with dual-stream H.264
- Power over Ethernet (IEEE 802.3af) or 12VDC operation
- ONVIF compliant; certified to EN60945, EN55032, EN55035 and EN60529 (IP66)
- Compatible with Raymarine (LH2+), Simrad, Lowrance and B&G; Garmin via CMAC
- Aim-and-lock inner ball adjusted by tightening the outer bezel
- Built-in 850nm infra red LEDs for around 10m night vision
- Wide-angle 2.8mm lens giving a 120 degree horizontal field of view
No compatible transducers listed for this product.
Camera/Imaging
| Sensor | 1/4" CMOS sensor |
| Resolution | Variable, up to 3MP (2304 x 1296) maximum |
| Video Processing | H.264 codec, dual stream |
| Bitrate | VBR / CBR, 32kbps to 8Mbps |
| Mirroring | Horizontal and vertical, configured via browser |
| Automatic Gain Control | Supported, multiple levels |
Connectivity
| Interface | RJ45 10/100 Base-T Ethernet |
| Protocols | TCP/UDP/HTTP/Multicast/UPnP/NTP/RTSP/ONVIF |
| ONVIF | Profile S v21.06 |
| Connector | Water resistant RJ45 socket; non-PoE with DC power socket |
Illumination (IR)
| Infra Red | 6 x 850nm infra red LEDs |
| IR Range | Approximately 10 metres |
Power
| Operating Voltage | 12VDC (+10 to +15VDC range) |
| Power Consumption | 1W nominal, 1.8W maximum with LEDs on |
| Power over Ethernet | IEEE 802.3af |
Environmental
| Ingress Protection | IP66 (EN60529) |
| Operating Temperature | -30 to +60 C |
| EMC | EN55032:2015/A11:2020, EN55035:2017/A11:2020, EN60945:2002 Sections 9 & 10, FCC Part 15 A & B |
Physical
| Material | Marine grade 316L stainless steel (high polished standard; brushed / powder coat options) |
| Diameter | 88 mm |
| Mounting Depth | 22.25 mm above and below the mounting surface |
Compatibility
| Marine Systems | Raymarine/Axiom (LH2+), Simrad, Lowrance, B&G (latest NOS/NEON OS); Garmin via Iris CMAC; PC and IRIS NVR/HVR |
Lens
| Lens / Field of View | 2.8mm lens, 120 degree horizontal field of view |
