Iris IRIS435 3MP IP Submersible Stainless Bullet Camera, 3.6mm Lens
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The IRIS435 is a discreet, ultra-tough IP bullet camera based on Iris's best-selling S460 camera engine and machined from marine grade 316L stainless steel. Ideal as a backup or tender-watch camera, a covert security camera or a through-hull and through-transom camera, it is supplied with 60 degree wedge adapters to angle the view where needed.
The camera streams up to 3MP IP video and is directly compatible with Raymarine, Navico (Simrad, Lowrance and B&G) and Furuno chart plotters; compatibility with Garmin displays is achieved through Iris's CMAC camera management system. It is ONVIF Profile S compliant and accepts both Power over Ethernet and 12VDC, with built-in infra-red illumination giving close-range visibility to 10m. The 3.6mm lens provides a 90 degree field of view.
With an IP68 environmental rating the IRIS435 can be used below the waterline to monitor running gear, film fishing adventures or, mounted on a pole, serve as an underwater inspection camera. A hi-bright white LED option is also available for sub-surface illumination.
PRODUCT DETAILS
- Compact bullet camera machined from marine grade 316L stainless steel
- Up to 3MP IP video, ONVIF Profile S compliant
- 3.6mm lens with 90 degree horizontal field of view
- Directly compatible with Raymarine, Navico (Simrad, Lowrance, B&G) and Furuno; Garmin via CMAC
- Power over Ethernet and 12VDC connections
- Built-in infra-red illumination to 10m; white LED option available
- IP68 rated and fully submersible for sub-surface use

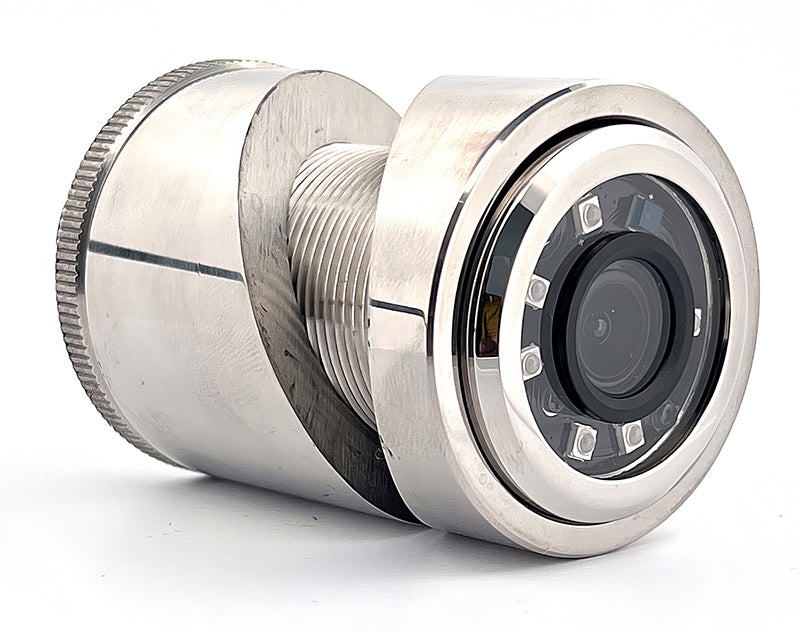

- Supplied with 60 degree wedge adapters for angled mounting
No compatible transducers listed for this product.
Camera/Imaging
| Resolution | Up to 3MP (IP) |
Lens
| Lens | 3.6mm |
| Horizontal Field of View | 90 degrees |
Video Output
| Video Format | IP (H.264); analogue HD variant also available |
Connectivity
| ONVIF | ONVIF Profile S compliant |
Illumination (IR)
| Infra-Red | Built-in IR LEDs, 10m range; white LED option available |
Power
| Power | PoE and 12VDC |
Environmental
| Environmental Rating | IP68, fully submersible |
Physical
| Material | 316L marine grade stainless steel |
| Dimensions | 114 x 104 x 81mm (packaged) |
| Weight | 0.4kg |
| Supplied Accessories | 60 degree wedge adapters |
Compatibility
| MFD Compatibility | Raymarine / Axiom (LH2+), Navico (Simrad, Lowrance, B&G), Furuno; Garmin via CMAC |
