Iris IRIS490 5MP IP Stainless Steel Rugged Camera, 2.8mm Wide Angle
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

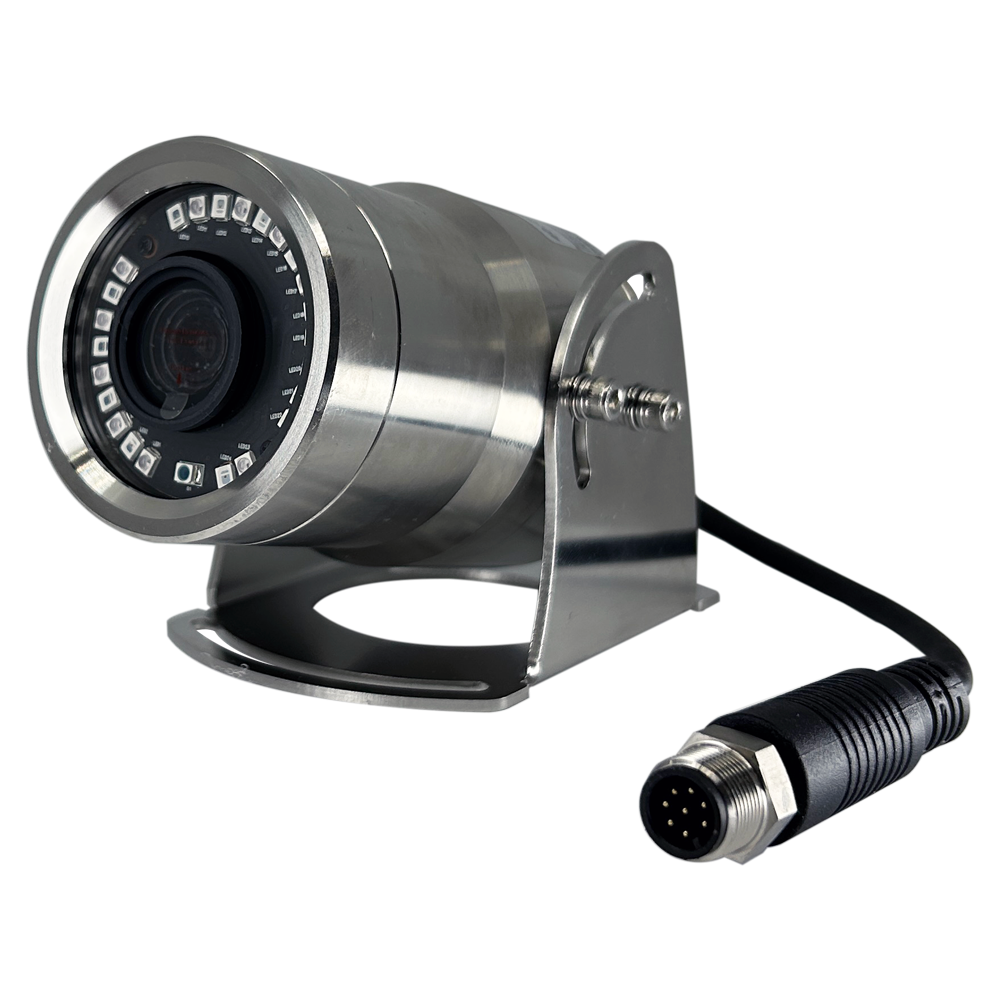

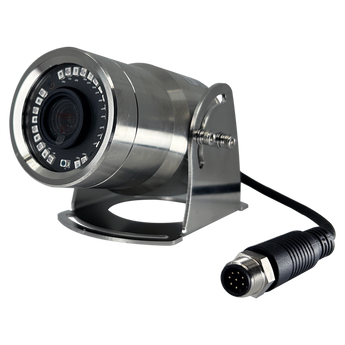

The IRIS490 is the network IP model in Iris's x90 range of rugged pipe-style cameras, machined from 316 marine grade stainless steel with a high polish finish for the ultimate protection in the harsh marine environment. It delivers high definition 5MP video and is directly compatible with Raymarine chart plotters running Lighthouse 2 software and above, Navico displays (Simrad, Lowrance and B&G) and Furuno TZT plotters, as well as PC based systems.
Equipped with high power 850nm infra-red LEDs, the IRIS490 provides high definition coverage even at night to a range of 20m. The 2.8mm wide-angle lens gives a broad 120 degree field of view, and the camera's waterproof multi-pole circular connector accepts an optional 20m extension cable to improve environmental protection in demanding installations. A fully submersible version is also available.
Rated to IP66 and drawing very little power over its IEEE802.3af Power over Ethernet connection, the IRIS490 is favoured by luxury boat owners and commercial operators alike for deck, engine room and companionway monitoring as well as docking and backup duties.
PRODUCT DETAILS
- Machined from 316 marine grade stainless steel with a high polish finish
- High definition 5MP IP resolution with multiple stream support
- 2.8mm wide-angle lens with 120 degree horizontal field of view
- Directly compatible with Raymarine (LH2+), Navico (Simrad, Lowrance, B&G) and Furuno TZT
- Power over Ethernet IEEE802.3af, with optional 20m IP68 extension cable
- High power 850nm infra-red illumination to 20m
- IP66 rated, fully submersible version available
- ONVIF Profile S compliant with very low power consumption
No compatible transducers listed for this product.
Camera/Imaging
| Sensor | 1/4" CMOS |
| Resolution | Variable, up to 5MP |
Lens
| Lens | 2.8mm |
| Horizontal Field of View | 120 degrees |
Video Output
| Video Processing | H.264 codec, dual stream, VBR/CBR 32kbps-8Mbps |
Connectivity
| Interface | RJ45 10/100 Base-T Ethernet (water resistant socket) |
| ONVIF | ONVIF Profile S 2.4 |
Illumination (IR)
| Infra-Red | 2 x high power 850nm IR LEDs, 20m range |
Power
| Power | PoE IEEE802.3af / 12VDC, less than 200mA max |
Environmental
| Environmental Rating | IP66 standard; IP68 submersible option available |
| Operating Temperature | -30 to +60 degrees C |
Physical
| Material | 316 stainless steel, high polish finish |
| Dimensions | 126mm x 64mm |
| Weight | 1.17kg |
Compatibility
| MFD Compatibility | Raymarine / Axiom (LH2+), Navico (Simrad, Lowrance, B&G), Furuno TZT, PC based systems |
