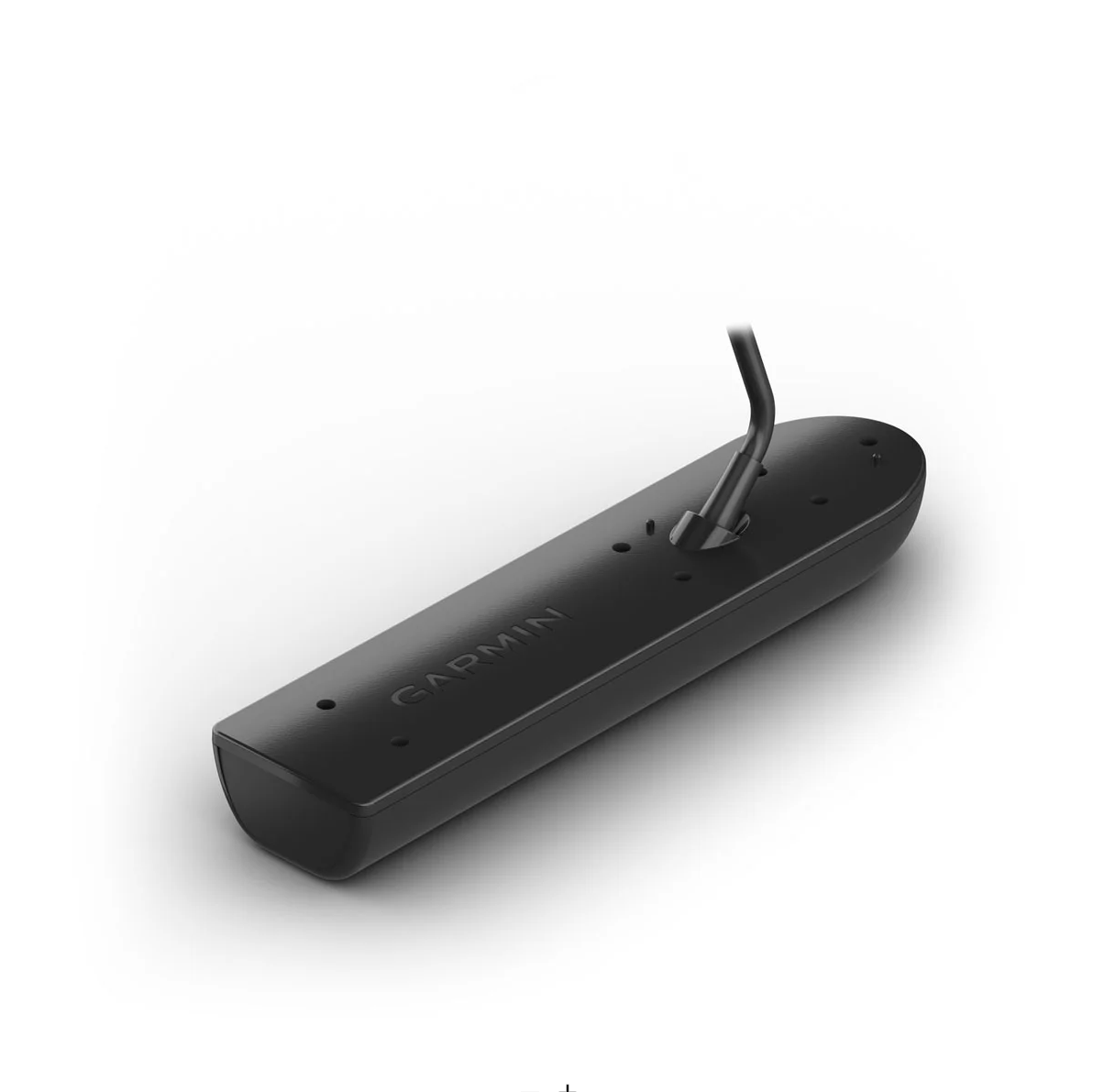

Garmin GT56UHD for Force® Kraken Trolling Motors, For 75 Force® Kraken Trolling Motor
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Garmin GT56UHD-TR is the dedicated nose-cone transducer for the 75 in. Force Kraken trolling motor. It pairs Garmin ClearVu and SideVu ultra-high-definition scanning sonar with high-wide CHIRP traditional sonar, giving you a sharp, detailed view of fish, bait and bottom structure beneath and to the sides of the boat. ClearVu and SideVu run at 455 kHz, 800 kHz and 1 MHz at 500 W each, while traditional CHIRP covers 140 to 240 kHz at 350 W and reads to 244 m (800 ft). The unit uses a 12-pin connector with a 7.6 m (25 ft) cable and carries an IPX7 water rating, making it the correct replacement transducer for a 75 in. Force Kraken.
PRODUCT DETAILS
- Built-in transducer for the 75 in. Garmin Force Kraken trolling motor
- Garmin ClearVu and SideVu ultra-high-definition scanning sonar
- Traditional high-wide CHIRP sonar (140 to 240 kHz), 350 W
- ClearVu and SideVu at 455 kHz, 800 kHz and 1 MHz, 500 W each
- Reads to 244 m (800 ft) in traditional mode
- 12-pin connector with a 7.6 m (25 ft) cable, IPX7 rated
No exploded diagram available for this product.
No compatible transducers listed for this product.
No compatible products found.
Sonar
| Sonar Types | Traditional high-wide CHIRP, Garmin ClearVu and Garmin SideVu (UHD scanning) |
| Traditional Frequency | CHIRP High Wide (140 to 240 kHz); transmit power 350 W RMS |
| ClearVu / SideVu Frequency | CHIRP 455 kHz (420 to 490 kHz), UHD CHIRP 800 kHz (770 to 840 kHz), UHD CHIRP 1 MHz (1000 to 1120 kHz); transmit power 500 W RMS each |
| Maximum Depth / Range | Traditional 244 m (800 ft); ClearVu 122 m (400 ft) at 455 kHz; SideVu 152 m (500 ft) per side at 455 kHz |
General
| Compatibility | Built-in transducer for the 75 in. Force Kraken trolling motor |
| Connector | 12-pin |
| Cable Length | 7.6 m (25 ft.) |
Physical
| Dimensions (L x W x H) | 218.5 x 51.8 x 27.7 mm (8.61 x 2.04 x 1.09 in.) |
| Water Rating | IPX7 (withstands incidental immersion in up to 1 m of water for up to 30 minutes) |
| Operating Temperature | 0 to 50 C (32 to 122 F) |
