Reactor™ 40 Mechanical/Retrofit/Solenoid Corepack With GHC™ 50 Autopilot Instrument
£1,699.99
/
Tax included.
Shipping calculated at checkout.
010-02794-02
Reactor 40 autopilot for boats with mechanical, solenoid or retrofit steering drives, supplied with the GHC 50 touchscreen instrument. Provides the CCU and ECU 10; the drive unit and rudder feedback are chosen separately.
✓
Available for collection or delivery in ~2 days
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Garmin Reactor 40 Mechanical autopilot with GHC 50 brings GPS-stabilised steering to boats that use a mechanical drive unit or solenoid valve block. The Reactor 40 CCU is a solid-state course computer that senses heading, attitude and rate of turn to hold a course or follow a route accurately, while the supplied ECU 10 drives the steering. It is built for retrofit and mixed installations: it connects to a Garmin or compatible mechanical drive, or to a solenoid drive via the appropriate cable, with a three-terminal potentiometer rudder feedback sensor such as the GRF 10 used on non-Garmin drives. A Shadow Drive sensor can be added on hydraulic steering. Control is through the supplied GHC 50, a 5 in colour touchscreen instrument with NMEA 2000, Wi-Fi and ANT+ connectivity. Dockside and Sea Trial wizards tune performance to your boat.
PRODUCT DETAILS
- GPS-stabilised Reactor 40 autopilot for mechanical, solenoid and retrofit drives
- Built around the Reactor 40 CCU and ECU 10 control unit
- GHC 50 instrument with a 5 in colour touchscreen supplied for helm control
- Drives a mechanical drive unit or solenoid valve block (sold separately)
- Works with a three-terminal potentiometer rudder feedback such as the GRF 10
- NMEA 2000, Wi-Fi and ANT+ connectivity with wireless remote support

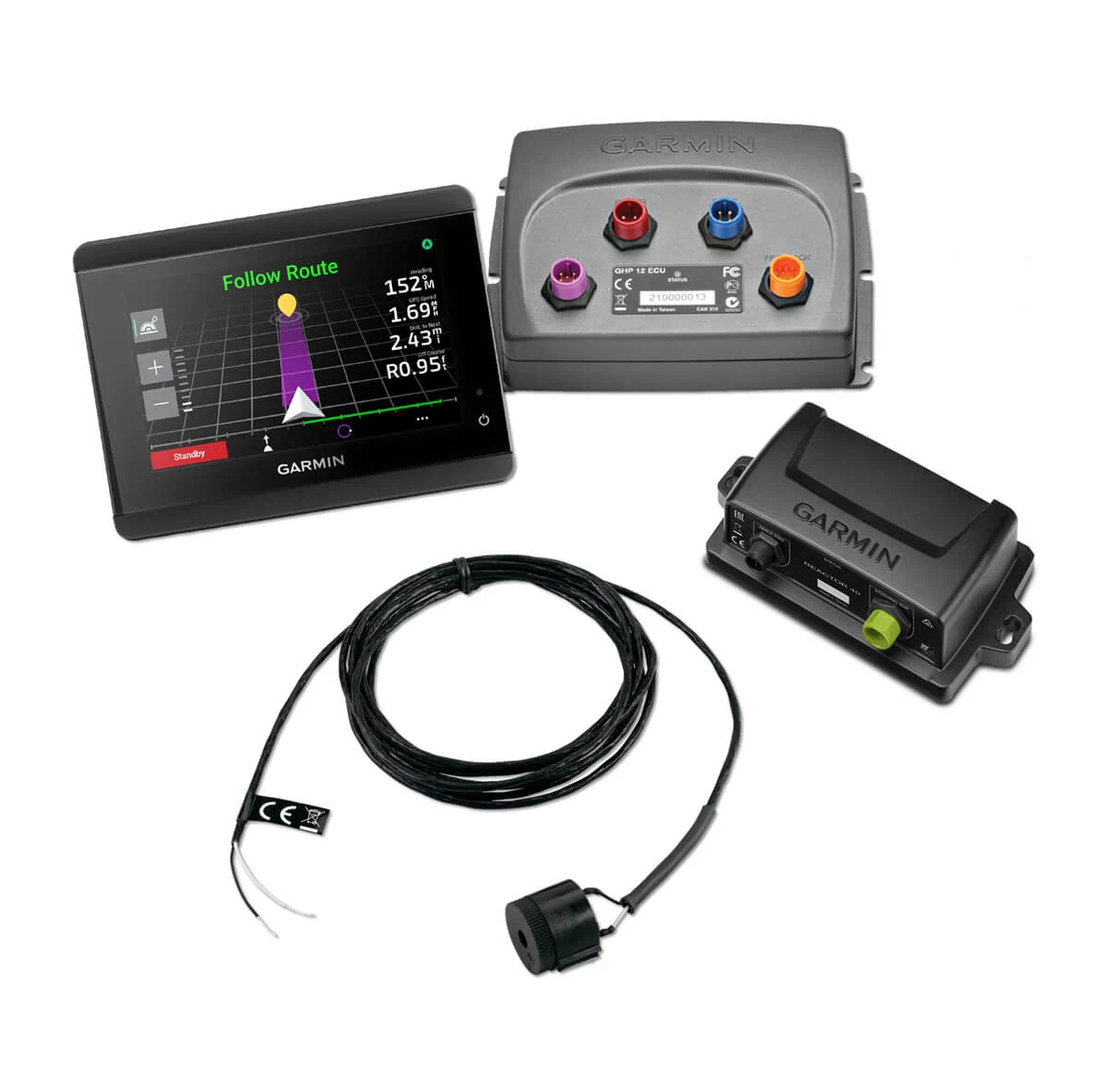

- Reactor 40 CCU (course computer unit)
- ECU 10 electronic control unit
- GHC 50 autopilot instrument
- Audible alarm
- NMEA 2000 T-connectors, drop cables, power cable and terminators
- Mounting hardware and installation instructions
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Autopilot
| Autopilot type | GPS-stabilised marine autopilot (Reactor 40 CCU course computer) |
| Drive type | Mechanical / solenoid; drives a mechanical drive unit or solenoid valve block (sold separately) |
| Helm control | GHC 50 autopilot instrument (included) |
| Manual override | Shadow Drive sensor optional (hydraulic steering only); otherwise an autopilot disable switch is used |
Sensor
| Heading sensor (CCU) | Internal solid-state attitude and rate-of-turn sensor; primary heading source |
| CCU dimensions (L x W x H) | 170 x 90 x 50 mm (6.7 x 3.5 x 2 in.) |
| CCU weight | 200 g (7 oz.) |
| CCU water rating | IEC 60529 IPX7 |
| CCU cable length | 5 m (16 ft.) |
| Compass-safe mounting | Requires handheld-compass interference test; keep 60 cm (2 ft) from iron, magnets and high-current wiring |
Drive
| Control unit | ECU 10 electronic control unit (included) |
| ECU dimensions (W x H x D) | 168 x 117 x 51 mm (6.6 x 4.6 x 2 in.) |
| ECU weight | 680 g (24 oz.) |
| Rudder feedback | Three-terminal potentiometer-type rudder feedback required for non-Garmin drives (for example Garmin GRF 10); frequency-based sensors are not supported |
Controller
| Display | GHC 50: 5 in (12.7 cm) sunlight-readable colour touchscreen, 800 x 480 WVGA |
| Connectivity | NMEA 2000, Wi-Fi and ANT+ (wireless remote support) |
Connectivity
| Network | NMEA 2000 |
| NMEA 2000 LEN | 4 (200 mA) |
| NMEA 2000 input voltage | 9 to 16 Vdc |
Electrical
| ECU supply voltage | 12 to 24 Vdc (ECU input 11.5 to 30 Vdc) |
| ECU fuse | 40 A, blade-type |
Physical
| Included alarm | Audible alarm 23 x 25 mm, 68 g, 3 m cable |
General
| Configuration | Dockside Wizard and Sea Trial Wizard via the GHC 50 or a compatible Garmin chartplotter |
No videos available for this product.
What drives does this work with?
It works with mechanical drive units and solenoid valve blocks. You connect a Garmin drive directly, or adapt an existing drive or solenoid using the appropriate cable (sold separately).
Is a rudder feedback sensor needed?
If you use a drive not sold by Garmin, you must add a three-terminal potentiometer rudder feedback sensor such as the GRF 10. Frequency-based rudder feedback sensors are not supported.
What is the GHC 50?
The GHC 50 is Garmin marine autopilot instrument, with a 5 in sunlight-readable colour touchscreen and NMEA 2000, Wi-Fi and ANT+ connectivity for wired and wireless control.
Can I use the Shadow Drive feature?
The Shadow Drive sensor is an optional accessory that can only be used on a boat with hydraulic steering. On other steering types an autopilot disable switch is used instead.
What power supply is required?
The ECU 10 connects to a 12 to 24 Vdc supply through the supplied 40 A fuse, and the NMEA 2000 network is powered from a 9 to 16 Vdc source.
