Garmin GT10HN-IF Garmin GT10HN-IF

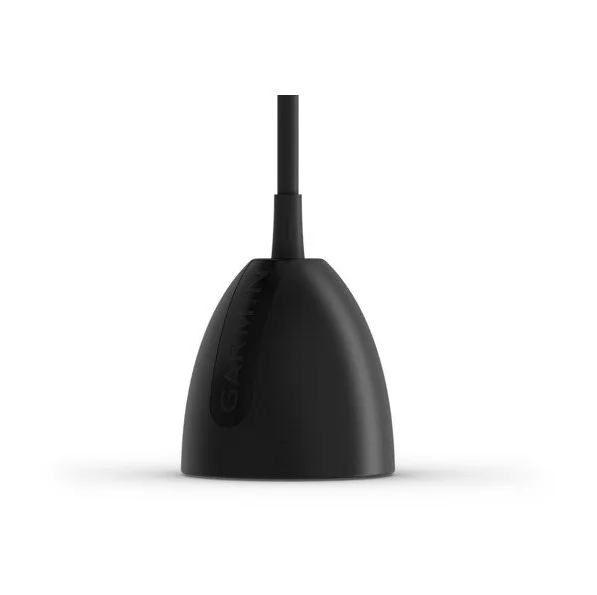

Garmin GT10HN-IF

Garmin

Garmin GT10HN-IF

£179.99
Tax included. Shipping calculated at checkout.
010-12677-00
The Garmin GT10HN-IF is a high-narrow CHIRP ice-fishing transducer whose narrow beam angles give ice anglers clear definition and excellent target separation directly below the hole, ideal for picking out individual fish.
✓ Collection or delivery in 1-2 weeks

Pickup available at Mercury Yacht Harbour

Usually ready in 2-4 days

Description

The Garmin GT10HN-IF is an ice-fishing transducer built around a narrow CHIRP beam. Where wide-beam transducers favour coverage, the GT10HN-IF concentrates the cone for clear definition and excellent target separation directly beneath the hole, helping precision ice anglers distinguish individual fish and fine structure.

The high-narrow 140 to 300 kHz frequency range and 500 W of power read to 244 m (800 ft.) in freshwater. It connects to a compatible Garmin ice-fishing fishfinder through an 8-pin connector and a short 2.4 m (8 ft.) cable suited to portable use on the ice.

PRODUCT DETAILS

  • High-narrow CHIRP ice-fishing transducer
  • Narrow beam angles for clear definition and excellent target separation
  • High-narrow CHIRP 140 to 300 kHz
  • Reads to 244 m (800 ft.) in freshwater
  • Transmit power of 500 W (RMS)
  • 8-pin connector with a short 2.4 m (8 ft.) cable for portable ice use

No exploded diagram available for this product.

No compatible transducers listed for this product.

No spares or accessories listed for this product.

No compatible products found.

General

Transducer typeIce-fishing high-narrow CHIRP traditional sonar transducer

Sonar

Sonar technologyHigh-narrow CHIRP traditional sonar (multibeam-width)
FrequencyCHIRP High-Narrow 140 to 300 kHz
Transmit power (RMS)500 W
Maximum depth244 m (800 ft.) in freshwater

Beam

Beam width7/16 degrees (high/low frequency, -3 dB); narrow beam angles for clear definition and excellent target separation

Mounting

ApplicationIce fishing; used with a compatible Garmin ice-fishing fishfinder rather than hull-mounted

Connectivity

Connector8-pin Garmin transducer connector
Cable length2.4 m (8 ft.)

Compatibility

Compatible chartplotters and soundersCompatible with Garmin ice-fishing fishfinders and chartplotters that support traditional CHIRP sonar, including STRIKER, ECHOMAP and GPSMAP series. Frequency and depth support depend on the device. Some pairings require a Garmin adapter cable (sold separately)

No videos available for this product.

No downloads available for this product.

What is the GT10HN-IF designed for?
It is designed for precision ice fishing. Its narrow beam angles give clear definition and excellent target separation directly below the hole, helping you pick out individual fish.
How does the GT10HN-IF differ from the GT8HW-IF?
The GT10HN-IF uses a high-narrow beam (140 to 300 kHz, 500 W) for target separation, while the GT8HW-IF uses a high-wide beam (145 to 230 kHz, 250 W) for greater coverage. Choose narrow for precision and wide for area coverage.
How deep can the GT10HN-IF read?
It reads to a maximum of 244 m (800 ft.) in freshwater, depending on conditions and the fishfinder model.
What connector does the GT10HN-IF use?
It uses an 8-pin Garmin transducer connector with a short 2.4 m (8 ft.) cable suited to portable ice-fishing use. Some devices require a Garmin adapter cable, sold separately.
