Garmin GT36UHD-TM
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

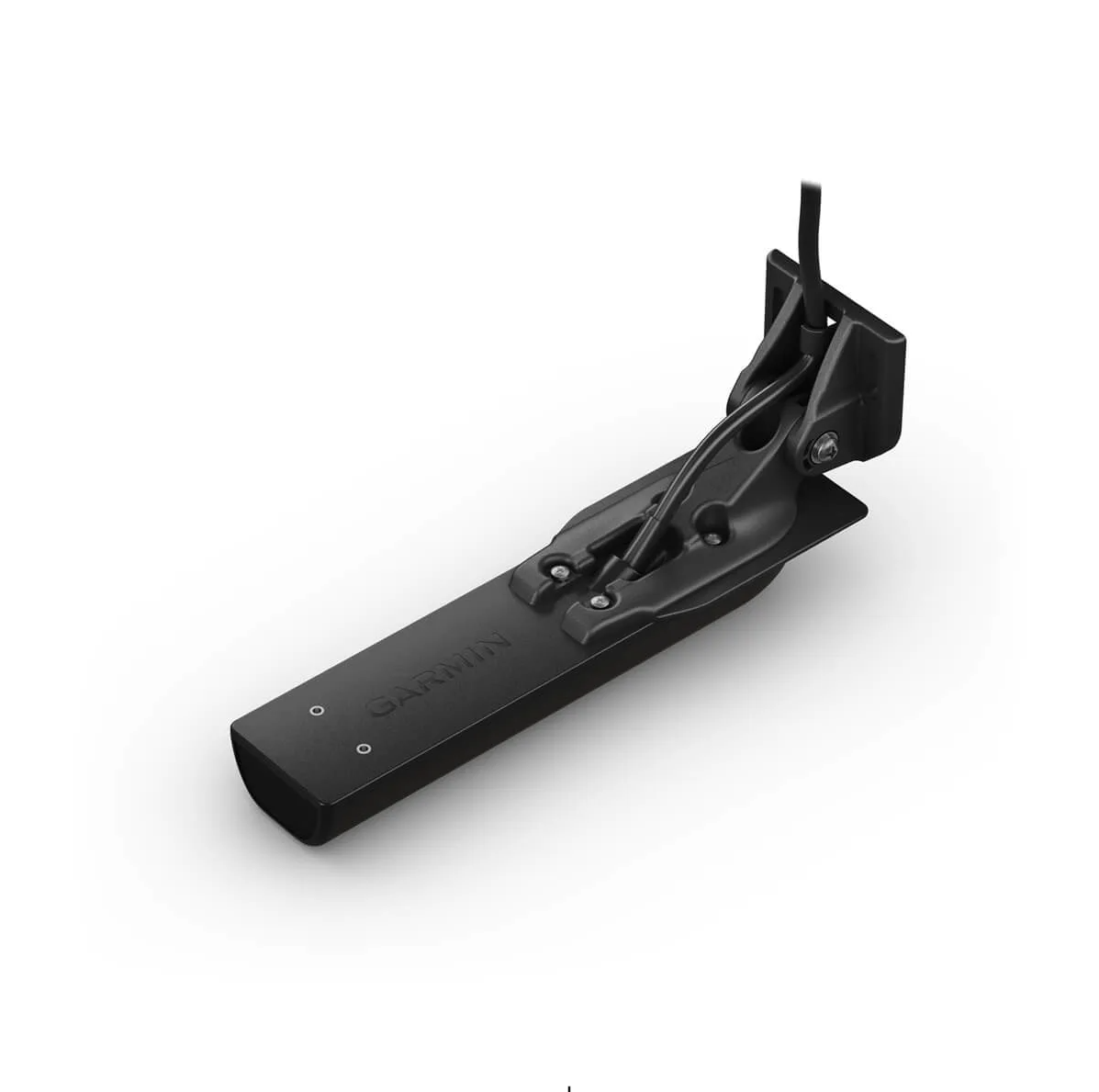

The Garmin GT36UHD-TM is a dedicated scanning transducer that adds Ultra High-Definition ClearVu and SideVu imaging to a compatible Garmin chartplotter. Unlike the all-in-one GT54 and GT56, the GT36 concentrates on scanning sonar and does not include traditional sonar, making it a focused upgrade for anglers who want the clearest possible view of structure beneath and beside the boat.
Three frequencies provide versatility: Ultra High-Definition 1 MHz for the finest detail in shallow water, 800 kHz for a balance of clarity and depth, and 455 kHz CHIRP to push SideVu coverage out to 152 m (500 ft.) per side. The transducer mounts on a transom or trolling motor, carries a fast-response temperature sensor, and runs at 500 W on both ClearVu and SideVu.
PRODUCT DETAILS
- Transom-mount Ultra High-Definition ClearVu and SideVu scanning transducer
- Three scanning frequencies (455 kHz, 800 kHz and 1 MHz) for resolution and range
- Dedicated scanning sonar (no traditional sonar) for the clearest structure imaging
- SideVu coverage up to 152 m (500 ft.) each side at 455 kHz
- Transmit power of 500 W ClearVu and 500 W SideVu (RMS)
- Built-in fast-response water temperature sensor
- 12-pin connector with a 7.6 m (25 ft.) cable
- Mounts on a transom or trolling motor
- GT36UHD-TM transom-mount transducer with 7.6 m (25 ft.) cable
- Transom mounting bracket and hardware
- Cable-entry cover and fixings
- Trolling-motor mounting hardware
- Installation instructions
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
General
| Transducer type | Transom-mount scanning transducer providing Ultra High-Definition ClearVu and SideVu sonar across three frequencies; ClearVu and SideVu only (no traditional sonar) |
Sonar
| Sonar technologies | Garmin ClearVu and Garmin SideVu, including Ultra High-Definition (UHD) scanning. Traditional sonar is not supported |
| ClearVu / SideVu frequencies | CHIRP 455 kHz (420 to 490 kHz); UHD CHIRP 800 kHz (770 to 840 kHz); UHD CHIRP 1 MHz (1000 to 1120 kHz) |
| Transmit power (RMS) | Traditional: not applicable; Garmin ClearVu: 500 W; Garmin SideVu: 500 W |
| Maximum range (ClearVu) | 122 m (400 ft.) at 455 kHz; 61 m (200 ft.) at 1 MHz |
| Maximum range (SideVu) | At 455 kHz: 152 m (500 ft.) each side, 305 m (1,000 ft.) total; at 1 MHz: 61 m (200 ft.) each side, 122 m (400 ft.) total |
Beam
| Beam width (ClearVu / SideVu) | 0.52 x 52 degrees at 1000 kHz; 0.64 x 35 degrees at 800 kHz; 1.1 x 52 degrees at 455 kHz |
Mounting
| Mount type | Transom mount; can also be mounted on a trolling motor |
| Supported transom angles | 0 to 70 degrees |
| Built-in temperature sensor | Yes, with depth, speed and temperature support (D, T) |
Physical
| Dimensions (L x W x H) | 218.5 x 51.8 x 27.7 mm (8.61 x 2.04 x 1.09 in.) |
| Operating temperature range | 0 to 50°C (32 to 122°F) |
| Storage temperature range | -40 to 70°C (-40 to 158°F) |
| Water rating | IPX7 (withstands incidental exposure to water of up to 1 m for up to 30 minutes) |
Connectivity
| Connector | 12-pin Garmin transducer connector |
| Cable length | 7.6 m (25 ft.) |
Compatibility
| Compatible chartplotters and sounders | STRIKER Vivid/Plus (CV and SV series), ECHOMAP UHD2 (CV and SV series), ECHOMAP Ultra 2, GPSMAP 8600xsv, GPSMAP 9000 (9000xsv), GCV 20 black box and GSD 25 sounder module, and the GPSMAP 7x3/9x3/12x3/16x3xsv series. Some pairings require a Garmin adapter cable (sold separately) |
