Garmin

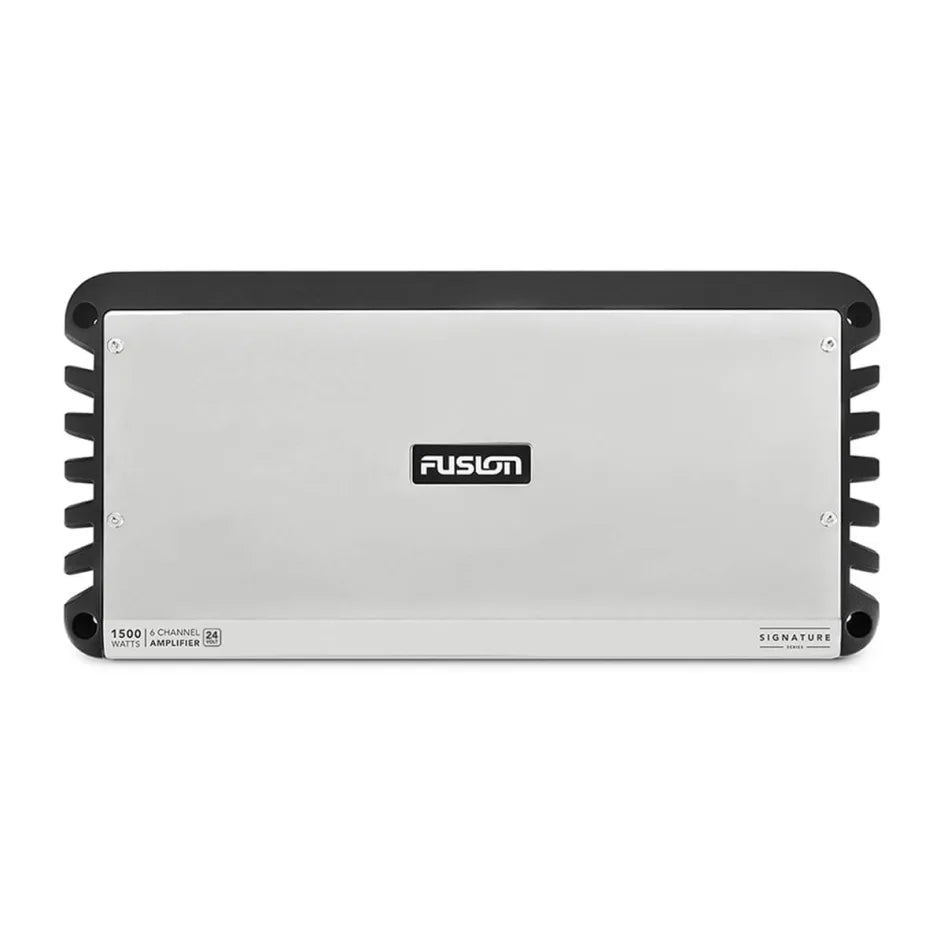

Fusion 24-Volt Signature Series 6 Channel 1500-Watt Marine Amplifier
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
Purpose-built for the marine environment, the Fusion Signature Series 24-Volt amplifier features some of the most impressive environmental protection available, delivering a signature performance out on the water. Engineered specifically for 24 V electrical systems found on larger yachts and commercial vessels, this 6-channel Class-D amplifier drives up to six speakers with 100 W RMS per channel and can be bridged to three channels.
Efficient Class-D circuitry keeps current draw and heat low while a conformal-coated board and rugged construction resist the salt, humidity and vibration of the marine environment. Running natively on 24 V removes the need for voltage converters, and user-adjustable input sensitivity with variable crossovers lets you tune each zone precisely for balanced sound throughout the vessel.
PRODUCT DETAILS
- Native 24 V operation, purpose-built for larger yachts and commercial vessels
- Six-channel Class-D design delivering 100 W RMS per channel, 1500 W peak
- Bridgeable to three channels for extra power or larger speakers
- User-adjustable input sensitivity and variable crossovers for precise multi-zone tuning
- Marinised, conformal-coated build resists salt, humidity and vibration on board
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Amplifier
| Channels | 6 |
| Power per channel (RMS) at 4 Ω | 100 W x 6 @ 28.8 V, <1% THD |
| Total power (peak) | 1500 W |
| Class | Class-D |
| Frequency response | 10 Hz - 40 kHz |
| THD | <1% at rated power |
| Input sensitivity | 0.3 V - 8 V RMS, user adjustable |
Electrical
| Supply voltage | 24 V DC |
| Fuse rating | 60 A inline fuse or circuit breaker |
Installation
| Dimensions (W x D x H) | 420 x 210 x 57 mm |
General
| Warranty | 2 years |
No videos available for this product.
No downloads available for this product.
No frequently asked questions for this product.
