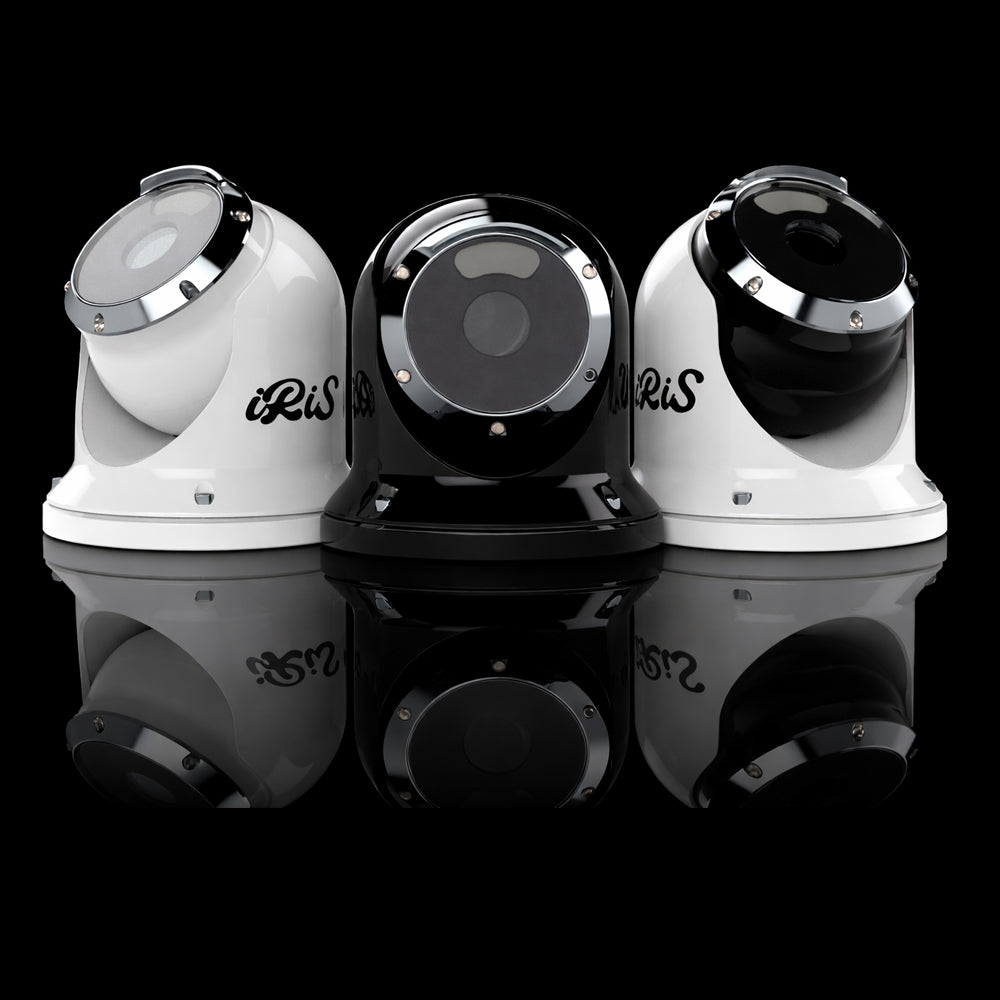

Iris Photon 4K UHD Ultra Low Light IP Camera, Black Ball White Shell, 12mm
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
Photon is Iris's ultra high-definition, ultra low light night vision camera. It combines a 1/1.2 inch 8.3-megapixel CMOS sensor with advanced video processing and AI analytics to deliver full colour, real-time 4K video in conditions approaching pitch black, down to 0.0003 lux. Even under moonless, starlit skies the processor analyses every pixel and dynamically boosts the output stream, and an integrated soft white LED illuminator adds short-range visibility out to around 100 feet.
Designed to sidestep the cost, export restrictions and low-contrast limitations of thermal cameras, Photon adds striking detail to chart plotters that support 4K, such as Garmin's 9000 series, and can be configured to output lower resolutions for standard displays. It streams over ONVIF with multiple simultaneous streams and meets EN60945 EMC, NDAA and IP67 environmental requirements.
Power over Ethernet to the IEEE802.3af standard keeps installation simple: a single CAT5 cable, four mounting holes and a cable entry are all that is needed.
PRODUCT DETAILS
- 4K Ultra HD resolution, 3840 x 2160 (8.3MP), at up to 25/30fps
- Ultra low light operation to 0.0003 lux, full colour video in starlight
- AI-assisted video processing analyses every pixel to boost the image
- Integrated soft white LED illuminator for short-range visibility (around 100ft)
- Power over Ethernet (IEEE802.3af) for single-cable installation
- Compatible with leading 4K chart plotters; multiple configurable streams
- ONVIF compliant (Profile S, G, T, M) with H.265 and H.264 compression
- EN60945 EMC compliant, NDAA compliant and IP67 rated
- 12mm long-range lens for a narrower, longer-reach field of view
No compatible transducers listed for this product.
Camera/Imaging
| Sensor | 1/1.2" CMOS |
| Resolution | 8MP 3840 x 2160 (4K UHD) |
| Frame Rate | Up to 30/25fps (4K); selectable down to 720p |
| Minimum Illumination | Colour 0.0003 lux (F1.0, AGC on) |
| Wide Dynamic Range | 130dB |
| Signal to Noise Ratio | >56 dB |
| Shutter | Auto/Manual 1 to 1/100000 s |
Illumination (IR)
| Illuminator | Integrated soft white LED, short-range to approx 100ft |
Lens
| Iris Type | Fixed, F1.0 |
| Lens | 12mm (long range) |
| Field of View | 54 (H) x 30.7 (V) x 63 (D) degrees |
Video Output
| Compression | U265, H.265, H.264, MJPEG |
| Streams | Multiple configurable streams |
Connectivity
| Protocols | IPv4/IPv6, TCP/UDP, DHCP, RTP/RTSP, HTTP/HTTPS, NTP, FTP, SMTP, SNMP, ONVIF |
| ONVIF | Profile S, G, T, M |
Power
| Power | DC 12V +/-25%, PoE IEEE802.3af; max 6.0W |
Environmental
| Operating Temperature | -20C to +60C |
| Ingress Protection | IP67 (EN60529) |
| EMC / Safety | EN60945 Sections 9 & 10, EN55032, EN50130 |
Compliance
| Security | NDAA Compliant |
Physical
| Dimensions | 139mm dia x 150mm (H) |
| Weight | 1.2 kg |
