Actisense
Actisense Rear panel mount wired, 5 pin micro male
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

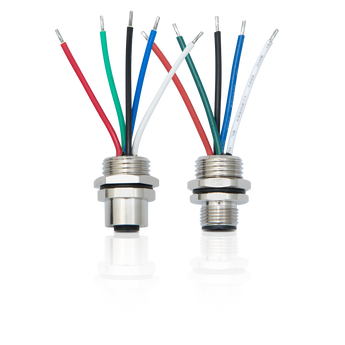

The Actisense A2K-PMW-M lets an NMEA 2000 connection pass through a watertight bulkhead or panel without compromising either the network or the barrier it crosses. It is a rear-mounted, pre-wired 5-pin Micro male connector, and its waterproof seals keep the panel and the NMEA 2000 connection watertight, providing a tidy and permanent way to bring the network through a console, locker or bulkhead.
The connector uses gold-plated brass contacts and a nickel-plated brass housing, mounts through a 15.3 mm hole using a PG9 thread and nut, and is pre-fitted with stripped and tinned 18 AWG wires. It is rated to IP67 when mated, meets IEC 61076-2-101, and is NMEA 2000 approved, RoHS compliant and UL certified. It carries the standard 5 year Actisense guarantee.
PRODUCT DETAILS
- Rear panel-mount, pre-wired 5-pin Micro male connector
- Takes an NMEA 2000 connection through a watertight bulkhead or panel
- Waterproof seals protect both the network connection and the panel
- Mounts through a 15.3 mm hole with a PG9 thread and nut
- IP67 rated when mated, NMEA 2000 approved and UL certified
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Connections
| Type | Rear panel-mount wired, 5-pin Micro male |
Electrical
| Rated current | 4 A |
| Rated voltage | 60 V DC |
Mechanical
| Contacts | Brass, gold plated |
| Mating thread | M12 |
| Housing | Brass, nickel plated |
| Mounting thread | PG9 |
| Mounting hole diameter | 15.3 mm |
| Wires | 18 AWG (stripped and tinned) |
| Weight | 20 g |
Environmental & Approvals
| Protection | IP67 (when mated) |
| Operating temperature | -25°C to +90°C |
| Certification | NMEA 2000 Approved, RoHS compliant, UL certified (E321413), meets IEC 61076-2-101 |
General
| Guarantee | 5 years |
