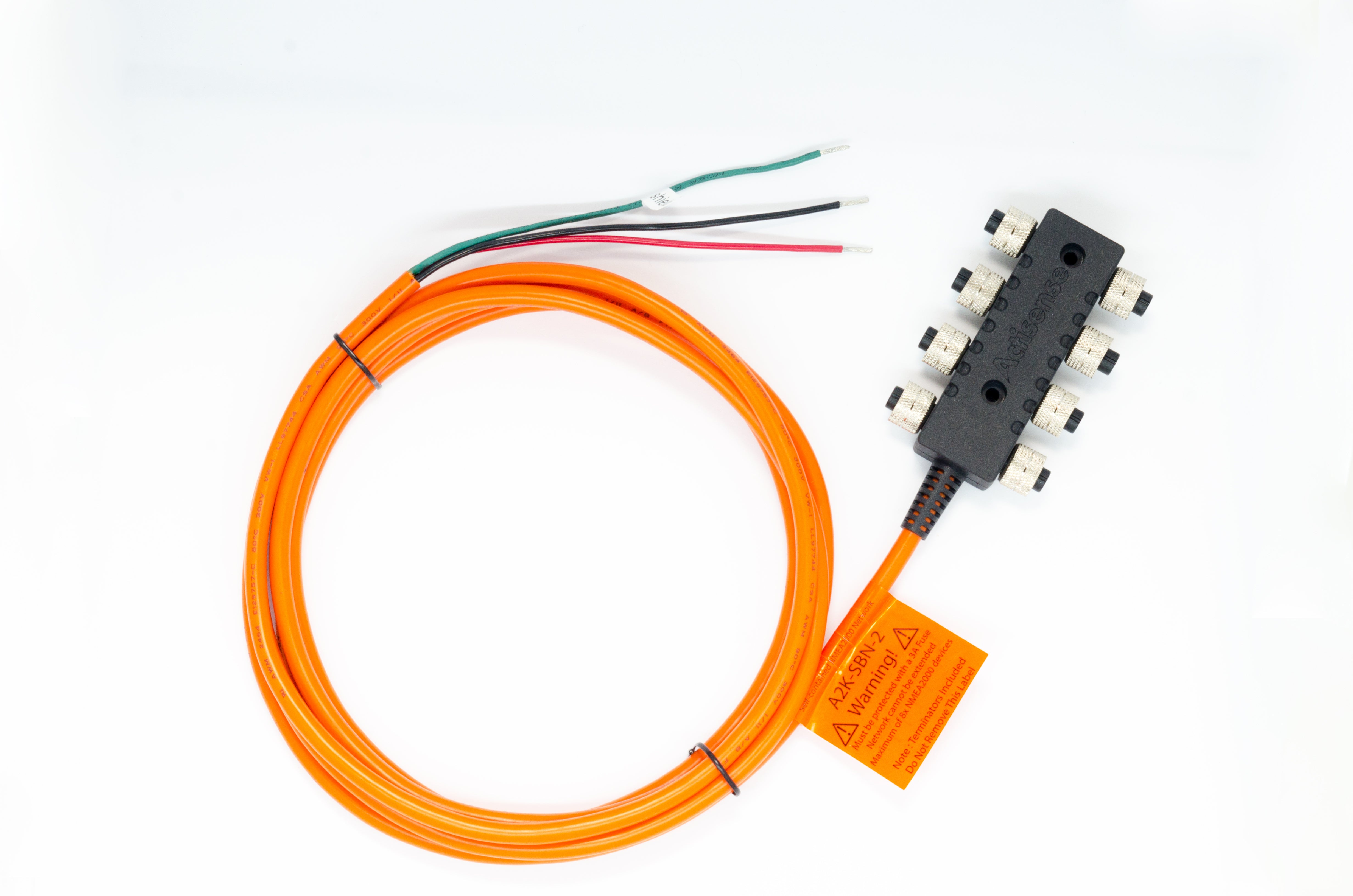

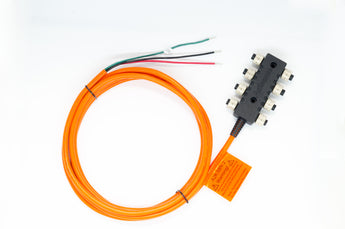

Actisense Self-Contained Boat Network - complete network for eight devices with internal terminators and power feed.
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Self-Contained Boat Network (SBN-2) makes installing a small NMEA 2000 network quicker and easier than ever. It packs the equivalent of eight tee-pieces into a single over-moulded case with the termination resistors already built in, so there are no separate tees to chain together and no terminators to add. Once the attached three-metre power cable is connected to the boat supply, a correctly terminated network for up to eight devices is ready to use, taking plug and play to the next level.
By providing a complete, correctly terminated network in one compact unit, the SBN-2 takes up far less space than a backbone built from individual tees and drops, and reduces the amount of cabling, connectors, cost and weight. Its ruggedised, flame-retardant housing, metal coupling nuts and integrated EMI shield suit wet and harsh marine conditions, while the orange UL-rated power cable is colour coded to stand out from the drop cables. Note that the SBN-2 cannot be extended beyond eight device drops.
PRODUCT DETAILS
- Complete self-contained NMEA 2000 network in one compact case
- Equivalent of eight tee-pieces with integrated termination resistors
- Eight NMEA 2000 drop connections
- Ruggedised, flame-retardant over-moulded housing with metal coupling nuts
- Integrated EMI shield for reliable data in noisy environments
- Orange, UL-rated 3 metre power cable, colour coded and pre-stripped
- Quick installation with no special tools required
- A2K-SBN-2 Self-Contained Boat Network (8-way)
- Integrated 3 metre orange UL-rated power cable (pre-stripped and tinned)
- Built-in termination resistors
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Network
| Drop Connections | 8 x NMEA 2000 (M12 Micro female) |
Electrical
| Rated Current | 3 A |
| Rated Voltage | 60 V DC |
| Internal Termination Resistors | 2 x 120Ω 250mW |
Mechanical
| Female Contact | Phosphor bronze, gold plated |
| Contact Polarisation | Standard M12 A-polarisation |
| Mating Thread | M12 |
| Housing | TPU (halogen free) over epoxy-filled PBT |
| Flammability Rating | UL94 V-0 |
| Internal Housing Shield | Copper foil |
| Weight | 410g |
Cable
| Cable Length | 3 m |
| Cable Jacket | 0.8mm nom. PVC, orange |
| Cable Outer Diameter | 6.8mm |
| Power Wires | 16 AWG |
Environmental & Approvals
| IP Rating | IP67 (when mated) |
| Operating Temperature | -25°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Certification | NMEA 2000 Approved, RoHS Compliant, UL Certified Cable (E129757) |
| Guarantee | 5 years |
