Actisense
Actisense Micro T piece
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Actisense Micro T-Piece is used wherever a single drop or port is needed from an NMEA 2000 backbone to connect an additional device. Its quality-engineered connectors are shaped for easy, secure mating, and the tee accepts Actisense Micro cable assemblies even when field-fit connectors have been used to make them up, which makes it unusually flexible when a network is built or altered on board.

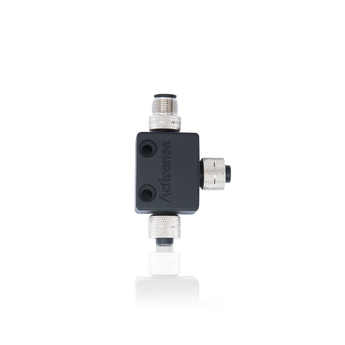

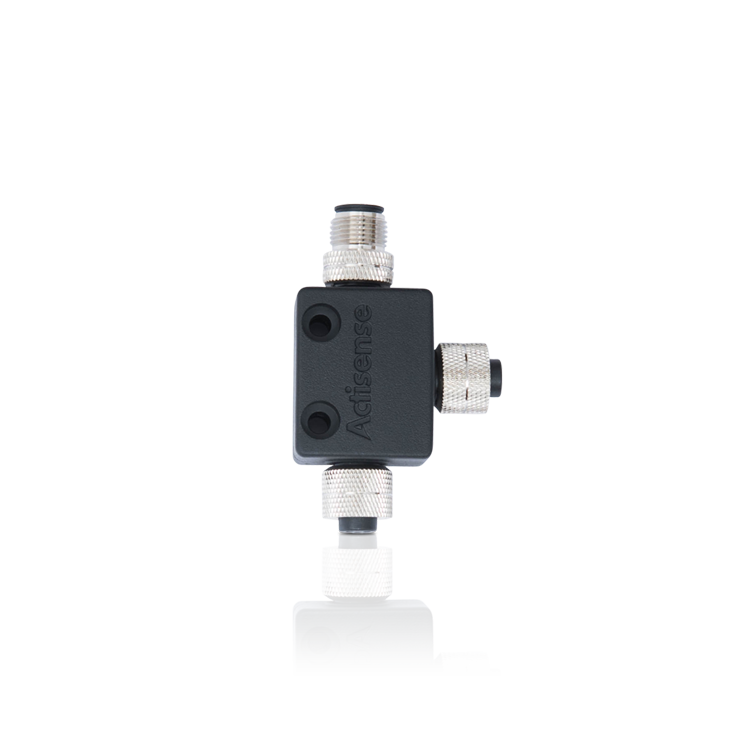

The T-piece presents two female connectors and one male connector, each with gold-plated contacts and a glass-filled contact carrier, housed in a rugged PVC body. It is UL certified to UL1277, rated to IP67 when mated and, like the rest of the Actisense connector range, is fully NMEA 2000 certified and covered by the standard 5 year guarantee.
PRODUCT DETAILS
- Adds one device drop or port to an NMEA 2000 backbone
- Two female and one male connector with gold-plated contacts
- Mates with Actisense Micro cable assemblies even when field-fit connectors are used
- Rugged PVC housing, UL certified to UL1277 and IP67 rated when mated
- Fully NMEA 2000 certified and compatible with other NMEA 2000 hardware
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Connections
| Configuration | 2 x female, 1 x male |
| Connector type | NMEA 2000 Micro (M12) |
Electrical
| Rated current | 4 A |
| Rated voltage | 60 V DC |
Mechanical
| Male contact | Brass, gold plated |
| Female contact | Phosphor bronze, gold plated |
| Contact carrier | PA66 (30% glass filled), black |
| Mating thread | M12 |
| Housing | PVC, black |
| Weight | 47 g |
Environmental & Approvals
| Protection | IP67 (when mated) |
| Operating temperature | -25°C to +70°C |
| Storage temperature | -40°C to +85°C |
| Certification | NMEA 2000 Approved, UL certified (UL1277), RoHS compliant |
General
| Guarantee | 5 years |
