Actisense
Actisense Micro terminator male
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

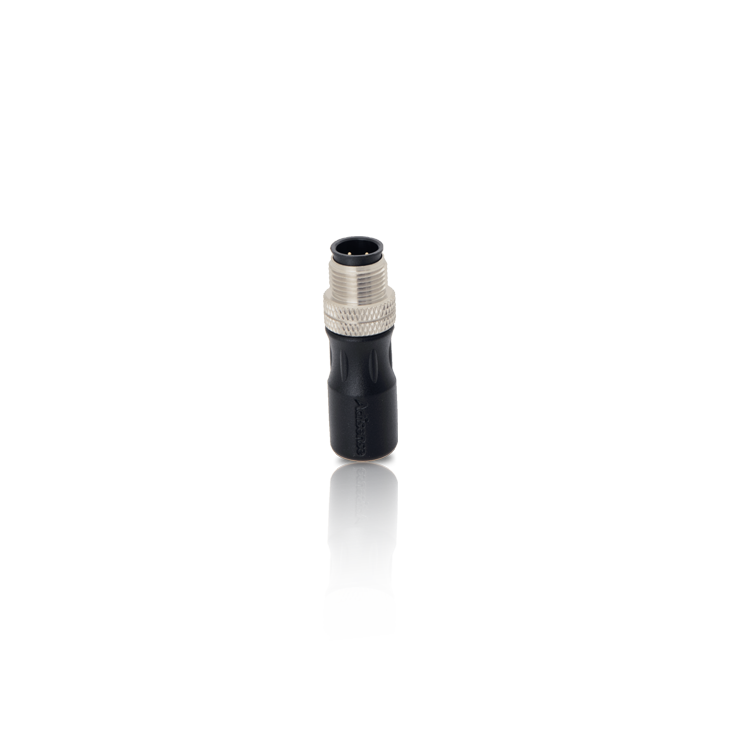

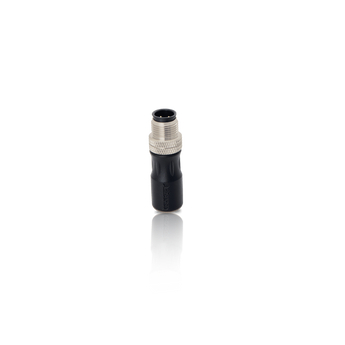

The Actisense A2K-TER-M is a male Micro termination resistor for NMEA 2000 networks. Every NMEA 2000 backbone must have exactly two termination resistors fitted, one at each end, to give the bus its correct electrical characteristics and to preserve signal integrity. This is the male version, for use where the end of the backbone presents a female connector.
The terminator houses a 120 ohm resistor and uses gold-plated brass male contacts in a glass-filled carrier and rugged PVC housing, so it is exceptionally robust in harsh marine conditions while remaining quick and secure to fit. It is UL certified to UL1277, rated to IP67 when mated, and is fully NMEA 2000 certified and covered by the standard 5 year Actisense guarantee.
PRODUCT DETAILS
- Male NMEA 2000 Micro terminator for one end of the backbone
- Contains a 120 ohm 1% termination resistor for correct bus operation
- Gold-plated brass contacts in a rugged PVC housing
- UL certified to UL1277 and IP67 rated when mated
- Fully NMEA 2000 certified for quick, secure installation
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Connections
| Type | NMEA 2000 male Micro terminator |
Electrical
| Rated voltage (power pair) | 60 V DC |
| Rated current | 4 A |
| Internal termination resistor | 120 ohm ± 1%, 500 mW |
Mechanical
| Male contact | Brass, gold plated |
| Contact carrier | PA66 (30% glass filled), black |
| Mating thread | M12 |
| Housing | PVC, black |
| Weight | 15 g |
Environmental & Approvals
| Protection | IP67 (when mated) |
| Operating temperature | -25°C to +70°C |
| Storage temperature | -40°C to +85°C |
| Certification | NMEA 2000 Approved, UL certified (UL1277), RoHS compliant |
General
| Guarantee | 5 years |
No videos available for this product.
No downloads available for this product.
No frequently asked questions for this product.
