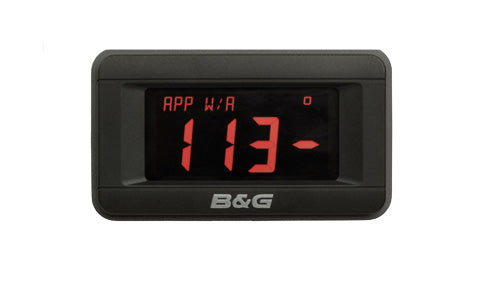

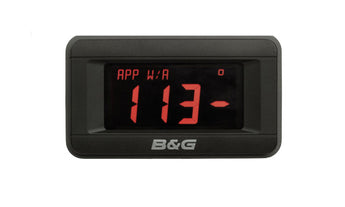

B&G 10/10 HV Display for Triton or H5000 Systems
Manufacturer Part Number:
000-11087-001
Manufacturer Part Number:
000-11087-001
10/10HV display for H5000 or Triton systems. HVision presents the clearest information through unique display technology. The 10/10HV offers a lightweight, high performance data display for every application. Able to store 14 configurable pages, whether you want to see True Wind Angle, COG or SOG, getting the crucial information in the right place is simple. This is the ideal display for focus areas such as pedestals and trimming positions with zero condensation and outstanding contrast.
Home or Marina Delivery
Pick up at Hamble
More Information
B&G HV 20/20, H3000 GFD and GPD Sun Cover
B&G 20/20HV Bezel (black)
B&G 20/20HV Bezel (White)
B&G 20/20HV Bezel (Red)
B&G 20/20HV Bezel (Green)
B&G 20/20HV Bezel (Blue)
B&G 20/20HV Bezel (Yellow)
B&G 10/10HV Bezel (black)
B&G 10/10HV Sun Cover
B&G HV 30/30 Sun Cover
Hvision Instrument Navigation
10/10 HV display
Technical specifications
Dimensions: 114 x 66 x 54mm/ 4,4” x 2,5” x 2,1”
Weight (w/ standard cable): 0.3kg/ 0,6 lbs
Construction: Moulded ABS
Supply Voltage: 12V
Power Consumption lights on/off: 50mA/25mA
Sealing: IP67
Display Resolution: Custom Segmented HVision
Operating Temperature: -10 to 55˚C/14 to 131˚F
Humidity Range: Up to 95%
Compass Safe Distance: 200mm/ 7.9”
Interfaces: FastNet
20/20 HV display
Technical specifications
Dimensions: 178 x 114 x 56mm/7 x 4.5 x 2.2”
Weight (w/ standard cable): 0.9kg/ 1,9 lbs
Construction: Moulded ABS w/ aluminium rear case
Supply Voltage: 12V
Power Consumption lights on/off: 50mA/25mA
Sealing: IP67
Display Resolution: Custom Segmented HVision
Operating Temperature: -10 to 55˚C/14 to 131˚F
Humidity Range: Up to 95%
Compass Safe Distance: 200mm/7.9”
Interfaces: FastNet
30/30 HV display
Technical specifications
Dimensions: 249 x 156 x 50mm/9.8 x 6.1 x 2”
Weight (w/ standard cable): 1.2kg/2.7lbs
Construction: Moulded ABS w/ aluminium rear case
Supply Voltage: 12V
Power Consumption lights on/off: 50mA/25mA
Sealing: IP67
Display Resolution: Custom Segmented HVision
Operating Temperature: -10 to 55˚C/14 to 131˚F
Humidity Range: Up to 95%
Compass Safe Distance: 200mm/7.9”
Interfaces: FastNet
40/40 HV display
Technical specifications
Dimensions: 323 x 209 x 52mm/12.8 x 8.2 x 2”
Weight: (w/standard cable) 2.3kg/5.1lbs
Construction: Moulded ABS w/ aluminium rear case
Supply Voltage: 12V
Power Consumption lights on/off: 50mA/25mA
Sealing: IP67
Display Resolution: Custom Segmented HVision
Operating Temperature: -10 to 55˚C/14 to 131˚F
Humidity Range: Up to 95%
Compass Safe Distance: 200mm/7.9”
Interfaces: FastNet
