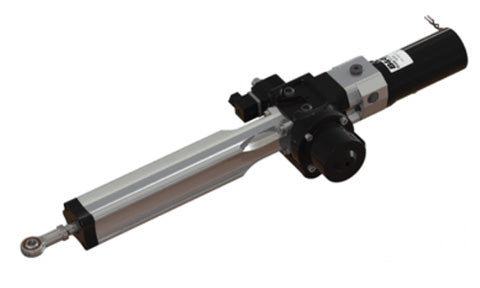

B&G, Simrad T1 Hydraulic Linear Drive 12v Up to 12,000kg Displacement
Manufacturer Part Number:
RAM-T1-12V
Manufacturer Part Number:
RAM-T1-12V
High power, efficient drive units for maximum power with minimum consumption. Ram allows the Power Steer Mode on the Pilot to be used in cas of manual steering failure. Integrated hydraulic system: no external hoses, reservoirs etc. Max Boat Size 12000 kg. Stroke 250 mm. Compatible Computers H5000, NAC-3
Home or Marina Delivery
Pick up at Hamble
More Information
Autopilot Drive Unit Navigation
Technical Data
Voltage: 12 VDC
Typical Amp-hour: 60 kg at 25% duty: 2.0 Amps
Typical Current Intermittent 350 kg: 19.0 A
Hard-over time (Nominal): 13 seconds
Volume (average): 300cc
Ingress protection: IP67
EMC Protection BS EN 60945:2002
Ignition Protection: BS EN 28846:1993
Ambient operating Temperature: -15 to + 55 deg C
Max Operating Thrust: 703 kg (Intermittent)
Clutch coil: 12 watt
Clutch connection DIN 43650 (4-9 mm cable)
Fluid ISO VG10 to VG40 hydraulic mineral fluid to ISO 6743-4 HV
The following commercial fluids are suitable: Fuchs Renolin B 15 HV1 Seastar HA5430
Weight: 8 kg
