B&G, Simrad T2 Hydraulic Linear Drive 12v Up to 20,000kg Displacement
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Manufacturer-backed extended cover provided by Navico — add up to 3 extra years.
Extended cover is added to your order and confirmed with your warranty documentation.
Description

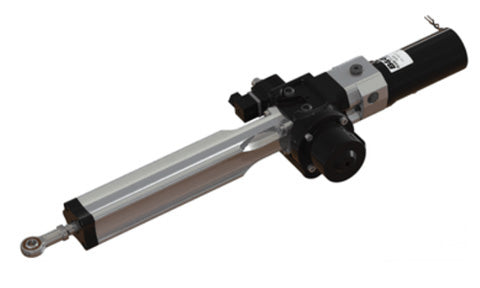

The B&G (and Simrad) T2 hydraulic linear drive is a high-power, efficient drive unit that combines the cylinder, pump, motor, clutch and reservoir in a single pre-filled, sealed actuator. This integrated design means there are no external hoses or reservoirs to install. This 12 V version suits boats up to 20,000 kg displacement and delivers a typical maximum thrust of 700 kg with a 9-second hard-over time. When the clutch is disengaged the cylinder moves freely with the primary steering, and internal relief valves protect the unit from rudder strikes and grounding. Like all ram drives it allows Power Steer mode to be used in the event of manual steering failure. Designed for under-deck installation and compatible with H5000 and NAC-3 autopilot computers.
PRODUCT DETAILS
- Self-contained T2 hydraulic linear drive: cylinder, pump, motor, clutch and reservoir in one sealed unit
- 12 V version for boats up to 20,000 kg displacement
- Typical maximum thrust of 700 kg with a 9-second hard-over time
- Integrated hydraulic system with no external hoses or reservoirs
- Clutch disengages to allow normal manual steering, and supports Power Steer mode
- Compatible autopilot computers: H5000, NAC-3
No exploded diagram available for this product.
No compatible transducers listed for this product.
No compatible products found.
General
| Type | Self-contained hydraulic linear drive (actuator) |
| Maximum Boat Displacement | Up to 20,000 kg |
| Steering System | Mechanical primary steering that can be back driven |
Performance
| Typical Max Thrust | 700 kg |
| Max Operating Thrust | 700 kg (intermittent) |
| Typical Max Torque | 120-160 kg depending on tiller arm (190-245 mm) |
| Hard-over Time | 9 seconds (full stroke at 5 kg) |
| Stroke | 255 mm |
| Relief Valve Setting | 62 bar (730 kg) |
Electrical
| Supply Voltage | 12 V DC |
| Typical Current | 2.5 A (60 kg at 25% duty) |
| Clutch Coil | 12 W, DIN 43650 connection |
| Compatible Autopilot Computers | H5000, NAC-3 |
Hydraulic Fluid
| Fluid | ISO VG10 to VG40 mineral hydraulic fluid (ISO 6743-4 HV) |
Environment
| Operating Temperature | -15 to +55 C |
| Ingress Protection | IP67 |
Physical
| Weight | 8 kg |
Installation
| Mounting | Under-deck only |
