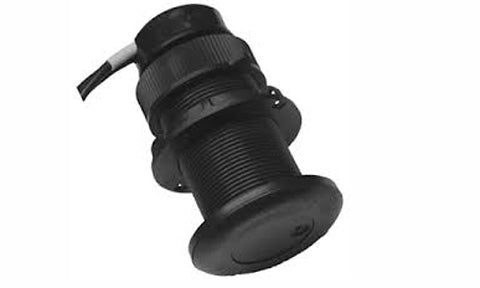

B&G, Lowrance, Simrad DT800 Smart Plastic Depth, Temp Transducer 0 degree Tilted Element B&G, Lowrance, Simrad DT800 Smart Plastic Depth, Temp Transducer 0 degree Tilted Element
B&G, Lowrance, Simrad DT800 Smart Plastic Depth, Temp Transducer 0 degree Tilted Element

B&G

B&G, Lowrance, Simrad DT800 Smart Plastic Depth, Temp Transducer 0 degree Tilted Element

£407.99
Tax included. Shipping calculated at checkout.
000-11738-001
A low-profile plastic through-hull depth and temperature transducer with a 0 degree tilted element, running at 235 kHz so it will not interfere with a 50/200 kHz fishfinder. 3 m Micro-C cable.
✓ Available for collection or delivery in ~1 day

Pickup available at Mercury Yacht Harbour

Usually ready in 2-4 days

Navico Extended Warranty

Manufacturer-backed extended cover provided by Navico — add up to 3 extra years.

Extended cover is added to your order and confirmed with your warranty documentation.

Description

The DT800 Smart Depth Temperature 0 degree Tilted Element Low Profile Pastic Through Hull Retractable Transducer. Operates at 235kHz so there is no interference with your 50/200 kHz fishfinder transducer. Compatible hull material: Metal and fiberglass. 3.0 meter cable with Micro-C connector. Hole diameter for installation: 2 inch.

PRODUCT DETAILS

  • Plastic through-hull housing
  • 0 degree (untilted) sensor element
  • 2m Micro-C cable (without speed connection)
  • NMEA 2000

No exploded diagram available for this product.

No compatible transducers listed for this product.

No spares or accessories listed for this product.

No compatible products found.

Connectivity

NMEA 2000 Connectivity1 x NMEA 2000 Micro-C lead, 4 LEN
N2K PGNs59392, 60928, 126208, 126464, 126996, 128267, 130310, 130311, 130312

Electrical

Supply Voltage12 V DC (9 - 16 V DC)

Physical

Mounting TypeThru Hull
Weight0.9 kg (2.0 lbs)

Sonar

Output power100 W

No videos available for this product.

No downloads available for this product.

No frequently asked questions for this product.
