B&G

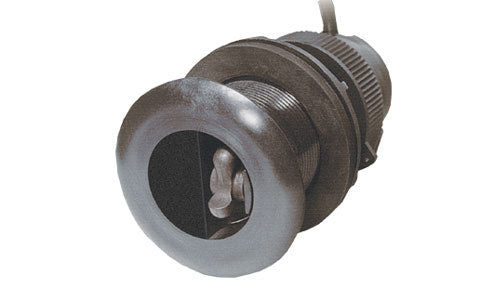

B&G, Lowrance, Simrad IDST810 Smart Plastic Depth, Speed, Temp Transducer

£443.99
Tax included. Shipping calculated at checkout.
000-15735-001
The B&G IDST810 is a smart plastic thru-hull transducer providing depth, speed and water temperature over NMEA 2000. Integrated electronics deliver calibrated data straight to your instruments, with no separate sounder module required. A retractable insert lets the paddlewheel and housing be cleaned afloat.
✓ Available for collection or delivery in ~1 day

Pickup available at Mercury Yacht Harbour

Usually ready in 2-4 days

Navico Extended Warranty

Manufacturer-backed extended cover provided by Navico — add up to 3 extra years.

Extended cover is added to your order and confirmed with your warranty documentation.

Description

The IDST810 Smart Speed, Depth Temperature Low Profile Plastic Through Hull Retractable Transducer.Operates at 235kHz so there is no interference with your 50/200 kHz fishfinder transducer. Compatible hull material: metal and fiberglass. 0.5 meter cable with Micro-C connector. Hole diameter for installation: 2 inch - Replaces DST800

PRODUCT DETAILS

  • Depth/Speed/Temperature
  • 235kHz
  • Highly Accurate
  • Innovative self-closing valve housing
  • NMEA2000 Connectivity

No exploded diagram available for this product.

No compatible transducers listed for this product.

No spares or accessories listed for this product.

No compatible products found.

Performance

Operating Frequency235 kHz
Minimum Depth Range0.5 m (1.6 ft)
Maximum Depth RangeUp to 100 m (330 ft) - NMEA 2000
Data Update Rate1 per second
Speed Pulse Rate20,000 pulses per nautical mile (5.6 Hz per knot)
Temperature Sensor Range-10C to 40C (14F to 104F)

Electrical

Supply Voltage9 - 16 V DC
Power Consumption (Max)1.8 W

Connectivity

InterfaceNMEA 2000
NMEA 2000 Load Equivalency Number (LEN)4
Cable0.5 m cable with Micro-C connector

Physical

Housing MaterialPlastic
Housing DesignLow-profile through-hull with innovative self-closing valve
Installation Hole Diameter2 inch (50.8 mm)
Weight0.9 kg

Approvals

ComplianceComplies to IEC60945

No videos available for this product.

No downloads available for this product.

What does the IDST810 measure?
The IDST810 is an all-in-one smart sensor that measures depth, boat speed and water temperature through a single low-profile plastic through-hull housing.
Why does the IDST810 use 235 kHz?
It operates at 235 kHz so it does not interfere with a separate 50/200 kHz fishfinder transducer on the same vessel.
Does the IDST810 replace the DST800?
Yes. The IDST810 is the direct replacement for the discontinued DST800 plastic smart transducer (22098552) and connects to NMEA 2000 networks.
What hull material and hole size does it suit?
The plastic housing is suited to metal and fibreglass hulls and requires a 2 inch (50.8 mm) installation hole. It features an innovative self-closing valve so the sensor insert can be removed without flooding.
What is the maximum depth range?
On NMEA 2000 the smart sensor reads depth up to 100 m (330 ft), with a minimum depth range of 0.5 m (1.6 ft).
