B&G, Simrad DD15 Direct Mechanical Drive
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Manufacturer-backed extended cover provided by Navico — add up to 3 extra years.
Extended cover is added to your order and confirmed with your warranty documentation.
Description

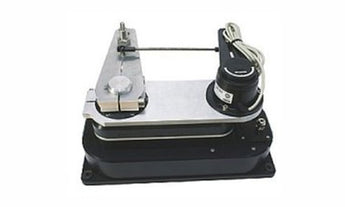

The DD15 Direct Drive is a compact, very strong electro-mechanical autopilot drive that is more efficient than most hydraulic and electro-mechanical drive units. It combines a flat-wound (pancake) electric motor with an efficient planetary and spur gearbox to deliver a maximum output torque of 150 Kgm (equivalent to 150 kg of force at the end of a 1 m tiller) while weighing just 12 kg, and it is built for 24 hours a day continuous operation. The drive suits boats from 30 to 45 ft with a mechanical steering system that can be back driven. A patented electro-magnetic clutch lets the unit be back-driven with the force of a fingertip, so the manual steering stays as sensitive as it would be without the drive fitted. The DD15 includes the Simrad RF300 rudder feedback unit with transmission link and 10 m of cable; a draglink (DL2030, DL3040 or DL4050) is ordered separately to suit the installation.
PRODUCT DETAILS
- Direct drive autopilot unit for sailboats between 30-40ft
- Highly accurate: minor incremental adjustments provide a smooth auto-steering experience
- Powerful: maximum power output of 150 kg/m for outstanding performance even under heavy loads
- Lightweight at just 12 kg
- High sensitivity electromechanical clutch can be back-driven with the force of a fingertip, keeping mechanical steering as sensitive as without the drive attached
- Integrated rudder feedback unit can be fitted
- Compatible Computers: NAC-3
No exploded diagram available for this product.
No compatible transducers listed for this product.
General
| Type | Electro-mechanical direct drive (rotary) autopilot drive unit |
| Recommended Boat Length | 30 to 45 ft l.o.a. (or up to 150 Kgm rudder torque) |
| Steering System | Mechanical steering that can be back driven |
| Includes | Simrad RF300 rudder feedback unit with transmission link and 10 m (33 ft) cable |
| Draglink | Required to suit installation (DL2030 / DL3040 / DL4050, ordered separately) |
Drive
| Output Torque | 150 Kgm (equivalent to 150 kg at the end of a 1 m tiller) |
| Clutch | Patented electro-magnetic engagement clutch (1.2 A at 12 V) |
| Duty | Designed for 24 hours per day continuous operation |
Electrical
| Motor Voltage | 12 V |
| Clutch Voltage | 12 V |
| Average Power Consumption | 2 A at 12 V |
| Compatible Autopilot Computers | AC42N, NAC-3, AC70 (30 A); AC12 / AC20 also supported |
Mechanical
| Rudder Travel | 72 degrees (2 x 36 degrees), 130 degrees output-lever travel |
| Output Lever Centres | 165 mm standard (re-positionable to 130 mm) |
Physical
| Weight | 12 kg (26.5 lbs) |
