B&G, Simrad NAC-2 VRF Autopilot Core Pack B&G, Simrad NAC-2 VRF Autopilot Core Pack
B&G, Simrad NAC-2 VRF Autopilot Core Pack

B&G

B&G, Simrad NAC-2 VRF Autopilot Core Pack

£1,379.99
Tax included. Shipping calculated at checkout.
000-13337-001
The NAC-2 VRF Autopilot Core Pack pairs the low-current NAC-2 autopilot computer with the Precision-9 heading sensor and uses Virtual Rudder Feedback, so no separate rudder feedback unit is required. Ideal for smaller vessels up to 10 metres (33 feet), it drives small hydraulic and mechanical drives and also provides solenoid output. Virtual Rudder Feedback simplifies installation aboard outboard and sterndrive boats.
✓ Collection or delivery in 1-2 weeks

Pickup available at Mercury Yacht Harbour

Usually ready in 2-4 days

Navico Extended Warranty

Manufacturer-backed extended cover provided by Navico — add up to 3 extra years.

Extended cover is added to your order and confirmed with your warranty documentation.

Description

NAC-2 VRF Core Pack: Comprising of the low-current NAC-2 autopilot computer and Precision-9 compass. The low-current NAC-2 autopilot computer is ideal for smaller vessels, designed to run small hydraulic drives and mechanical drives for vessels up to 10 metres (33 feet) in length. Also provides solenoid output. Output of 8 amps continuous, 16 amps peak. Clutch output (3 amps maximum). Virtual rudder feedback for simplified installation aboard outboard and sterndrive (inboard/outboard) boats. Supports Simrad RF25 rudder feedback units. NMEA 2000® connectivity to heading sensors, rudder feedbacks, dedicated autopilot controllers, and multifunction displays

PRODUCT DETAILS

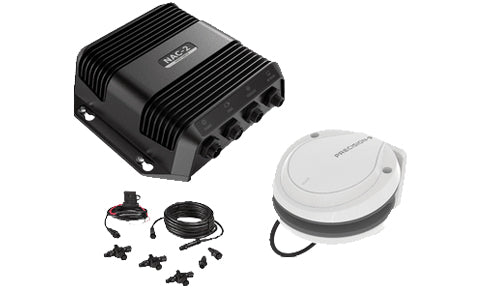

  • NAC-2 VRF Core Pack comprising the low-current NAC-2 autopilot computer and Precision-9 compass (Virtual Rudder Feedback - no separate rudder feedback unit)
  • Ideal for smaller vessels up to 10 metres (33 feet) in length
  • Designed to run small hydraulic drives and mechanical drives, also provides solenoid output
  • Virtual rudder feedback simplifies installation aboard outboard and sterndrive boats
  • NMEA 2000 connectivity to heading sensors, autopilot controllers, and multifunction displays
  • 1 x NAC-2 Autopilot Computer
  • 1 x Precision-9 Compass
  • NAC-2 cables and NMEA 2000 networking components

No exploded diagram available for this product.

No compatible transducers listed for this product.

Image coming soon

B&G, Simrad Helm-1 For Outboard Pilot NAC-1 and NAC-2

No compatible products found.

General

Pack ContentsNAC-2 autopilot computer and Precision-9 compass (Virtual Rudder Feedback - no separate rudder feedback unit)
Recommended Boat LengthUp to 10 metres (33 feet)
Rudder FeedbackVirtual Rudder Feedback (VRF) - no physical rudder feedback unit required
Warranty2 years

Electrical

Computer Drive Output12/24 V DC, max 8 A continuous / 12 A peak

Connectivity

NetworkNMEA 2000

No videos available for this product.

What is included in the NAC-2 VRF Core Pack?
The pack contains the low-current NAC-2 autopilot computer and the Precision-9 compass, with NAC-2 cables and NMEA 2000 networking components. It uses Virtual Rudder Feedback, so no separate rudder feedback unit is supplied or required.
What is Virtual Rudder Feedback?
Virtual Rudder Feedback (VRF) is a Simrad technology that calculates rudder position without a physical feedback sensor, simplifying installation aboard outboard and sterndrive (inboard/outboard) boats.
What size of boat is this pack for?
It suits smaller vessels up to 10 metres (33 feet), driving small hydraulic and mechanical drives, and provides solenoid output.
When should I choose a pack with a physical rudder feedback instead?
Boats with inboard engines, larger vessels and special applications generally benefit from a physical RF25 rudder feedback unit, as found in the standard NAC-2 Core Pack.
