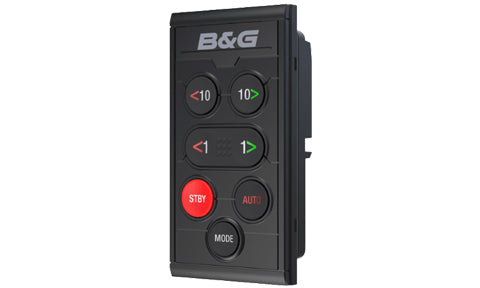

B&G Triton2 Autopilot Keypad controller
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Manufacturer-backed extended cover provided by Navico — add up to 3 extra years.
Extended cover is added to your order and confirmed with your warranty documentation.
Description
This intuitive autopilot controller keypad can be combined with a B&G Triton² Display to create a fully-featured autopilot control head. B&G's Intelligent Sail Steering functionality allows you to steer to a compass heading, or to automatically maintain a specified true or apparent wind angle in Wind mode. Smart Manoeuvre controls tack at the touch of a button, a perfect tool when sailing shorthanded. Connect to a compatible chartplotter, and Navigation mode will steer to your currently selected waypoint or route. A simple pushbutton interface makes the Triton² Pilot easy to operate in rough conditions, and reliably responsive to wet or gloved hands. Dedicated auto and standby buttons enable or disable the autopilot with a single press, so it's easy to free your hands from the wheel or instantly take control whenever you need to. The 'mode' button engages the pilot's Wind or Navigation auto-steering modes, while dual port and starboard buttons allow course adjustments in one-degree or ten-degree increments. Smartly shaped buttons let you distinguish between these increments at a touch, for safe operation in low visibility. The Triton² Pilot keypad is easily mounted, and offers single-cable NMEA 2000® connectivity for both power and data. Multiple keypads and Triton² Displays can be installed to offer autopilot control from anywhere on board.
PRODUCT DETAILS
- Autopilot control designed specifically for sailors
- Intuitive operation
- Smart Manoeuvre – tack at the touch of a button
- Chartplotter integration
- Low power consumption
- Intelligent Sail Steering – steer to a compass heading, or automatically maintain a specified wind angle
- Triton² Pilot controller
- Micro-C Drop cable 0.6 m/2 ft
- Documentation pack
- Mounting screws (4 x #4 x 3/8" PN HD SS screws)
- Micro-C T-connector
- Bezel
- Sun cover
No exploded diagram available for this product.
No compatible transducers listed for this product.
General
| Type | Autopilot control head (keypad), pairs with Triton2 display |
| Controls | Port/Starboard, AUTO, MODE, STBY keys |
| Indicator | Mode and alarm LED (green in day mode, red in night mode) |
| Warranty | 2 years |
Connectivity
| NMEA 2000 | Powered and networked via NMEA 2000 backbone |
| Connector | Micro-C (drop cable supplied) |
| Network Load | 3 LEN |
Electrical
| Power Supply | 9 - 16 V DC |
| Power Consumption | Backlight off: 0.81 W (60 mA); backlight max: 1.38 W (102 mA) at 13.5 V |
Environment
| Waterproofing | IPx7 |
| Operating Temperature Range | -25°C to +65°C (-13°F to +149°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Maximum Humidity | 100% RH |
Physical
| Housing | PC/ABS |
| Dimensions (W x H) | 115 x 60 mm (4.52 x 2.36") |
| Weight | 0.15 kg (0.33 lbs) |
