B&G Triton2 Speed, Depth Instrument Pack
Manufacturer Part Number:
000-13298-002
Manufacturer Part Number:
000-13298-002

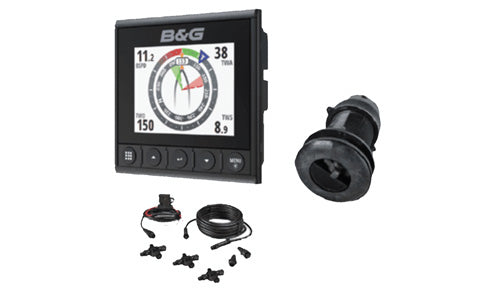

Triton² Digital Display: Multi-purpose sailing instrument and autopilot display with a 4.1-inch colour screen, optically bonded for zero condensation and featuring trans-flective LCD technology for exceptional contrast and visibility in all lighting conditions. 8mm mounting height matches other B&G MFD’s and system components.Combined with a Triton² Pilot Keypad, the display can also serve as a complete autopilot control system. Pack contains: Triton² 4.1 inch display, DST800 speed, depth transducer and NMEA 2000 Micro-C starter kit.
Home or Marina Delivery
Pick up at Hamble
More Information
B&G Triton2 Digital Display
B&G Triton2 Speed, Depth Instrument Pack
B&G Triton2 Speed, Depth and Wind Instrument Pack
B&G Triton2 Speed, Depth and Wind Pack 2019
B&G Triton2 Speed, Depth and Wireless Wind Pack 2019
Triton2 Instrument Navigation
B&G Triton2 Digital Display
Dimensions
B&G Triton2 Pilot Controller
Dimensions
Parts included
1. 1 x Display unit + Removable bezel
2. 1 x Micro-C Drop cable - 0.6 m (2’)
3. 1 x Micro-C T-Connector
4. 4 x Mounting screws
5. 1 x Suncover
6. Mounting template
7. Screw jig
Features
- The all-in-one Smart Sensor
- Depth, speed, and temperature in one compact housing
- Available in NMEA 0183 and NMEA 2000® versions
- 235 kHz frequency prevents mutual interference with other echosounders on the vessel
- Plastic, bronze, or stainless steel housings available
- Fast-response temperature sensor provides ±0.2°C (±0.1°F) accuracy
- Available as a Smart Sensor at 235 kHz or an analog output sensor operating at 200 kHz or 235 kHz
- Available in low-profile, countersunk, or beveled-edge housings
Specifications
- Weight:
- 0.9 kg (2.0 lb)—Plastic
- 1.6 kg (3.5 lb)—Bronze
- 1.9 kg (4.2 lb)—Stainless Steel
- Acoustic Window: Urethane
- Hull Deadrise: Up to 22°
- Data Update Rate: 1 per second
- Minimum Depth Range: 0.5 m (1.6’)
- Maximum Depth Range:
- Up to 70 m (230’)—NMEA 0183
- Up to 100 m (330’)—NMEA 2000
- Pressure Rating: 3 m (10’)
- Pulse Rate: 20,000 p/nm* (5.6 Hz per knot)
- *p/nm = pulses per nautical mile
- Supply Voltage:
- 10 VDC to 25 VDC—NMEA 0183
- 9 VDC to 16 VDC—NMEA 2000
- Supply Current:
- <40 mA &em; NMEA0183
- <200 mA &em; NMEA2000
- Standard Cable Length:
- 10 m (33’)—NMEA 0183 cable
- 6 m (20’)—NMEA 2000 cable
- Temperature Sensor Accuracy: ±0.5°C (±1.8°F)
- Temperature Sensor Range: -10°C to 40°C (14°F to 104°F)
- NMEA 2000® Load Equivalency Number (LEN): 4
- CE Regulation: Complies to IERC60945
