B&G WS310 Wind Pack with 35m Cable and Interface
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Manufacturer-backed extended cover provided by Navico — add up to 3 extra years.
Extended cover is added to your order and confirmed with your warranty documentation.
Description
A new range of high precision B&G wind sensors, designed for cruising and club racing sailors. An evolution of B&G's previous sensors, developed through hours of iterative testing to provide the best solution for sailing wind sensors. Connects to Trtion 2 via Interface. Pack comes with WS310 mast head unit, 35 meter cable and WS310 Interface
PRODUCT DETAILS

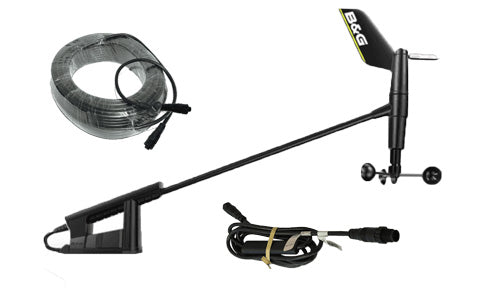

- Complete wired wind pack with sensor, interface and 35m cable
- High precision apparent wind speed and angle data
- Connects to NMEA 2000 via the included WS310 interface
- 35 metre cable suits most cruising and racing masts
- IPx6 and IPx7 waterproof masthead unit
- Wind speed accuracy +/- 0.1 m/s (0.2 kt) from 1 to 40 m/s
- Backed by a 2 year warranty
- WS310 Wind Sensor
- WS310 (wired) Interface
- WS300 35M (115ft) Cable
No exploded diagram available for this product.
No compatible transducers listed for this product.
No compatible products found.
Electrical
| Supply Voltage | 12V DC (9 - 16V DC) |
| Power Usage | 15 mA at 12V DC |
Connectivity
| Data Output | NMEA 0183 MWV,R sentence at 10Hz (NMEA 2000 via included interface) |
Performance
| Wind Speed Range | 0.25 - 50 m/sec (0.5 - 97 knots) |
| Wind Speed Accuracy | +/- 0.1 m/sec (0.2 kt) from 1 - 40 m/sec (2 - 80 kt) |
| Wind Angle Accuracy | +/- 0.5° |
Environment
| Waterproof | IPx6 & IPx7 |
| Operating Temperature | -25°C to 65°C |
General
| Cable Length | 35 metres (115 ft) |
Physical
| Wind Sensor Weight | 0.30 kg (0.66 lbs) |
