B&G WS320 Wireless Wind Pack with Interface
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Manufacturer-backed extended cover provided by Navico — add up to 3 extra years.
Extended cover is added to your order and confirmed with your warranty documentation.
Description

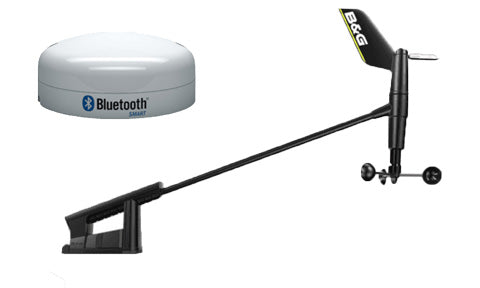

A new range of high precision B&G wind sensors, designed for cruising and club racing sailors. An evolution of B&G's previous sensors, developed through hours of iterative testing to provide the best solution for sailing wind sensors. Connects to Triton 2 via wireless interface. Pack contains WS320 mast head unit and WS320 wireless Interface.
PRODUCT DETAILS
- Easy installation
- Smart rechargeable power management
- Superior data accuracy and aerodynamics
- Sensor quality and reliability
- WS320 wireless wind sensor (masthead unit)
- WS320 Bluetooth base station with mounting accessories
- NMEA 2000 drop cable
- Micro-C T-Joiner
- Masthead bracket, gasket, screws and battery
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Electrical
| Sensor Power | Solar powered (battery, no mast cable) |
| Base Station Power | 9 - 16V DC via Micro-C network, 1.2 W |
Connectivity
| NMEA 2000 Network Load | 2 LEN (100 mA) |
| Wireless Connectivity | <= 30 m (98 ft) |
| Data Output | Apparent wind speed and angle at 5 Hz |
Performance
| Wind Speed Range | 0.25 - 50 m/sec (0.5 - 97 knots) |
| Wind Speed Accuracy | +/- 0.1 m/sec (0.2 kt) from 1 - 40 m/sec (2 - 80 kt) |
| Wind Angle Accuracy | +/- 0.5° |
Environment
| Sensor Waterproof | IPx6 and IPx7 |
| Operating Temperature | -25°C to 65°C (sensor) |
Physical
| Sensor Weight | 0.32 kg (0.7 lbs) |
| Base Station Dimensions | Ø 90 mm (3.54 in), H 38 mm (1.50 in) |
