B&G WS710 0.8m Vertical Wind Sensor B&G WS710 0.8m Vertical Wind Sensor
B&G WS710 0.8m Vertical Wind Sensor

B&G

B&G WS710 0.8m Vertical Wind Sensor Only

£2,369.99
Tax included. Shipping calculated at checkout.
000-14392-001
Masthead wind sensor for performance sailing, mounted on a 0.8 m high-modulus carbon spar that lifts the one-piece vane clear of sail-plan turbulence for accurate wind angle and speed.
✓ Collection or delivery in 1-2 weeks

Pickup available at Mercury Yacht Harbour

Usually ready in 2-4 days

Navico Extended Warranty

Manufacturer-backed extended cover provided by Navico — add up to 3 extra years.

Extended cover is added to your order and confirmed with your warranty documentation.

Description

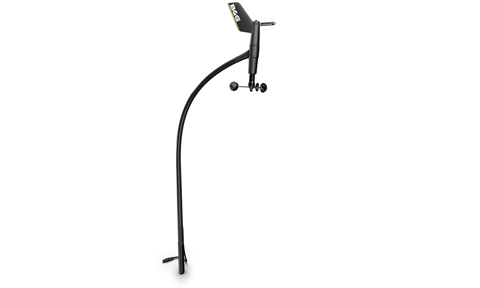

The WS710 high-performance wind sensor offers superb aerodynamics and accuracy. A 0.8m high modulus carbon spar elevates the wind sensor into clear air, above any sail-plan disturbance at the masthead.

The WS700 series is the ultimate wind sensor for performance sailing, providing the most accurate wind angle and speed data. The new one-piece vane design gives superb aerodynamics and stability, as a result of over 200,000 hours of combined design and wind tunnel testing.

PRODUCT DETAILS

  • 0.8m high-modulus carbon spar lifts the vane into clear, undisturbed air
  • One-piece vane design refined over 200,000 hours of design and wind-tunnel testing
  • Superb aerodynamics and stability for the most accurate wind data
  • Wind range 0.5 to 90 knots, accuracy +/- 0.2 kt and +/- 0.5°
  • Reliable True Wind Direction for precise race calls and better steer-to-wind on autopilot
  • Direct NMEA 0183 MWV,R output at 10Hz, NMEA 2000 via optional WS310 interface
  • IPx6 water resistance, backed by a 2 year warranty
  • WS710 0.8m vertical wind sensor
  • Documentation pack

No exploded diagram available for this product.

No compatible transducers listed for this product.

B&G WS300 35 Meter Cable

B&G WS300 35 Meter Cable

B&G WS300 20 Meter Cable

B&G WS300 20 Meter Cable

B&G WS300 80 Meter Cable

B&G WS300 80 Meter Cable

B&G WS300 50 Meter Cable

B&G WS300 50 Meter Cable

B&G WS310 Wired Wind Interface

B&G WS310 Wired Wind Interface

Connectivity

NMEA 0183 Sentences supportedMWV,R at 10Hz

Approvals

Approvals ComplianceIEC/EN 60945

Performance

Wind Range0.5 - 90 knots
Wind Angle Resolution0.1°

Electrical

Power Consumption typical< 0.2W
Supply Voltage12V DC (9 - 16V DC)

General

Cable Options20, 35, 50 or 80 m (66, 115, 164, 262 ft)

Physical

Spar Length0.8 m (32 in)
Width356 mm (14.0 in)
Dimensions W x H x D356 x 800 x 22mm (14 x 32 x 0.9in) nominal
Weight0.3 kg (0.7 lbs)

Environment

Operating Temperature Range-15C to +55C (5F to 131F)
Storage Temperature Range-20C to +60C (4F to 140F)
Waterproof ratingIPX6

Other

Warranty Period2 Years

No videos available for this product.

No downloads available for this product.

Why does the WS710 use a vertical carbon spar?
The 0.8m vertical spar lifts the wind vane into clear air above the masthead, minimising sail-plan disturbance so wind measurement is more accurate and needs less calibration.
How do I connect the WS710 to my instruments?
The sensor outputs a NMEA 0183 MWV,R sentence at 10Hz directly to compatible systems, and connects to a NMEA 2000 network through the optional WS310 interface.
Is the WS710 compatible with my B&G system?
The WS710 works with Triton, Triton2, H5000 and WTP3 systems (some via the optional WS310 interface) and any NMEA 0183 system. It is not compatible with H3000.
What is the difference between the WS710 and the longer WS720/WS730?
They share the same vane and electronics; the WS710 has a 0.8m spar, the WS720 1.1m and the WS730 1.4m. A longer spar lifts the vane further into clean air, beneficial on larger or more powerful rigs.
