B&G WS720 1.1m Vertical Wind Sensor 35m Cable B&G WS720 1.1m Vertical Wind Sensor 35m Cable
B&G WS720 1.1m Vertical Wind Sensor 35m Cable

B&G

B&G WS720 1.1m Vertical Wind Sensor 35m Cable

£3,049.99
Tax included. Shipping calculated at checkout.
000-14385-001
The B&G WS720 Wind Pack combines the 1.1m vertical carbon wind sensor with a 35m mast cable for precise masthead wind measurement. The longer carbon spar raises the sensor further into clean air for improved wind angle and speed accuracy on taller rigs. A high-performance choice for racers and performance cruisers on B&G or Simrad systems.
✓ Collection or delivery in 1-2 weeks

Pickup available at Mercury Yacht Harbour

Usually ready in 2-4 days

Navico Extended Warranty

Manufacturer-backed extended cover provided by Navico — add up to 3 extra years.

Extended cover is added to your order and confirmed with your warranty documentation.

Description

The WS720 Wind Pack offers superb aerodynamics and accuracy. A 1.1m high modulus carbon spar elevates the wind sensor into clear air, above any sail-plan disturbance at the masthead. Pack includes 35m mast cable and junction box to aid mast-base connection.

The WS700 series is the ultimate wind sensor for performance sailing, providing the most accurate wind angle and speed data. The new one-piece vane design gives superb aerodynamics and stability, as a result of over 200,000 hours of combined design and wind tunnel testing.

PRODUCT DETAILS

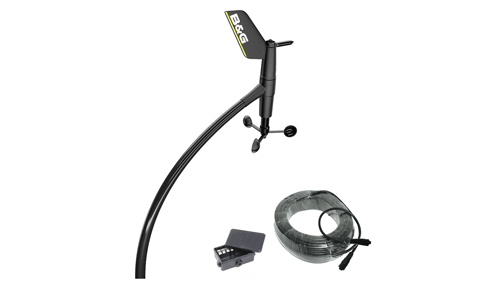

  • Complete WS720 wind pack with sensor, junction box and 35m cable
  • 1.1m high-modulus carbon spar lifts the vane into clear, undisturbed air
  • One-piece vane design refined over 200,000 hours of design and wind-tunnel testing
  • Wind range 0.5 to 90 knots, accuracy +/- 0.2 kt and +/- 0.5°
  • Reliable True Wind Direction for precise race calls and better steer-to-wind on autopilot
  • Connects to NMEA 2000 via optional WS310 interface, or NMEA 0183 directly
  • Backed by a 2 year warranty
  • WS720 1.1m vertical wind sensor
  • WS300 35m (115 ft) mast cable
  • Junction box, 7 terminal
  • Documentation pack

No exploded diagram available for this product.

No compatible transducers listed for this product.

No spares or accessories listed for this product.

No compatible products found.

Performance

Wind Range0.5 - 90 knots
Wind Speed Accuracy+/- 0.2 knots (from 2 - 80 knots), 0.1 knot resolution
Wind Angle Accuracy+/- 0.5°

Electrical

Supply Voltage12V DC nominal (via interface or separate supply)
Power Consumption15 mA at 12V DC / <0.2 W

Connectivity

Data OutputNMEA 0183 MWV,R at 10Hz (NMEA 2000 via optional WS310 interface)

Environment

Water ResistanceIPx6
Operating Temperature-15°C to +55°C (5°F to 131°F)

General

Cable Length35 m (115 ft) mast cable included

Physical

Spar Length1.1 m (42 in)
Wind Sensor Weight0.4 kg (0.9 lbs)

No videos available for this product.

No downloads available for this product.

What is included in the WS720 wind pack?
The pack includes the WS720 1.1m vertical wind sensor, a WS300 35m (115 ft) mast cable, a 7 terminal junction box to aid mast-base connection, and a documentation pack.
Does the WS720 pack include a NMEA 2000 interface?
No. The sensor outputs NMEA 0183 directly. To connect to a NMEA 2000 network you add the optional WS310 interface.
Which systems is the WS720 compatible with?
It works with Triton, Triton2, H5000 and WTP3 (some via the WS310 interface) and any NMEA 0183 system. It is not compatible with H3000.
When should I choose the 1.1m WS720 over the 0.8m WS710?
The longer 1.1m spar lifts the vane further into clean air, which can improve accuracy on larger or more powerful rigs where masthead turbulence is greater.
