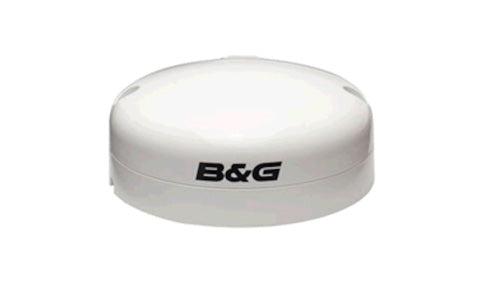

B&G ZG100 GPS Antenna with Compass NMEA2000
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Manufacturer-backed extended cover provided by Navico — add up to 3 extra years.
Extended cover is added to your order and confirmed with your warranty documentation.
Description
The ZG100 Antenna with built in rate compass provides high accuracy position at a 10Hz update rate. The built in rate compass is perfect for for providing heading data for Radar Chart Overlay and for orenting charts in Head Up Mode. Note: This heading sensor is not recommended for MARPA or Autopilot control. We recommend the Precision9 for this purpose.
PRODUCT DETAILS
- Highly accurate position
- 10Hz update rate
- Sail Specific COG/SOG filtering for optimum performance
- Augmented with WAAS, EGNOS and more
- Integrated heading sensor
- Heel and Trim sensors
- Compact, waterproof (IP67) design
- NMEA 2000
- 1 x ZG100 GPS Antenna with built-in Heading Sensor
- 1 x NMEA 2000 Drop cable - 1.8 m (6 ft)
- Surface/pole mounting hardware
- Mounting template
- Installation guide
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
General
| Receiver Type | L1, C/A code, 1.575 GHz / L2 C/A code, 1.602 GHz |
| Channels | 32 channels |
Performance
| Position Update Rate | Up to 10 Hz (1, 5, 10) |
| Horizontal Accuracy | 3 m (9.8 ft) |
| Heading Accuracy | +/- 3 degrees |
| Rate of Turn Accuracy | +/- 3 degrees |
| Roll/Pitch Accuracy at 30 degrees | +/- 1 degree |
| Cold Start | 50 sec |
| Start-up Time | 3 sec |
| Satellite Reacquisition | 5 sec |
Electrical
| Input Voltage | 9 V DC - 18 V DC |
| Reverse Polarity Protection | Yes |
| Power Consumption | < 2 W |
| Current Consumption | < 100 mA at 12 V DC |
Connectivity
| Data I/O Protocol | NMEA 2000 |
| Antenna Connector | NMEA 2000 Micro-C |
| Supported PGNs | 126992, 129025, 129026, 129029, 129539, 129540, 127258, 127250, 127251, 127257 |
Environment
| Operating Temperature | -25C to +60C (-13F to +140F) |
| Storage Temperature | -40C to +85C (-40F to +185F) |
| Waterproof Rating | IPX7 (splash proof) |
| Humidity | 93% RH at 40C, operating |
Physical
| Dimensions | 90 mm diameter x 38 mm height (3.54 x 1.50 in) |
| Weight | 0.14 kg (0.3 lbs) approx |
| Mounting | Flush mount / standard pole mount (1 inch x 14 TPI thread) |
Approvals
| Compliance | CE under RED 2014/53/EU |
