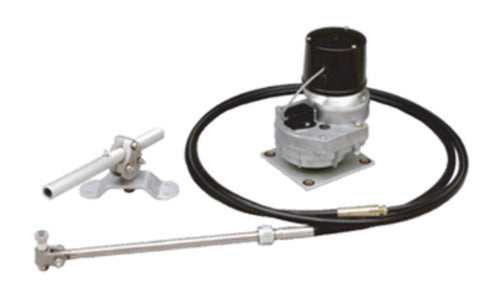

B&G, Simrad SD10 Mechanical Drive Unit Up to 7,000kg Displacement

B&G, Simrad SD10 Mechanical Drive Unit Up to 7,000kg Displacement
Enquire
Price Checked √
£1,268.75 inc VAT
£1,057.29 ex VAT

Manufacturer Part Number:

000-13697-001

SD10 Mechanical Drive unit for NAC-2 Autopilot computers. The Dive will suit sailboats 25’-37’ with 6’ steering cable with electromagnetic clutch with override function, built in Rudder feedback and 12 V power supply. Compatible Computers NAC-2

Home or Marina Delivery

Get it as soon as tomorrow
Enter postcode to check

Pick up at Hamble

Pick it up today

More Information

Maximum Stroke:  305mm / 12in

Peak Thrust:  180kg / 400lbs

Max Rudder Torque:  450nm / 333 lbft

Hard Over Time:  12-15 seconds

Peak Power:  7 Amps

Average Power:  2.5 Amps

Tiller Arm Radius:  254mm / 10in

Max Displacement (Fully Laden) :  7000kg / 15,400lbs

Max Boat Length:  11.5m / 38ft

Voltage:  12v DC

Clutch Circuit Power:  850mA
