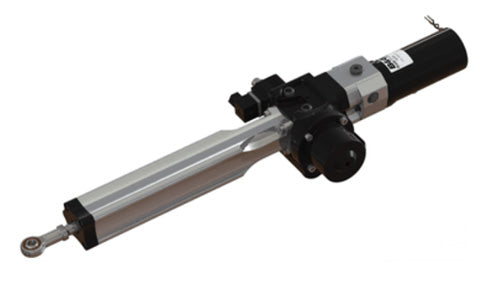

B&G, Simrad T0 Hydraulic Linear Drive 12v Up to 9,000kg Displacement
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Manufacturer-backed extended cover provided by Navico — add up to 3 extra years.
Extended cover is added to your order and confirmed with your warranty documentation.
Description
This compact unit is designed for smaller or lighter yachts with space restrictions and lower thrust requirements. Depending on vessel weight, sail plan and rudder forces the new actuator is suitable for sailing yachts of up to 9,000kg. Compatible Computers NAC-2
PRODUCT DETAILS
- Compact hydraulic linear drive for smaller or lighter yachts with space restrictions and lower thrust requirements
- Suitable for sailing yachts of up to 9,000 kg (depending on weight, sail plan and rudder forces)
- Integrated hydraulic system - no external hoses or reservoirs
- Compatible Computers: NAC-2
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Technical Data
| Voltage | 12 VDC |
| Typical Amp-hour (60 kg at 25% duty) | 1.3 Amps |
| Typical Current Intermittent (350 kg) | 14.0 A |
| Hard-over time (Nominal) | 12 seconds |
| Volume (average) | 234cc |
| Ingress protection | IP67 |
| EMC Protection | BS EN 60945:2002 (DC) |
| Ignition Protection | BS EN 28846:1993 |
| Ambient operating Temperature | -15 to + 55 deg C |
| Max Operating Thrust | 350 kg (Intermittent) |
| Clutch coil | 12 watt |
| Clutch connection | DIN 43650 (6-8 mm cable) |
| Fluid | ISO VG10 to VG40 hydraulic mineral fluid to ISO 6743-4 HV (e.g. Fuchs Renolin B 15 HV1, Seastar HA5430) |
| Weight | 8 kg |
