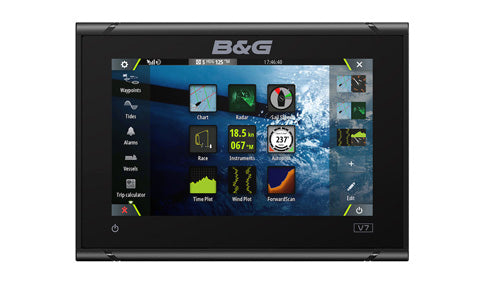

B&G Vulcan 7R 7-Inch Chartplotter Radar Sonar
£629.99
/
Tax included.
Shipping calculated at checkout.
000-14082-001
The B&G Vulcan 7R is a 7-inch multi-touch sailing chartplotter built for Broadband Radar, giving you collision avoidance and weather tracking alongside the full B&G sailing suite of SailSteer, SailingTime, RacePanel and laylines. It is ForwardScan ready, drives a B&G autopilot over NMEA 2000 and adds built-in Wi-Fi and a 10Hz GPS. Supports C-MAP, Navionics and Insight charts.
✓
Available for collection or delivery in ~1 day
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Navico Extended Warranty
Manufacturer-backed extended cover provided by Navico — add up to 3 extra years.
Extended cover is added to your order and confirmed with your warranty documentation.
Description
B&G Vulcan 7 is a 7-inch touch screen chartplotter built specifically for sailors. Packed with sailing specific functions such as B&G's Award Winning SailSteer™ and Sailing Time, sailors can see all key sailing data at a glance. SailSteer allows sailors to view crucial sailing data on one handy screen or alternatively overlaid on your position on the chartplotter screen. GoFree™ Compatible with built in Wi-Fi functionality. Advanced NMEA2000® networking. Broadband Radar™ and ForwardScan™ ready.
PRODUCT DETAILS
- Easy to use multi-touch display
- Dedicated sailing features for cruising or racing: SailSteer, SailingTime, RacePanel, Laylines
- Easy to integrate - connect Vulcan to an existing system and add basic sailing components
- Broadband Radar and ForwardScan ready
- Integrated Wi-Fi
- Control your B&G Pilot
- Instrument data display
- Built-in high accuracy 10Hz GPS
- Vulcan 7R display unit
- Panel mounting kit (gasket and mounting screws)
- Sun cover
- Power cable
- U-bracket (plastic) with bracket knobs and mounting screws
- Fuseholder and fuse (3 A, ATC-blade)
- Protective caps (3x)
- Documentation package (installation manual, quick guide, mounting template)
No exploded diagram available for this product.
No compatible transducers listed for this product.
No compatible products found.
Display
| Display Size | 7 inches |
| Display Resolution | 800 x 480 |
| Screen Brightness | 1200 nits |
| Backlight Colour | White |
| Viewing Angles | 80 deg top/bottom, 80 deg left/right |
Connectivity
| Wi-Fi | Internal |
| Bluetooth | Internal |
| Ethernet Ports | 1 x 5 pin yellow connector x 100 Mbits/s (Radar and Sirius (USA only) connectivity only) |
| NMEA 2000 Connectivity | 1 x NMEA 2000 Micro-C port, 1 LEN |
| NMEA 0183 | Exports NMEA0183 over WiFi |
| SD Card Storage | 1 Micro SD slot, max. 32GB each. >32 GB format to NTFS |
| PC Connectivity | None |
| Video | None |
Cartography
| Charts Supported | Insight, Navionics (Gold, NAV+, Platinum+), C-MAP (MAX N, MAX N+), NV Digital (Raster US Charts) |
GPS
| Type | Internal, 10Hz |
| GPS Receiver Channels | 32 Channels |
| Correction | WAAS, MSAS, EGNOS, GLONASS |
| Position Accuracy | Horizontal Accuracy 3 m (9.8 ft.) |
| Update Rate | 10 Hz |
| Time to First Fix | Cold start less than 90 seconds exposed to open sky; satellite reacquisition 5 sec |
Sonar
| Sonar Compatibility | Integrated CHIRP / DownScan / ForwardScan. Single 9 Pin Xsonic Connector |
Autopilot
| Steering Modes | Wind*, Auto, Nav., No Drift, Follow up, Non-follow up, Standby, Wind NAV.* (*Boat type set to Sail) |
| Manoeuvres / Turn Patterns | Tack / Gybe, Depth contour tracking |
Electrical
| Supply Voltage | 12V (10 - 17V) |
| Power Consumption typical | 12 W |
| Power Consumption max | 20 W |
| Recommended Fuse Rating | 3A |
Environment
| Waterproof Rating | IPX6 & 7 |
| Operating Temperature Range | -15 deg C to +55 deg C (5 F to 131 F) |
| Storage Temperature Range | -20 deg C to +60 deg C (4 F to 140 F) |
Physical
| Dimensions W x H x D | 197 mm x 141 mm x 82.7 mm (7.56" x 5.55" x 3.26") (no bracket) |
| Weight | 1.320 kg (2.91 lb) |
| Mounting Type | Bracket or Panel |
MFD
| AIS | Receive AIS data over NMEA 2000 only |
| Internal Storage | 90MB |
| Waypoints, Routes, Tracks | 6000 waypoints, 500 Routes with 100 max route points, 50 tracks with up to 12,000 track points |
| Digital Switching | BEP C-Zone, NaviOP |
| Multimedia | via SonicHub2, Fusion Link, *Sirius, **JL Audio (*USA only, **AUST. & NZ only) |
| Weather | Sirius XM WM-3 (USA only), GRIB |
Other
| Interface | Touch screen, ZC1 or ZC2 controller via NMEA 2000 |
| Warranty Period | 2 Years |
No videos available for this product.
What is the difference between the Vulcan R and FS models?
The R models such as this Vulcan 7R are radar-ready chartplotters with a dedicated Ethernet radar port, so they can drive a B&G Broadband or HALO radar dome. The FS models focus on a built-in fishfinder and ForwardScan support. The 7R also has a built-in CHIRP and DownScan echosounder, so you get both radar capability and sonar.
Does the Vulcan 7R include a radar dome or transducer?
The base Vulcan 7R is supplied as a display only, with radar and sonar added separately. Choose the radar bundle version if you want a Broadband 3G dome included. The sonar uses a single 9-pin XSonic connector, so you add a CHIRP, DownScan or ForwardScan transducer to suit your boat.
What radar can I connect to the Vulcan 7R?
The Vulcan 7R connects to B&G Broadband 3G and 4G radar domes as well as HALO pulse compression radar over its dedicated Ethernet radar port. Radar overlay can be shown directly on the chart for clear collision avoidance.
Which charts does the Vulcan 7R support?
The Vulcan 7R supports C-MAP MAX-N and MAX-N+, Navionics Gold, Platinum+ and Navionics+, Insight and Insight Genesis, plus selected third-party charts. Charts load via the microSD card slot.
Does the Vulcan 7R have Wi-Fi and NMEA 2000?
Yes. Built-in Wi-Fi supports GoFree, wireless software updates and viewing or controlling the display from a phone or tablet. A single NMEA 2000 port integrates B&G sailing instruments, sensors, AIS, a DSC VHF and a compatible autopilot.
