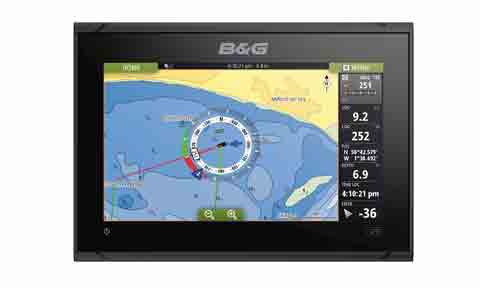

B&G Vulcan 9FS 9-Inch Chartplotter Radar Sonar
Manufacturer Part Number:
000-13214-001
Manufacturer Part Number:
000-13214-001
B&G Vulcan 9 is a 9-inch touch screen chartplotter built specifically for sailors. Packed with sailing specific functions such as B&G’s Award Winning SailSteer™ and Sailing Time, sailors can see all key sailing data at a glance. SailSteer allows sailors to view crucial sailing data on one handy screen or alternatively overlaid on your position on the chartplotter screen. GoFree™ Compatible with built in Wi-Fi functionality. Advanced NMEA2000® networking. Broadband Radar™ and ForwardScan™ ready.
Home or Marina Delivery
Pick up at Hamble
More Information
Vulcan Multi-function Display Navigation
Parts included
1. Display unit
2. Panel mounting kit
• Gasket
• Mounting screws (4x #4 x 3/4" PN HD SS)
3. Sun cover
4. Cable - Combined power and NMEA 2000 cable - 5" unit - Power cable - 7", 9" and 12" units
5. Fuseholder and fuse (3 A, ATC-blade)
6. Protective caps -2x - 5" unit 3x - 7", 9" and 12" units
7. Documentation package
• Installation manual
• Quick guide • Mounting template
Bracket
8 A: Bracket mounting kit - 5" unit
• Quick Release Bracket
• Mounting screws (4x #10 x 3/4" PN HD SS)
B: Bracket mounting kit - 7" and 9" units
• U bracket (plastic)
• Mounting screws (4x #10 x 3/4" PN HD SS)
• Bracket knobs (2x)
C: Bracket mounting kit - 12" unit
• U bracket (metal)
• Mounting screws (4
Dimensions
B&G Vulcan 5FS
Dimensions
B&G Vulcan 7R
Dimensions
B&G Vulcan 9FS
Dimensions
B&G Vulcan 12R
