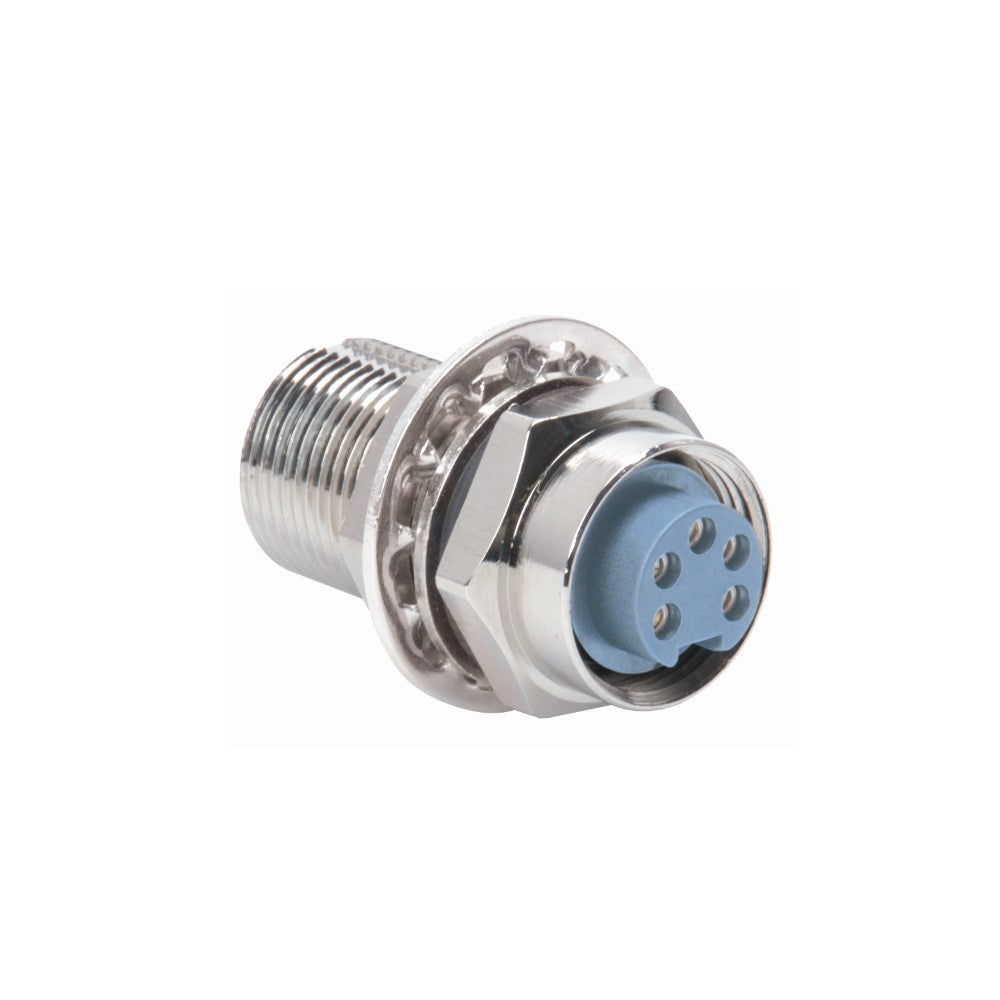

Maretron Mini Bulkhead Feed-Thru
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Maretron BHF-NM-NF Mini Bulkhead Feed-Thru makes it easy to route a Maretron Mini (DeviceNet Mini) NMEA 2000 network through a panel or bulkhead. It presents a male connector on one side and a female connector on the other, so the backbone can pass cleanly through the barrier and provide a ready-made connection point for future expansion.
Rated to IP67 with rugged keyways for positive alignment, the feed-thru preserves the integrity of watertight bulkheads by providing a waterproof seal where the cable would otherwise penetrate. It accommodates panel or bulkhead thicknesses from around 1.0mm to 22.2mm, making it a tidy, reliable solution for professional NMEA 2000 installations.
PRODUCT DETAILS
- Mini (DeviceNet Mini) NMEA 2000 bulkhead feed-thru
- Male-to-female pass-through for backbone routing
- Waterproof IP67 seal preserves watertight bulkheads
- Rugged keyways for positive, aligned connections
- Creates a convenient future network connection point
- Suits bulkhead thicknesses from 1.0mm to 22.2mm
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
General
| Type | Mini (DeviceNet Mini) bulkhead feed-thru, male to female |
| Degree of Protection | IP67 (NEMA 1, 3, 4, 6) |
Electrical
| Voltage Rating | 250 V |
| Maximum Current | 4.0 A |
| Conductors | 5 x 22 AWG |
Mechanical
| Panel Thickness | 1.0mm to 22.2mm (0.40" to 0.875") |
Environmental
| Temperature Range | -40C to 105C |
