Eagle 5 with SplitShot™ HD
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Manufacturer-backed extended cover provided by Navico — add up to 3 extra years.
Extended cover is added to your order and confirmed with your warranty documentation.
Description

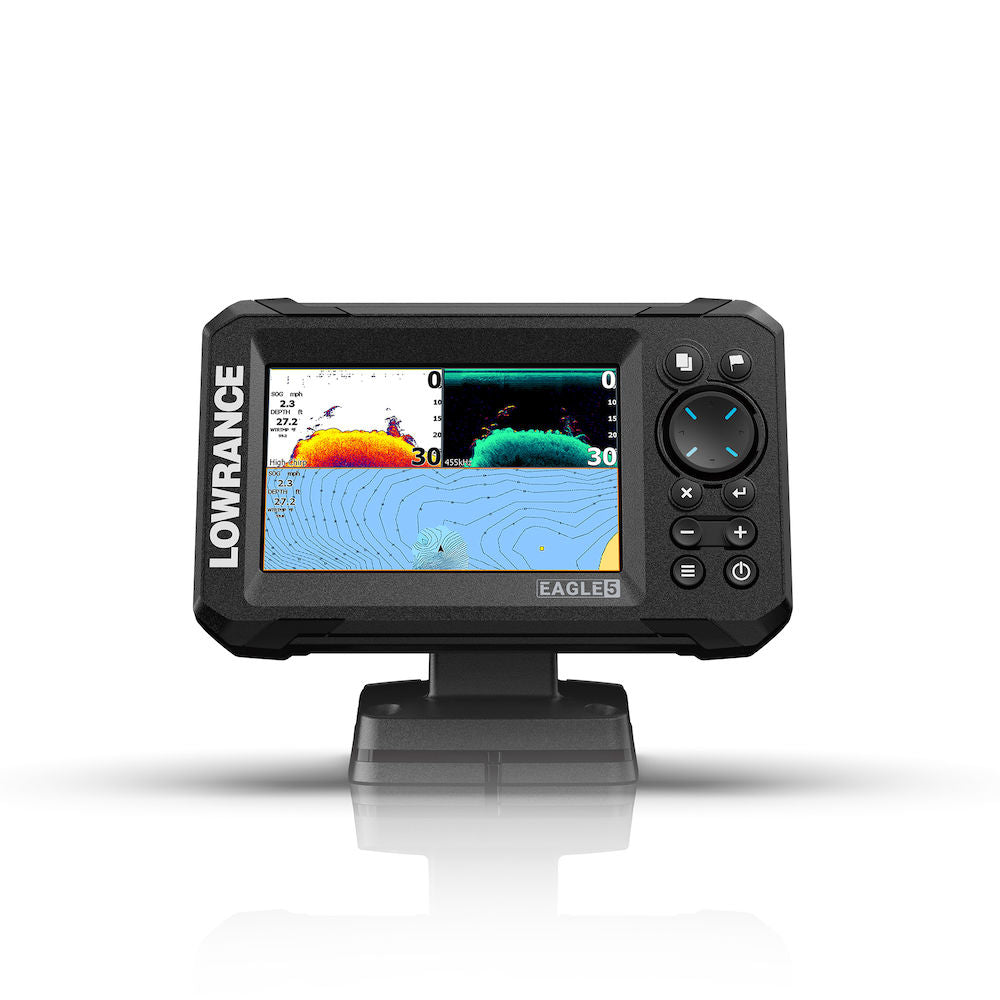

The Lowrance Eagle 5 is an easy-to-use fishfinder and chartplotter with a bright 5 inch IPS display viewable from any angle. Its SplitShot HD transducer combines high CHIRP sonar with DownScan Imaging and FishReveal, while autotuning sets the sonar for the best picture automatically.
Pre-loaded with a worldwide basemap and upgradeable to C-MAP DISCOVER, it adds a microSD slot for chart cards, software updates and Genesis Live mapping, plus a quick twist-lock connector for easy installation.
PRODUCT DETAILS
- 5 inch IPS display, 800 x 480, 1000 nits
- SplitShot HD transducer with CHIRP and DownScan
- FishReveal and autotuning sonar
- Worldwide basemap, upgradeable to C-MAP DISCOVER
- microSD slot and twist-lock connector
No exploded diagram available for this product.
No compatible transducers listed for this product.
No compatible products found.
Display
| Display Size | 5 inches |
| Display Resolution | 800 x 480 |
| Screen Brightness | 1000 NITS |
| Viewing Angles | 80 deg top/bottom, 80 deg left/right |
Cartography
| Charts Supported | C-MAP DISCOVER (worldwide basemap preloaded) |
Connectivity
| SD Card Storage | 1 slot (microSD, 32 GB maximum) |
MFD
| Waypoints, Routes, Trails | 3000 waypoints, 100 routes, 100 trails |
Electrical
| Supply Voltage | 12 V DC (10.8 to 17 V DC) |
| Power Consumption (max) | 280 mA at 12 V DC (backlight full) |
| Recommended Fuse Rating | 3 A |
Environment
| Waterproof Rating | IPX7 (card door closed) |
| Operating Temperature Range | -15 C to 55 C |
GPS
| Correction | SBAS |
| Time to First Fix | 45 s |
Physical
| Dimensions W x H x D | 182.1 mm x 113.2 mm x 110.6 mm |
| Weight | 0.46 kg |
| Mounting Type | Gimbal bracket or dash mount |
Other
| Warranty | 1 year, plus up to 4 additional years of upgrade options (5 years total) |
