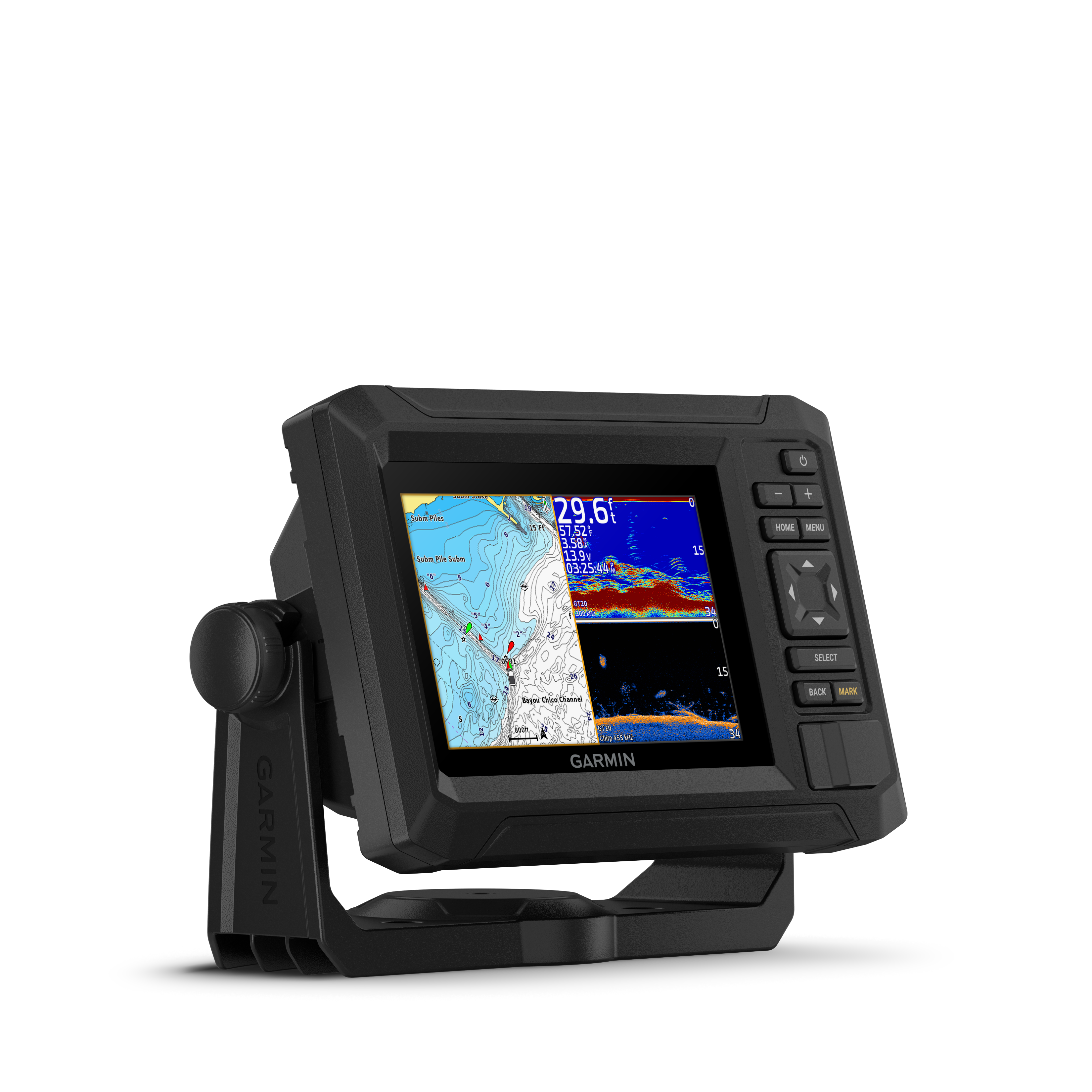

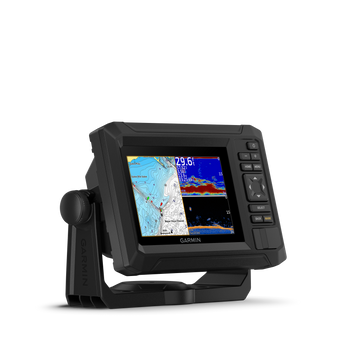

Garmin ECHOMAP™ UHD2 55cv, Without Transducer, UK/IE
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The ECHOMAP UHD2 55cv brings full chartplotter and sonar capability to a compact 5-inch keyed display, with Garmin Navionics+ charts for the United Kingdom and Ireland preloaded so you can navigate familiar waters from the moment you switch on. Garmin ClearVu and traditional CHIRP sonar reveal near-photographic detail of structure and fish beneath the boat, while the high-sensitivity GPS keeps your position locked in. Quickdraw Contours lets you build personal HD fishing maps as you go, and built-in Wi-Fi connects the unit to the ActiveCaptain app for charts, smart notifications and software updates. NMEA 2000 connectivity supports integration with sensors and engine data, and the IPX7-rated housing handles spray and rain with ease. This version ships without a transducer, letting you fit the sonar transducer best matched to your boat.
PRODUCT DETAILS
- 5-inch keyed (button) chartplotter with bright, sunlight-readable WVGA display
- Preloaded Garmin Navionics+ charts for the United Kingdom and Ireland
- Garmin ClearVu and traditional CHIRP sonar support (50/77/83/200 kHz) at 500 W RMS
- Built-in high-sensitivity GPS plus Quickdraw Contours personal HD mapping
- Built-in Wi-Fi pairs with the ActiveCaptain app for charts, alerts and updates
- NMEA 2000 connectivity and IPX7 waterproof rating
- Supplied without a transducer so you can choose the model that suits your boat
- ECHOMAP UHD2 55cv chartplotter (Garmin Navionics+ UK/IE preloaded)
- Tilt/swivel bail mount with knobs
- Flush-mount kit and hardware
- Protective sun cover
- Power cable
- Documentation
No exploded diagram available for this product.
No compatible transducers listed for this product.
No compatible products found.
Display
| Display size | 127.3 mm (5 in.) diagonal; 109 x 65.8 mm viewable |
| Display resolution | WVGA, 800 x 480 pixels |
| Control type | Keyed (button) control |
Physical
| Dimensions (W x H x D), chartplotter only | 188 x 122 x 61.5 mm |
| Weight | 0.5 kg (1.1 lb.) |
| Material | Polycarbonate plastic |
Electrical
| Input voltage | 9 to 18 Vdc |
| Fuse | 3 A, 125 V fast-acting |
| Max. power draw | 8.4 W |
Sonar
| Sonar technology | Traditional CHIRP + Garmin ClearVu CHIRP (cv) |
| Sonar frequencies | Traditional: 50/200, 77/200, 83/200 kHz; Single Channel CHIRP: 40 to 250 kHz; Garmin ClearVu CHIRP: 260/455/800 kHz |
| Sonar transmit power (RMS) | 500 W (CHIRP and Garmin ClearVu CHIRP) |
| Sonar depth | 701 m (2,300 ft.) at 77 kHz |
Connectivity
| Wi-Fi | 2.4 GHz Wi-Fi (ActiveCaptain app connectivity) |
| NMEA 2000 | Yes |
| Memory card | 1 microSD card slot; up to 1 TB (exFAT) |
GPS/GNSS
| GPS | Built-in high-sensitivity GPS |
Environmental
| Water rating | IEC 60529 IPX7 |
| Temperature range | -15 to 55 C |
| Compass-safe distance | 7.62 cm (3 in.) |
General
| Preloaded mapping | Garmin Navionics+ UK and Ireland |
