Garmin

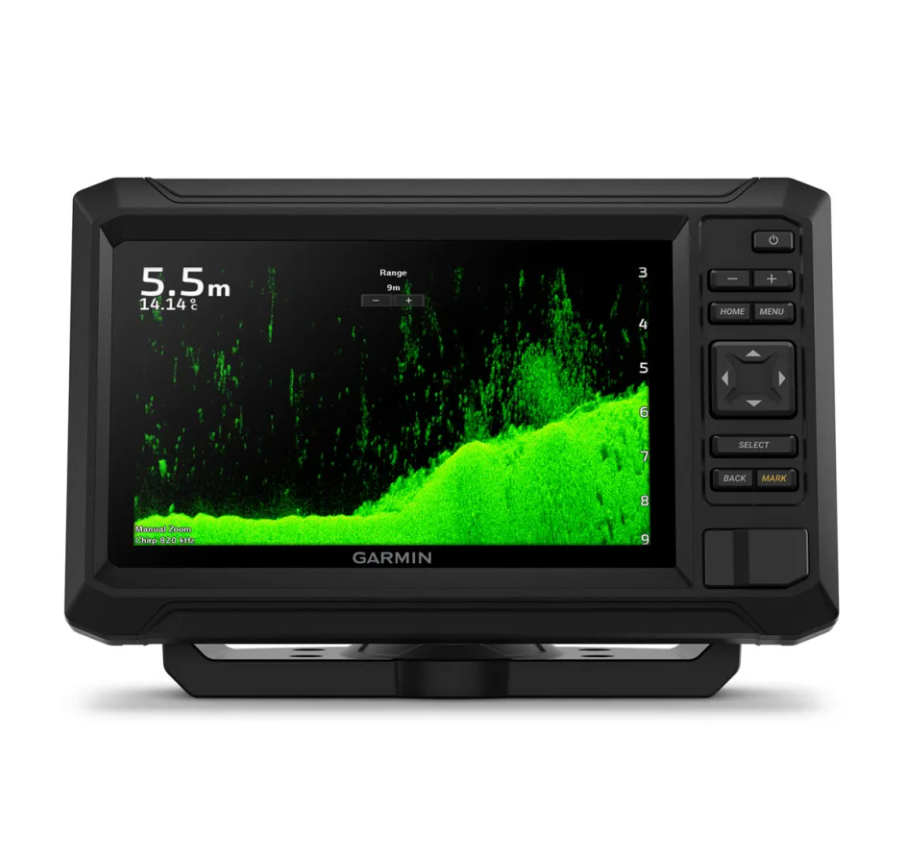

ECHOMAP™ UHD2 72cv without Transducer
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The ECHOMAP UHD2 72cv brings a larger 7-inch keyed display to Garmin's acclaimed combined chartplotter and sonar platform, giving anglers more room to read mapping and sonar side by side. Built-in support for Garmin ClearVu and traditional CHIRP sonar delivers crisp, near-photographic detail of structure and fish below the boat, while the high-sensitivity GPS keeps you precisely positioned. Quickdraw Contours lets you create personal HD fishing maps as you go, and the unit is compatible with Garmin Navionics+ and Navionics Vision+ premium charts. Built-in Wi-Fi connects the chartplotter to the ActiveCaptain app for charts, smart notifications and software updates, while NMEA 2000 connectivity supports integration with sensors and engine data. The IPX7-rated housing handles spray and rain. This version ships without a transducer.
PRODUCT DETAILS
- 7-inch keyed (button) chartplotter with bright, sunlight-readable WVGA display
- Garmin ClearVu and traditional CHIRP sonar support (50/77/83/200 kHz) at 500 W RMS
- Built-in high-sensitivity GPS plus Quickdraw Contours personal HD mapping
- Built-in Wi-Fi pairs with the ActiveCaptain app for charts, alerts and updates
- Compatible with Garmin Navionics+ and Navionics Vision+ premium charts
- NMEA 2000 connectivity for sensors and engine data; IPX7 waterproof rating
- Supplied without a transducer so you can choose the model that suits your boat
- ECHOMAP UHD2 72cv chartplotter
- Tilt/swivel bail mount with knobs
- Flush-mount kit and hardware
- Protective sun cover
- Power cable
- Documentation
No exploded diagram available for this product.
No compatible transducers listed for this product.
No compatible products found.
Display
| Display size | 177.8 mm (7 in.) diagonal; 155.1 x 86.9 mm viewable |
| Display resolution | WVGA, 800 x 480 pixels |
| Control type | Keyed (button) control |
Physical
| Dimensions (W x H x D), chartplotter only | 232 x 143.1 x 67 mm |
| Weight | 0.68 kg (1.5 lb.) |
| Material | Polycarbonate plastic |
Electrical
| Input voltage | 9 to 18 Vdc |
| Fuse | 3 A, 125 V fast-acting |
| Max. power draw | 15 W |
| Typical current draw at 12 Vdc (RMS) | 1.1 A |
Sonar
| Sonar technology | Traditional CHIRP + Garmin ClearVu CHIRP (cv) |
| Sonar frequencies | Traditional: 50/200, 77/200, 83/200 kHz; Single Channel CHIRP: 40 to 250 kHz; Garmin ClearVu CHIRP: 260/455/800 kHz |
| Sonar transmit power (RMS) | 500 W (CHIRP and Garmin ClearVu CHIRP) |
| Sonar depth | 701 m (2,300 ft.) at 77 kHz |
Connectivity
| Wi-Fi | 2.4 GHz Wi-Fi (ActiveCaptain app connectivity) |
| NMEA 2000 | Yes |
| Memory card | 1 microSD card slot; up to 1 TB (exFAT) |
GPS/GNSS
| GPS | Built-in high-sensitivity GPS |
Environmental
| Water rating | IEC 60529 IPX7 |
| Temperature range | -15 to 55 C |
| Compass-safe distance | 12.7 cm (5 in.) |
General
| Mapping | Compatible with Garmin Navionics+ and Garmin Navionics Vision+ |
