Garmin

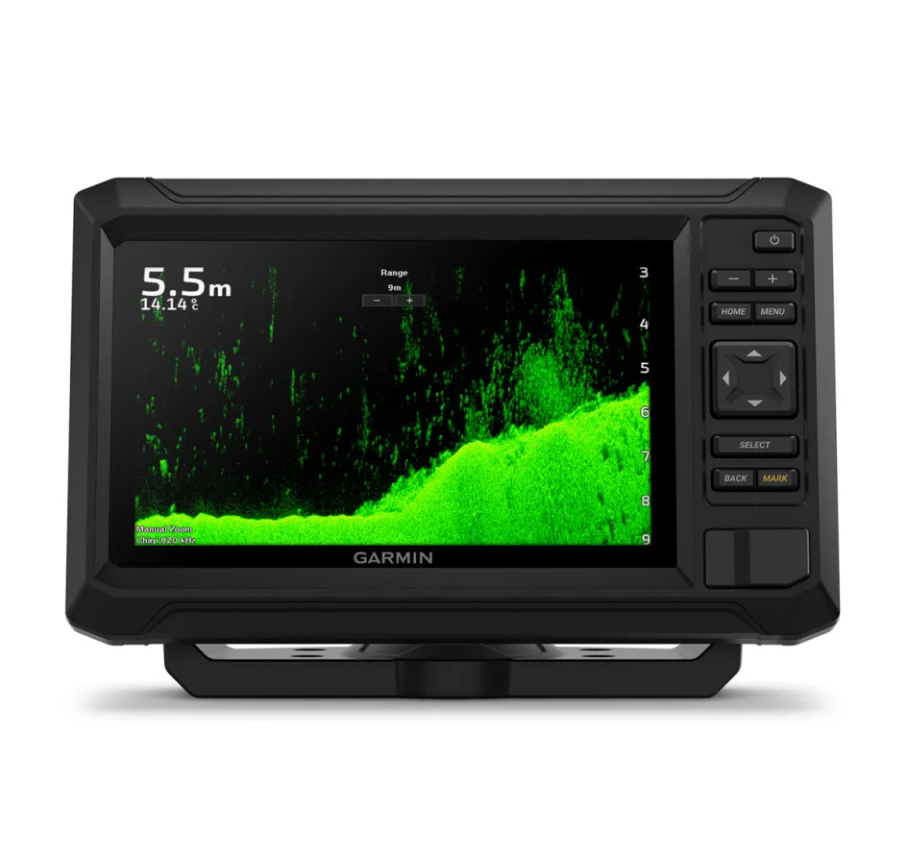

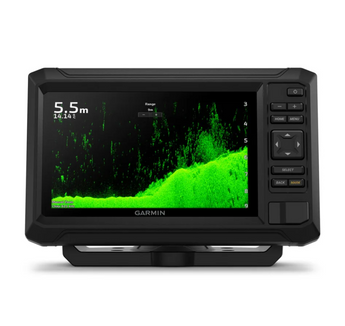

ECHOMAP™ UHD2 75cv, Without Transducer, UK/IE
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The ECHOMAP UHD2 75cv combines a generous 7-inch keyed display with Garmin Navionics+ charts for the United Kingdom and Ireland preloaded, so you can navigate familiar coastal and inland waters from the moment you switch on. Garmin ClearVu and traditional CHIRP sonar reveal near-photographic detail of structure and fish beneath the boat, while the high-sensitivity GPS keeps your position locked in. Quickdraw Contours lets you build personal HD fishing maps as you go, and built-in Wi-Fi connects the unit to the ActiveCaptain app for charts, smart notifications and software updates. NMEA 2000 connectivity supports integration with sensors and engine data, and the IPX7-rated housing handles spray and rain with ease. This version ships without a transducer, letting you fit the sonar transducer best matched to your boat.
PRODUCT DETAILS
- 7-inch keyed (button) chartplotter with bright, sunlight-readable WVGA display
- Preloaded Garmin Navionics+ charts for the United Kingdom and Ireland
- Garmin ClearVu and traditional CHIRP sonar support (50/77/83/200 kHz) at 500 W RMS
- Built-in high-sensitivity GPS plus Quickdraw Contours personal HD mapping
- Built-in Wi-Fi pairs with the ActiveCaptain app for charts, alerts and updates
- NMEA 2000 connectivity for sensors and engine data; IPX7 waterproof rating
- Supplied without a transducer so you can choose the model that suits your boat
- ECHOMAP UHD2 75cv chartplotter (Garmin Navionics+ UK/IE preloaded)
- Tilt/swivel bail mount with knobs
- Flush-mount kit and hardware
- Protective sun cover
- Power cable
- Documentation
No exploded diagram available for this product.
No compatible transducers listed for this product.
No compatible products found.
Display
| Display size | 177.8 mm (7 in.) diagonal; 155.1 x 86.9 mm viewable |
| Display resolution | WVGA, 800 x 480 pixels |
| Control type | Keyed (button) control |
Physical
| Dimensions (W x H x D), chartplotter only | 232 x 143.1 x 67 mm |
| Weight | 0.68 kg (1.5 lb.) |
| Material | Polycarbonate plastic |
Electrical
| Input voltage | 9 to 18 Vdc |
| Fuse | 3 A, 125 V fast-acting |
| Max. power draw | 15 W |
| Typical current draw at 12 Vdc (RMS) | 1.1 A |
Sonar
| Sonar technology | Traditional CHIRP + Garmin ClearVu CHIRP (cv) |
| Sonar frequencies | Traditional: 50/200, 77/200, 83/200 kHz; Single Channel CHIRP: 40 to 250 kHz; Garmin ClearVu CHIRP: 260/455/800 kHz |
| Sonar transmit power (RMS) | 500 W (CHIRP and Garmin ClearVu CHIRP) |
| Sonar depth | 701 m (2,300 ft.) at 77 kHz |
Connectivity
| Wi-Fi | 2.4 GHz Wi-Fi (ActiveCaptain app connectivity) |
| NMEA 2000 | Yes |
| Memory card | 1 microSD card slot; up to 1 TB (exFAT) |
GPS/GNSS
| GPS | Built-in high-sensitivity GPS |
Environmental
| Water rating | IEC 60529 IPX7 |
| Temperature range | -15 to 55 C |
| Compass-safe distance | 12.7 cm (5 in.) |
General
| Preloaded mapping | Garmin Navionics+ UK and Ireland |
