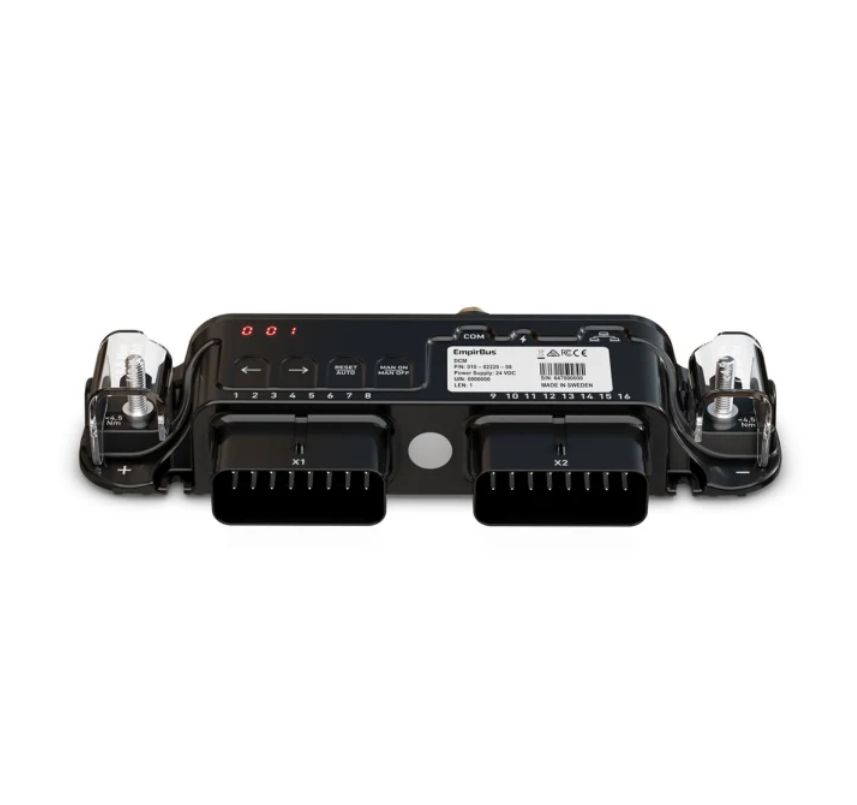

EmpirBus™ NXT DCM
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The EmpirBus NXT DCM (DC Module) is the workhorse of an EmpirBus NXT digital switching installation, connecting directly to the main DC power and turning network commands into real electrical outputs. Each module carries 16 universal, user-configurable bi-directional channels wired through two Molex MX150L connectors, so a single compact unit can both drive loads and read inputs.
Every output is electronically protected with programmable fuse sizing, under-current detection and soft start/stop, and can dim or sequence complex loads such as LED lighting and windscreen wipers directly. High-side and low-side switching simplify wiring, while channels may be paralleled for higher current. Configured as inputs, channels accept volt-free switches, multiplexed switches and analogue voltage, current or resistance signals. Communicating over CAN-bus NMEA 2000, the DCM lets the EmpirBus system replace conventional fuse boards and switch panels with intelligent, monitored control.
PRODUCT DETAILS
- 16 universal user-configurable bi-directional (I/O) channels
- High-side outputs: 4 channels at 18 A and 12 channels at 10 A
- Low-side outputs: 16 channels at 0.5 A
- Electronic over-current protection, under-current detection and programmable fuse sizing
- Soft start/stop, dimming, lighting effects and wiper control
- Analogue inputs for voltage, current and resistance sensors
- CAN-bus NMEA 2000 communication with DC reverse-polarity protection
- Rugged IP65 enclosure rated -20 C to +55 C
- EmpirBus NXT DCM (DC Module)
- Documentation
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Module/Switching
| Channels | 16 universal user-configurable bi-directional (I/O) channels |
| High-side outputs | 4 ch at 18 A; 12 ch at 10 A (optional) |
| Low-side outputs | 16 ch at 0.5 A |
| Output protection | Electronic over-current protection and under-current detection, programmable fuse size, soft start/stop, dimming |
| Wiper control | Yes, with parking, interval and multiple speed |
| Analogue inputs | Voltage 0-16 V/0-32 V +/-1%; current 4-20 mA +/-1%; resistance 0-1500 ohm +/-5% |
Electrical
| Supply voltage | 9-16 V DC (12 V) / 9-32 V DC (24 V) |
| Maximum current | 100 A |
| Reverse polarity protection | Yes (DC reverse polarity protection) |
Connectivity
| Communication | CAN-bus NMEA 2000 |
| NMEA 2000 connector | Micro 5-pin M12 male |
| Channel connectors | 2 x Molex MX150L 16-circuit |
| Power connection | M6 stainless steel studs |
| Antenna connector | SMA female (EnOcean antenna) |
Physical
| Dimensions | 230 x 106 x 38 mm |
| Weight | 0.4 kg |
Environmental
| Water rating | IP65 |
| Operating temperature | -20 C to +55 C |
General
| Standards | ABYC, RoHS, CE, RCM |
| System | EmpirBus NXT digital switching |
