EmpirBus™ WDU v2 EmpirBus™ WDU v2
EmpirBus™ WDU v2

Garmin

EmpirBus™ WDU v2

£430.00
Tax included. Shipping calculated at checkout.
010-02642-00
The EmpirBus WDU v2 is a web server unit that distributes rich, customised HTML5 graphics to compatible Garmin chartplotters, giving any EmpirBus system a fully tailored control and monitoring interface.
✓ Collection or delivery in 1-2 weeks

Pickup available at Mercury Yacht Harbour

Usually ready in 2-4 days

Description

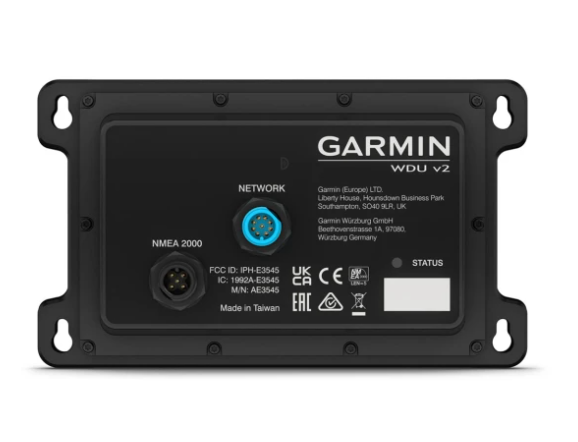

The EmpirBus WDU v2 is a web display unit that turns an EmpirBus digital switching system into a fully customised graphical interface. It serves rich, bespoke HTML5 graphics to compatible Garmin GPSMAP chartplotters and other HTML5 devices, so the vessel's switching, monitoring and control screens can be designed to match the boat exactly rather than relying on a generic layout.

Graphics and HTML pages are created with the web-based EmpirBus graphics application and uploaded to the unit over the Garmin Marine Network or Wi-Fi. The WDU v2 connects to both the NMEA 2000 network and a Garmin chartplotter through the Garmin Marine Network, working at Ethernet speeds, and draws its power directly from the NMEA 2000 network with no dedicated power connection required. Optional Wi-Fi provides a wireless route for configuration and access.

PRODUCT DETAILS

  • Web server unit serving customised HTML5 graphics to compatible chartplotters
  • Fully tailored switching, monitoring and control interface for any EmpirBus system
  • Graphics created with the web-based EmpirBus graphics application
  • Connects to NMEA 2000 and to a Garmin chartplotter via the Garmin Marine Network
  • Works at Ethernet speeds for graphics distribution
  • Optional Wi-Fi for wireless configuration and access
  • Powered by the NMEA 2000 network, no dedicated power connection required
  • EmpirBus WDU v2
  • Mounting screws
  • Documentation

No exploded diagram available for this product.

No compatible transducers listed for this product.

No spares or accessories listed for this product.

No compatible products found.

Module/Switching

RoleWeb server unit (web display unit) that distributes rich, customised HTML5 graphics to compatible Garmin chartplotters and HTML5 devices
GraphicsHTML graphics created and configured with the web-based EmpirBus graphics application and uploaded to the unit

Connectivity

CommunicationNMEA 2000 network and Garmin Marine Network (Ethernet)
Wi-FiOptional Wi-Fi connection (disabled by default)

Electrical

PowerPowered by the NMEA 2000 network; no dedicated power connection required

Physical

Weight0.82 kg

General

SystemEmpirBus digital switching
What does the WDU v2 do?
The WDU v2 is a web server unit that distributes rich, customised HTML5 graphics to compatible Garmin chartplotters, giving an EmpirBus system a fully tailored switching, monitoring and control interface.
How are the graphics created and loaded?
Graphics and HTML pages are built with the web-based EmpirBus graphics application and uploaded to the WDU v2 over the Garmin Marine Network or a Wi-Fi connection.
How is the WDU v2 connected and powered?
It connects to both the NMEA 2000 network and a Garmin chartplotter through the Garmin Marine Network, and it is powered directly by the NMEA 2000 network, so no dedicated power connection is required.
Does the WDU v2 support Wi-Fi?
Yes. The unit has an optional Wi-Fi connection, disabled by default, which can be enabled for wireless configuration and access when a Wi-Fi connection to the chartplotter is unavailable.
