Furuno

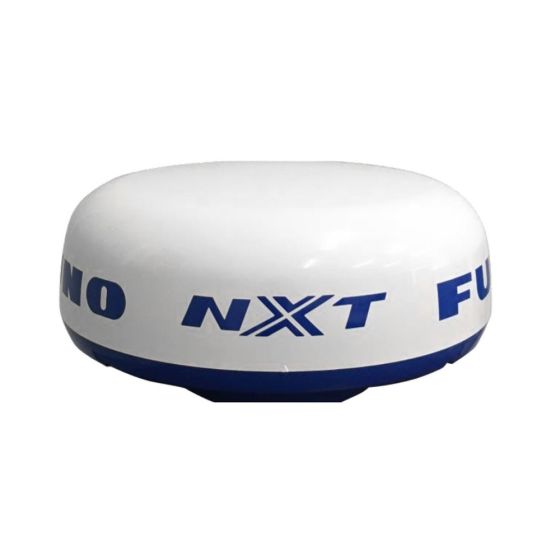

Furuno DRS2D-NXT 19" Doppler Radome
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Furuno DRS2D-NXT is a 19 inch solid-state Doppler radome that packs advanced radar processing into Furuno's most compact NXT dome. Solid-state transmission means dependable performance with low power consumption and no magnetron to warm up or replace.
Doppler-based Target Analyzer automatically colours echoes by their motion, turning approaching targets red and leaving stationary or receding targets green so potential hazards are obvious at a glance. Fast Target Tracking delivers vectors within seconds of selecting a target, and the Auto Target Acquire function automatically picks up approaching contacts within three nautical miles.
Combined with Furuno's RezBoost beam-sharpening technology, the DRS2D-NXT offers the detection and resolution of a larger radar from a neat 19 inch dome, making it well suited to smaller craft and vessels where mounting space is limited.
PRODUCT DETAILS
- Solid-state Doppler radar in a compact 19 inch radome
- Target Analyzer colours approaching targets red and stationary targets green
- Fast Target Tracking gives target vectors within seconds
- Auto Target Acquire flags approaching targets within 3 NM
- RezBoost beam sharpening for enhanced resolution
- Low power consumption with no magnetron to replace
- 48 NM maximum range
No exploded diagram available for this product.
No compatible transducers listed for this product.
No compatible products found.
General
| Type | Solid-state Doppler radar (radome) |
| Antenna size | 19 inch radome |
Performance
| Peak power output | 25 W |
| Maximum range | 48 NM |
| Beam width | 5.2 degrees horizontal, 25 degrees vertical |
| Antenna rotation speed | 24 / 36 / 48 rpm |
Electrical
| Power input | 12 / 24 VDC |
Physical
| Weight | 6.5 kg |
