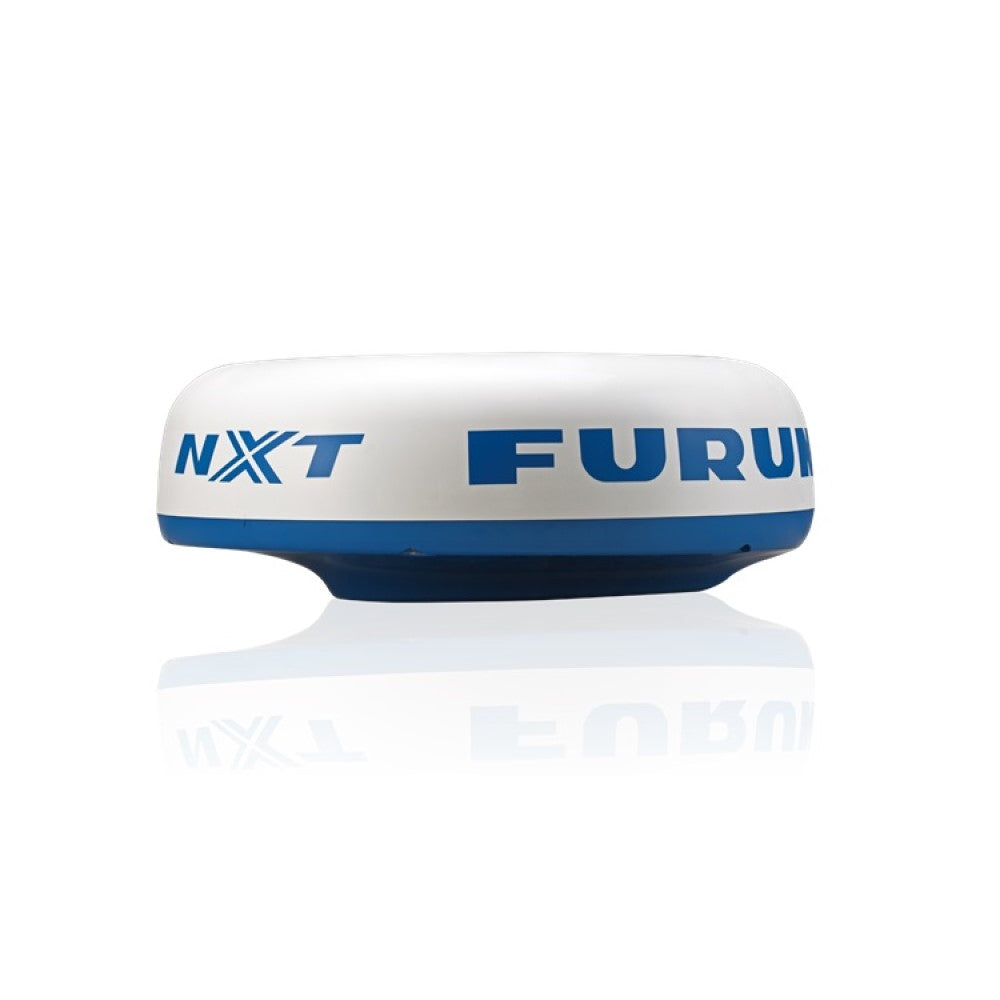

Furuno DRS4D-NXT 24" Radome
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Furuno DRS4D-NXT is a 24 inch solid-state Doppler radome that redefines what a compact dome radar can do. Using pulse-compression solid-state transmission, it delivers strong target detection with very low power consumption and none of the warm-up or magnetron replacement associated with traditional radar.
Its standout feature is Target Analyzer, which uses Doppler processing to automatically colour echoes by their movement: targets closing on your vessel turn red while stationary or receding targets stay green, so hazards stand out at a glance. Fast Target Tracking gives near-instant vectors on selected targets, and the Auto Target Acquire function automatically flags approaching contacts within three nautical miles.
Furuno's exclusive RezBoost beam sharpening tightens the beam for crisp, high-resolution images, while Bird Mode helps locate feeding birds over fish. The result is the situational awareness of a much larger radar in a neat 24 inch dome.
PRODUCT DETAILS
- Solid-state pulse-compression radar with no magnetron and minimal power draw
- Target Analyzer colours approaching targets red and stationary targets green using Doppler
- Fast Target Tracking gives near-instant target vectors
- Auto Target Acquire flags approaching targets within 3 NM
- RezBoost beam sharpening for high-resolution imaging
- Bird Mode aids location of feeding birds over fish
- Compact 24 inch radome, 36 NM maximum range
No exploded diagram available for this product.
No compatible transducers listed for this product.
No compatible products found.
General
| Type | Solid-state Doppler radar (radome) |
| Antenna size | 24 inch radome |
Performance
| Peak power output | 25 W |
| Maximum range | 36 NM |
| Horizontal beam width | 3.9 degrees |
| Antenna rotation speed | 24 / 36 / 48 rpm |
Electrical
| Power input | 12 / 24 VDC |
Physical
| Weight | 7.3 kg |
